With the Handicap Door Pull 19 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Constructed of cast aluminum or cast brass and plated to the desired finish.  The overall length is 8-3/4", the bases are 1-1/2" x 1-5/8", and it projects 3-1/4".   Shipped with screws. Also known as a Double Arm Pull, Handicap Grip, ADA Door Pull or Handle.

The Anodized Black Aluminum Door Kick Plate 315AN are a flat black and match the black color we find on Storefront doors.  These plates have an aluminum base metal, which is 18 gauge (.040") thick that is then Anodized in the Black Color.  These plates relatively inexpensive.  Custom sizes are available, they run about $0.25 per square inch.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended.  Stainless Steel plates are too heavy and they most likely will not stick.  We can also ship them with no holes, if you want to drill your own holes.  This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended.   You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

The 524T has 1-1/4 inch diameter by 2-1/2 inches tall. It is constructed of brass and then powder coated flat black or brushed chrome plated. This stop ships with a lead anchor, 12-24 x 1 inch machine screw, #12 x 1-1/2 inch SMS with plastic anchor.

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

The Handicap ADA Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

The offset door pull 44 is 5 inches by 12 inches.  It offers a 2 inch clearance with a 2-1/8 inch projection.  The mounting holes are 10 inches on centers.  The base block is 1 inch by 12 inches.

The Door Pull Handle 10 has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

The Door Pull 25 is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. The handle has a 2-3/8" projection from the door, and 1-5/8" clearance from the door to the back of the handle.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The Burns 617 Non-Locking Pocket Door Pull Set is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

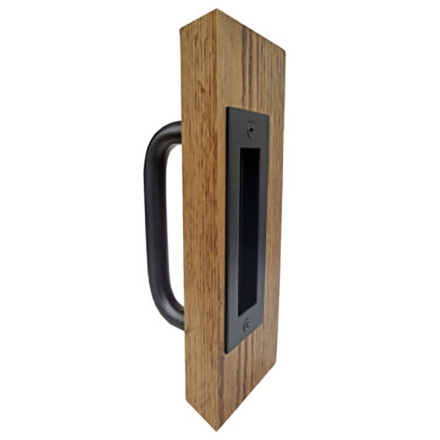

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Door Pull 26 is made of 1" round stock in either solid, aluminum, brass or stainless steel. The handle has a projection of 2-3/4", and clearance of 1-3/4". It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

Finishes

8" GDP810
10" GDP101
12" GDP121

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel.  The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection.  This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle.  This handle is available in 8", 10", 12" and 18" centers on the mounting holes.  If you have a 9" centered handle use the PH-4000.   It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.1" diameter material

The Door Pull Offset 3/4" Diameter #29 is constructed of either solid, Aluminum, Brass or Stainless Steel. The handle 3/4" diameter tubing with a 2-1/2" projection and 2-1/2" offset.  We find these on narrow stile aluminum framed glass storefront doors.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

Automatic Floor Type Holder and Stop

A replacement holder and stop that has been around for many years.   This style of Holder can be found in many of the schools, churches and hospitals that were built in the 1960's and 1970's.  Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.  Designed for doors with a door to floor clearance of less than a 1/2".

Solid offset door pull 1-1/4 inch diameter round stock.  Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Door Push Plate 62 is constructed of 16 guage (.050") thick aluminum, stainless steel, brass or bronze depending on your finish.  They measure 7-1/2" by 15" tall.  This plate is handed left and right, the one shown on the website is a Left Hand.  Plate comes with matching finish mounting screws.

Finishes

Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.

Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Plunger Type Door Holder / Stop 583 is constructed of solid cast brass, that is then plated to the desired finish.  It measures 5-3/8" by 2-1/4" base with a 1-1/4" projection.   The throw is 1-1/4".   These are sometimes called pop-up or push down stops.   This piece will ship with matching finish mounting screws.

The Door Push Plate 61 is constructed of 16 gauge stainless steel, aluminum, brass or bronze.  This plate is handed left and right, the one shown on the website is a Left Hand plate.  They measure 7-1/2" wide by 15" long, and ships with the matching finish mounting screws.

Finishes

The Door Pull Plate 5026 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE26 has 8" centers and is constructed of solid aluminum, brass or stainless steel, and is 1" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.

Finishes

The Door Push Plate 60 has the classic half round design.  The plate measure 8" wide and 16" tall, and is constructed of 16 gauge metal, which is .050" thick.  This plate is similar to the GPH59 (Push Plate 59), but is a 1/2" wider and 1" taller.  This plate ships with the matching finish screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Door Push Plate 58 is the only plate we have that is a forged plate.  The forging process involves heat and pressure or pounding.  The result is a very heavy and durable metal.  This plate measures 3-1/2" wide by 15" tall, with a thickness of 7/32".  This is one of the thickest plate we offer, and is the most sturdy.

Finishes

The Door Push Plate 59 has the classic half round design.  The plate measure 7-1/2" wide and 15" tall, and is constructed of 16 gauge metal, which is .050" thick.  This plate is similar to the GPH60 (Push Plate 59), but is a 1/2" more narrow and 1" shorter.  This plate ships with the matching finish screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Door Pull Plate 5010 is .050" wought solid aluminum, stainless steel, or brass depending on the finish. The Door Pull GHE10, handles come with thru bolts. The plate has counter sunk holes and sheet metal screws in matching finish.

Finishes

3" x 12" GPL312
3.5" x 15" GPL315
4" x 16" GPL416

Push Plate Plastic 90

1/8" thickness plastic

Floor Door Stop / Holder 536

The Stop and Holder 536 is considered a manual door holder.   It is a manual door holder because you have to physically bend over and hook and unhook the holder.  This holder is constructed cast brass or cast bronze and then plated to your desired finish.  The stop measures 2-1/2" in diameter and 3-7/8" overall height, with a center line height of 2-1/2" from the base to the center of the rubber stop.  It ships with all of the fasteners.

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

The Door Pull Plate 5025 is a solid .050" wought plate of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE25 has 6" centers and is constructed of solid aluminum, brass or stainless steel, and is 3/4" in diameter, handles come with thru bolts. The plate come predrilled with counter sunk holes and sheet metal screws in matching finiish.  This is one of our most popular plates sold.

Finishes

The Push Bar w/Handle 422X26 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Wall Door Holder/Stop 531 features cast brass or bronze finish which is then plated to the desired finish.  This is considered a manually operated door holder, because it does not latch automatically.  It features a 2-1/2" base with 3-5/8" projection, and ships complete with all of the needed fasteners.
