Flush Bolts

Most often used on French doors, flush bolts are great for any door or entryway where you need to keep the flow of traffic under control. With these flush bolts, you can ensure that one of your double doors always stays closed, keeping foot traffic predictable, manageable and safe. Simply installing flush bolts at the top and bottom of both doors allows you to choose how people move in and out of your building. Call us today to get your order started and to speak with a member of our friendly and knowledgeable sales team.

View as Grid List

9 Items

per page
Set Descending Direction
  1. Ives FB40 Automatic Flush Bolt

    Wood Door Automatic Flush Bolt FB40

    H.B. Ives FB40 Series are sold has Top, Bottom or in Pairs (top and bottom). Fully automatic, inactive door is latched when active door closes, bolts retract when active door is opened. Top Bolt has no spring tension. They are non handed, but the top and bottom bolts are different. The body size is 1" wide, 8-1/2" tall and 2" deep, the bolts have a 3/4" throw with a 7/8" vertical adjustment.

    Ives Part #'s
    FB41P - Pairs
    FB41T - Top
    FB41B - Bottom

    Plated Door Finishes

    FB40
    As low as $105.70
  2. Ives FB61P Constant Latching Flush Bolt for Wood Doors

    Ives FB61P Constant Latching Flush Bolt for Wood Doors

    The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

    90 minute UL Rated.

    Ives Part # FB61P

    Plated Door Finishes

    FB61P-
    As low as $179.70
  3. Ives FB31P Automatic Flush Bolt

    Ives FB31P Automatic Flush Bolt

    This fully automatic flush bolt is used on the inactive metal fire door.  When the active door is opened the latches retract, when the active door closes the latches extend.  The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

    Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set includes the top and bottom flush bolts.

    3 Hour UL listed

    Ives Part # FB31P

    Plated Door Finishes

    FB31P-
    As low as $195.14
  4. Ives FB458 Metal Door Flush Bolt

    Ives FB458 Metal Door Flush Bolt

    The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

    Ives Part # FB458

    Plated Door Finishes

    FB458-
    As low as $26.02

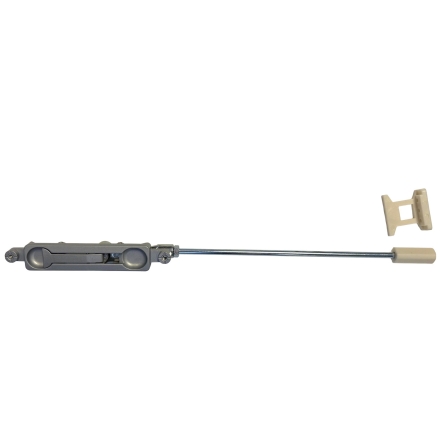

  5. International Door Closer FB-1202 Flush Bolt

    Aluminum Store Front Door Flush Bolt FB-1202

    15/16" x 4-1/4" radius face, 5-7/32" hole spacing, 1/8" offset, 5/8" throw, 12" rod length, with a square nylon tip with beveled corners fits in a 1/2" square hole.

    FB-2202-
    As low as $18.07
  6. International FG-1200 Flushbolt Guide

    The International FG-1200 Flushbolt Guide is the piece that fits into the top or bottom of the door and acts as a guide for the Flushbolt Rod.  The piece measures 1-3/8" x 1-1/2".  The square hole in the piece is a 1/2" square.  The manufacture part number is FG-1200.

    FG1200
    $2.26
  7. Ives Surface Bolt 8" SB453

    The Ives Surface Bolt 8" SB453 has a 1-3/16" throw.  The bar has a cross section measurement of 3/4" wide by 1/4" thick.  It features a strong tension springs to prevent the bolt from creeping.  The bolt is shipped with all of the fasteners and a universal top and a standard mortise strike.  It is constructed of heavy duty steel that is then cadmium plated.

    Ives part # SB453-8-TB-2C

    GSB82C
    $45.19
  8. Dust Proof Strike DP2

    • Designed for use with the bottom bolt of all flush bolts.
    • Spring-loaded plunger returns to floor or threshold level anytime
    flush bolt is retracted, eliminating need to clean standard
    floor strikes.
    • Strike hole is 3/4" Diameter and 1-1/8" Deep


    DP2 Face Plate: 1-5/8" W x 3-1/2" L x 1/8" Thick
    Body: 1-3/16" Diameter x 1-7/8" Deep

    Plated Door Finishes

    DP2-
    As low as $34.89
  9. Ives Dust Proof Strike DP1

    Ives Dust Proof Strike DP1

    • Designed for use with the bottom bolt of all flush bolts.
    • Spring-loaded plunger returns to floor or threshold level anytime
    flush bolt is retracted, eliminating need to clean standard
    floor strikes.
    • Strike hole is 3/4" Diameter and 1-1/8" Deep

    DP1 Face Plate: 1-7/16" Diameter
    Body: 1-3/16" Diameter x 1-7/8" Deep

    Plated Door Finishes

    DP1-
    As low as $27.91
