Sargent Panic Devices

Sargent panic devices and Sargent panic hardware have been on the market for at least 50 years, but Sargent Manufacturing Company initially made its start in the hardware industry more than 150 years ago. They currently manufacture devices and parts for single and double doors, in either rim, surface vertical rod, mortise or concealed vertical versions.

You’ve stumbled upon the perfect place to order Sargent exit devices, Sargent exit device trims, and Sargent panic hardware for the commercial doors you are currently in the process of working on. Our web store contains two whole pages of Sargent exit devices and Sargent exit devices parts, so go ahead and start browsing. We are sure that you will come across the Sargent exit devices and hardware you were searching for.

Shipping Sargent Panic Devices

Most Sargent panic devices parts are in stock in our warehouse and will ship within 24 hours.  Factory orders include Sargent panic devices that require special finishes, sizing, and Sargent panic device parts. These custom-built Sargent panic devices and Sargent panic device parts can take up to 5 weeks to ship.

Sargent Exit Device Series

Sargent 20 Series – The 20 Series Sargent panic device is their economy line device. It comes in two styles, the 2828 Sargent rim exit device and the 2727 surface vertical rod device. Both panic device units are Grade 1 and feature a powder coated finish instead of the usually plated finish.

Sargent 30 Series – The 30 Series is another economy line panic device. These Sargent panic devices also come in two styles, the 3828 Sargent rim exit device and the 3727 surface vertical rod device. The 30 series features a powder coat paint finish and are Grade 1 rated devices.

Sargent 60 Series – The 60 Series was in production from the 1970’s until January 1990. The main difference between the Sargent 60 Series and the Sargent Exit Devices 80 Series is the push pad. On the 60 Series Sargent panic device, the push pad goes all the way across the device, whereas the Sargent Exit Devices 80 Series only covers two thirds of the push bar channel. Many of the parts are the same as the 20, 30 and Sargent Exit Devices 80 Series.  You might want to contact us on the parts that will cross over.

Sargent 80 Series – The Sargent Exit Devices 80 Series is currently their flagship panic device and is very popular in the industry today. The Sargent Exit Devices 80 Series is a heavy-duty device that offers many plated finishes to fit most design criteria. Call or email RBADoor.com for part breakdowns, detailed instructions and templates for the Sargent Exit Devices 80 Series.

Sargent 90 Series – The 90 Series Sargent exit devices are their cross bar style panic hardware. This Sargent panic device has been in production since the 1980’s and has changed very little. Most of the complete devices are now a factory order, but most parts are on the shelf.

Sargent Panic Hardware

Don’t forget about our supply of Sargent exit devices parts. This is the hardware you will need when making repairs to your current Sargent exit devices.

Our extensive Sargent exit devices parts list consists of surface strikes, spindles, return springs, latch bolt springs, end caps, brackets, push bar pins and tons more. The replacement Sargent exit devices parts that you are seeking are only a click away.

Plus, choose from several styles of Sargent exit device trims. We carry the Sargent 20 Series Knob Trim, the Sargent 20 Series Night Latch Trim, the Sargent 20 Series Lever Trim, the Sargent 20 Series Dummy Trim and the Sargent 80 Series Lever Trim. The Sargent 80 Series Lever Trim product page features a chart with complete mechanism details.

Feel free to continue to browse this website in order to locate the Sargent exit device trims and other Sargent exit devices parts for your commercial door project. Pick the color and size of your choosing, add to cart, head to check out to make the purchase and you will be all set with your order.

Sargent Exit Devices Manufacturing Company

Sargent Manufacturing Company was originally founded in 1857 by the Sargent brothers. Their factory started off in New Britain, Connecticut but was later moved to New Haven, CT in 1864.

In its many years of business, Sargent has grown to manufacture well over 60,000 products. It is now one of the largest hardware factories in the U.S. Sargent was acquired by ASSA ABLOY Door Security Solutions in 1996.

Sargent Lock specializes in bored locks, mortise locks, exit devices and door controls. The Sargent exit devices manufacturer continues to produce new and original product designs. The company’s latest developments have come with the integration of electro-mechanical products.

Sargent Panic Devices Online Orders

Place your online order of Sargent panic devices, Sargent exit device trims and Sargent exit devices parts with us today. We will happily help you with your online order if you wish.

Call us on our office phone at 1 (800) 642-2403 during business hours during the week. If you come up with important questions about Sargent exit devices during the weekend, email Sales@RobertBrooke.com so we can reach you at our earliest convenience.

Allow us to provide you with ample guidance while ordering your mortise, surface and concealed, and Sargent rim exit devices from our online store. Our experts are here to make the buying process flow as smoothly as it possibly can.

View as Grid List

Items 1-36 of 42

per page
Set Descending Direction
Page
  1. Sargent 646 Surface Strike

    The Sargent 646 Surface Strike is used on the 20, 30 and 80 Series Surface Vertical Rod Panic Hardware and Fire Rated Hardware.  It is used as a strike for the top latch. The strike measures 1-5/32" x 3-11/16"  with a 3/4" projection.   Strike features a black coated epoxy finish.

    Sargent Part #646

    G646
    $96.02

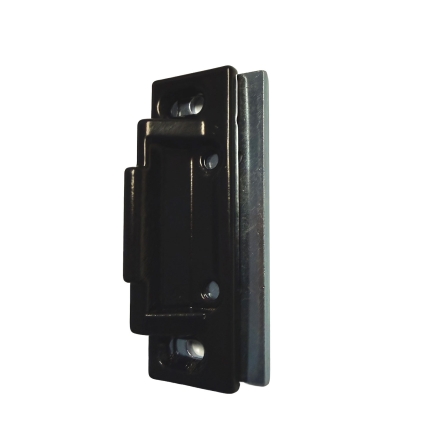

  2. Sargent 649 Surface Strike

    The Sargent 649 Surface Strike is used on the 20, 30, 60 and 90 Series Rim Panic Hardware.  The Strike measures 1-5/32" x 3-11/16"  with a 3/4" projection.   Strike features a black coated epoxy finish.

    Sargent Part #649

    649
    $96.02
  3. Sargent 624 Bottom Surface Strike

    The Sargent 624 Bottom Surface Strike is used on the 20, 30, 60, 80 and 90 Series Surface Vertical Rod Panic Hardware.  The Strike is mounted on the floor and the bottom latch locks on to it.   Strike measures 9/16" x 2-1/2" with a 3/8" projection.   Strike features a black coated epoxy.

    Sargent Part #624

    G624
    $69.58
  4. Sargent 655 Bottom Surface Strike

    The Sargent 655 Bottom Surface Strike is for use the 20, 30, 80 and 90 Series Surface Vertical Rod Panic Hardware.  The Strike measures 1-13/16" x 2-3/4" x 3/32" thick.

    Sargent Part #655

    G655
    $40.36
  5. Sargent 8700 Panic Device

    For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
    minimum stile with trim and 3-1/2"
    Mounting Supplied standard with wood and machine screws
    Chassis Cover Cold drawn brass, bronze or stainless steel
    Chassis Nonferrous alloy
    Hand Handed. Specify RHRB or LHRB
    Dogging Feature Allen-type dogging furnished standard.
    Top and Bottom Bolts Brass, stainless steel

    exit device handing diagram

    8700EO
    As low as $1,559.17
  6. Sargent 8800 Series Rim Panic Device 8888

    For Doors Wood or metal. 1-3/4"(44mm) and 2-1/4" (57mm) thick
    Mounting Supplied standard with wood and machine screws
    Chassis Cover Cold drawn brass, bronze or stainless steel
    Chassis Nonferrous alloy
    Hand Non-handed

    G80EO
    As low as $1,338.35
  7. Sargent 9898 Rim Panic Device

    For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
    4 1/8" (105mm) miminum stile
    Mounting Supplied standard with wood and machine screws.
    Chassis Cover Brass, bronze or stainless steel
    Chassis Nonferrous alloy
    Crossbar 1" brass, bronze and stainless steel tubing.
    Hand Reversible
    Dogging Standard Allen key dogging

    G90EO-
    As low as $1,868.90
  8. Sargent 2727 Panic Device

    Simplicity
    • Engineered with minimum components and maintenance-free
    • Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
    • Retrofits to all applications
    • One chassis design to accept all available functions/trims
    Durability
    • Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
    • Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
    • Non-handed rim; reversible vertical rod
    • Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
    • Three year warranty

    exit device handing diagram

    2727EO-
    As low as $1,193.91
  9. Sargent 2828 Series Rim Panic Device

    Simplicity
    • Engineered with minimum components and maintenance-free
    • Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
    • Retrofits to all applications
    • One chassis design to accept all available functions/trims
    Durability
    • Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
    • Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
    • Non-handed rim; reversible vertical rod
    • Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
    • Three year warranty

    G20EO-
    As low as $670.70
  10. Sargent 3828 Series Panic Device

    Sargent 3828 Series Exit Device

    The 3828 is a rugged exit device in a rim design. The 3828 Non Configured Rim Exit Device has 7 functions, 4 available trims and is easy to mix and match the device and trim. Aluminum finish only.

    G30EO
    $479.02
  11. Sargent 20 Series Night Latch Trim

    • For 1-3/4" (44mm) doors standard
    • Through-bolted with 3 mortise nuts
    • Pulls project 1-1/2" (38mm) from door face
    • GTB Design trim will cover a 161 cutout

    28-K-HTB-
    As low as $64.70
  12. Sargent 20 Series Dummy Trim

    • For 1-3/4" (44mm) doors standard
    • Through-bolted with 3 mortise nuts
    • Pulls project 1-1/2" (38mm) from door face
    • GTB Design trim will cover a 161 cutout

    28-D-GTB-
    As low as $64.70
  13. Sargent 20/30/60/80 Dogging Kit 68-2596

    The Sargent 20/30/60/80 Dogging Kit 68-2596 is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Panic Hardware. This dogging assembly kit has been around since the 1980's.  We only sell the dogging assembly parts as a complete set.

    Sargent part # 68-2596

    G80200
  14. Sargent 60/80 Push Bar Pins 68-0230

    Sargent 60/80 Push Bar Pins-Long Pin

    Also known as the channel axle or pin. This is the pin you see on the exit device channel, the wider of the two pins.

    2-3/16" LONG

    Sargent part # 68-0230

    G680230
    $33.40
  15. Sargent 60/80 Push Bar Pins 68-0229

    Sargent 60/80 Push Bar Pins-Short Pin

    Also known as the push bar axle, this is the pin that you see on the push pad.

    1-9/16" LONG

    Sargent part # 68-0229

    G680229
    $33.40
  16. Sargent 60/80 Push Bar Pin Retaining Clip

    Sargent 60/80 Push Bar Pin Retaining Clip

    used on Sargent 60 and 80 series to retain the push bar and channel axles. Use with the 68-0229 and 68-0230.

    Sargent part # 01-0098

    G010098
    $1.40
  17. Sargent Lever Return Spring 97-0425

    The Sargent Lever Return Spring 97-0425 is usually a green color, however we have seen them in blue and red.  The red spring has the same dimensions as the green, but the loop on the coil side of the spring was closed.  Sargent is using this spring as a replacement for all of those springs.  If you have a Sargent Panic Hardware, and the lever is sagging, or just hanging, this is most likely the problem.  The spring measures 2-1/8" long  by roughly 3/8" diameter.

    Sargent part # 97-0425

    G970425
  18. Sargent 20/30/60/80 Connecting Arm Spring

    The Sargent 20/30/60/80 Connecting Arm Spring is the spring that pushes the touch pad back out after you push it in.   It is used on the 20, 30, 60 and 80 Series Panic Hardware.

    Sargent part # 68-0236

    G20200
    $8.35
  19. Sargent 80 Series Plastic End Cap Only

    Sargent Exit Device 80 Series Plastic End Cap

    This part is the weak link in this exit device. When the end cap falls off the Dogging Cover Plate falls out also! The end cap is 1-1/8" wide by 2-7/16" tall and projects out 1-7/8".

    Sargent Part # 68-0561

    G80300C
    $27.14
  20. Sargent 80 Series Lexan Touch Bar Kit 809

    Sargent 80 Series Lexan Touch Pad Kit

    Sargent 80 series Lexan Touch Pad Kit replaces old and or broken touch pad inserts. On the Sargent part break downs this would be Touch Bar part number 68-0607 and Base 68-0606. The base is 13-1/2" long with 3 mounting holes 4" apart on center.

    Sargent Part # 809 KIT

    G80500
    $50.09
  21. Sargent 80 Series Metal End Cap And Bracket 565

    Sargent Exit Device 80 Series Metal End Cap And Bracket

    Use this end cap to replace all older versions and plastic end caps. It is much stronger then the orginals, more impact resistant.

    sargent part # 565

    G80300SS-
    As low as $68.19
  22. Sargent Exit Device 80 Series Plastic End Cap And Bracket

    Sargent Exit Device 80 Series Plastic End Cap And Bracket

    includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

    Used on the Sargent 80 Series Exit Devices

    Part #'s 68-0561, 68-0511 and 97-0052

    G80300
    $65.41
  23. Sargent 80 Series End Cap Bracket

    Sargent Exit Device 80 Series Bracket

    Used on to hold exit device on door, plastic end cap mounts to it.

    Sargent part # 68-0511

    G80300B
    $41.75
  24. Sargent 700 ET Spindle Kit 730-7

    Sargent 700 ET Spindle Kit 730-7

    This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit.

    Sargent Part # 730-7

    G7307
    $58.44
  25. Sargent 97-0300 8700 Top Latch Spring

    Sargent 97-0300 8700 Top Latch Spring

    The Sargent 97-0300 8700 Top Latch Spring is used on most of the new and older style Sargent Panic Devices.   The springs measures 1-5/8" overall length.

    Sargent Part # 97-0300

    G970300
    $19.48
  26. Sargent 97-3230 Cylinder Dogging Assembly

    Sargent 97-3230 Cylinder Dogging Assembly

    The Sargent 816 Cylinder Dogging Assembly, also known as the 97-3230, includes the cam that the cylinder dogging tends to wear out.

    Sargent Part # 97-3230

    G973230
    $44.53
  27. Sargent 97-0050 Knob Return Spring

    Sargent 97-0050 Knob Return Spring

    This Sargent Knob Return Spring measures 1-1/16" overall length by 3/16" diameter

    Sargent Part # 97-0050

    G970050
    $4.18
  28. Sargent 20/60 Plastic End Cap Only 68-0434

    The Sargent 20/60 Plastic End Cap Only 68-0434 will also work on the 30 Series Panic Hardware.   The cap has been manufactured for the last 40 years and is made of high impact plastic.  The end cap measures 1-5/8" wide by 2-3/8" tall and projects out 2-3/4".

    Sargent Part # 68-0434

    G20300C
    $31.48
  29. Sargent Exit Device 20/30/60 End Cap And Bracket

    The Sargent Exit Device 20/30/60 End Cap And Bracket is a part we put together here for your convenience.  Sargent only sells these components separately.  Usually only the cap goes missing, but every once and while the bracket goes missing also.  The package is used on the all of the 20, 30 and obsolete 60 series devices.

    Sargent Part # 68-0434, 68-2141, and 97-0052

    G20300
    $72.58
  30. Sargent 20/30/60 End Cap Bracket

    The Sargent 20/30/60  End Cap Bracket is used with the larger end cap.  This end cap has been manufactured for the last 40 years and started its life on the obsolete 60 Series.  The bracket holds the hinge side of the exit device on the door, and the G20300C fits over the top of it.

    Sargent part #68-2141

    G20300B
    $43.35
  31. Sargent Panic Device Latch Bolt Spring

    Sargent Latch Bolt Spring.

    Used to put tension on the latch bolt of the 20, 30, 60, and 80 Series Sargent exit devices

    Sargent Part # 98-0028

    G20400
    $4.18
  32. Sargent Panic Device 68-4261 8800 Chassis Assembly

    Sargent Exit Device 8800 Chassis Assembly

    Chassis for devices after 2/5/2001. Used on the 8804, 8806, 8810, 8813, 8815, 8840, 8843, 8844, 8846, and 8888 Sargent Exit Hardware Devices.

    Sargent Part # 68-4261

    G684261
    $555.21
