The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors. It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's. It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike. The device is also non handed.55EO-As low as $2,585.41
The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device. The housing includes all of the internal workings and latch bolt. Von Duprin Part # 050183.55R10$695.75
The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors. It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's. It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes. The device is also non handed.
To order select Finish and Type of Door Construction. For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.5547EO-As low as $3,163.58
The Von Duprin 55 End Case is the housing on the hinge side of the door. The function of this housing is to lift the cross bar, and support the function of the Active Case. If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case. The package includes the housing, springs and back plate, the arm is not included. The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.
Other finishes are available upon request.55R30As low as $416.06
The Von Duprin 55NL Cam is one of the handed parts in the housing, the other is the Arm. If you need to change the hand of a housing, you just need to order the other hand Cam.
The Cam shown in the Picture is Right Hand
Von Duprin Part #'s 050355-Right Hand, 050356-Left Hand.G050355-6As low as $39.60
The Von Duprin Panic Device 55 Left Hand Arm 050112 includes the wedge, wedge ring, wedge tite screw and dog screw.
Von Duprin Part # 05011255R40-As low as $344.40
The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.
Von Duprin Part # 05013655R50-As low as $344.40
The Von Duprin 88 and 55 Cross Bar 967738 has been in use since the 1950's. The bar is 1" in diameter and is 42" long and can be cut down in the field. One side of the bar will be cut for the wedge tite screw opening.
Von Duprin Part # 050004
Old Part # 96773888R120-As low as $201.77
The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods. This part is used on the 5547 Concealed Vertical Rod only.
Von Duprin Part # 900539G900539$40.36
The Von Duprin 55 Center Case Axle 090050 is used on the Rim Panic Hardware only. The Rim device is one that has a latch bolt sticking out of the housing.
Von Duprin Part # 090050 or 09002255R120$24.35
The Von Duprin 55 Hinge Case Axle 090051 is used the Rim inactive housing, and all of the other 55 panic hardware. Such as the 5547, and older 5575's.
Von Duprin Part # 090051 or 09002655R110$24.35
The Von Duprin 55 Arm Brushing 050333 takes up the slack between the lever arms and the housing. It measures 13/16" outside diameter by 5/16" high.
Von Duprin 05033355R240$12.53

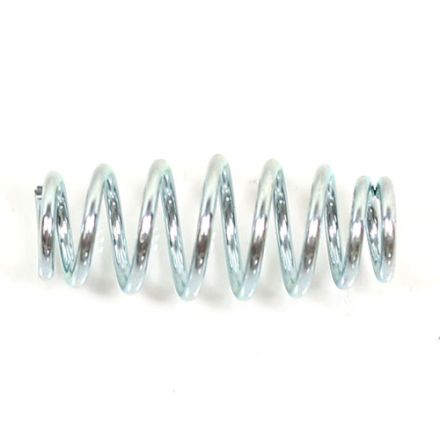

The Von Duprin 55 Hinge Case Spring 090052 is the spring in the inactive case. This spring does all of the lifting of the cross bar, and is used on the 55 Rim, 5547 Concealed Vertical Rod and 5575 Mortise Device. It measures 1-5/8" long by 5/8" diameter.
Von Duprin part # 09005255R200$9.75
The Von Duprin 55 Rim Latch Bolt Spring 967502 is only used on the 55 Rim Panic Hardware. This spring just keeps pressure on the latch bolt, it does not lift the arm. If your arm is sagging, they you need to tighten the crossbar wedge tite screws and check and make sure the 55R200 55 Hinge Case Spring is not broken. It measures 1-1/2" long by 3/8" diameter.
Von Duprin part # 050354
Old Part # 96750255R210$12.50
The Von Duprin 55 Dog Screw-090053 is the newer version, meaning less then 25 years old. It measures 3/8" diameter by 1/2" long with 14 threads per inch. They did have an old style that was available up to a few years ago that had 15 threads per inch. If you have any old style I would recommend the D100 Panic Bar Retainer.
Von Duprin part # 09005355R85$9.75
The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55. The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100). When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door. Measures 15/16" long by 13/16" diameter.
Von Duprin Part #090021
Old Part # 96567688R110$9.46
The Von Duprin 88 Wedge Ring 090020 is also used on the Von Duprin 55's. The Wedge Tite Screw applies pressure on the Wedge which expands the Tube Attaching Ring to grip the Cross Bar. Measures 5/8" on the flat edge.
Von Duprin Part # 090020
Old Part # 95652088R90$6.33
The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware. This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite. The screw is a 5/16-18 x 5/8 hollow set point.
Von Duprin Part # 09008188R100$2.09
The Von Duprin 050053 5547 Top Rod Kit 6'8"-8' Door is for the 5547 Concealed Vertical Rod. The kit include the rod, and latch for a door height of 6'8" to 8' tall.
Von Duprin Part # 050053
Old Von Duprin Part # 104759G050053$329.78
The Von Duprin 050036 5547 Bottom Rod Kit is for use with the 5547 Concealed Vertical Rod panic hardware.
Von Duprin Part #050036
Old Von Duprin Part #102551G050036$329.78
The Von Duprin 050580 Weather Stripping is for there 5654 and 5754 Mullions. Each strip is 10' long and two would be required per mullion. This product is specific to Von Duprin products and will usually only work on Von Duprin Products.G050580$33.40
