Monarch Panic Devices

Monarch exit devices and panic hardware have been circulating commercial businesses for the past 100 years. The exit devices Monarch makes can be used on single or double doors, depending on the device. Monarch exit device styles include rim, surface vertical rod, concealed vertical rod and mortise.

All Monarch exit devices are a Grade 1, which is the highest rank in the rating system. Note: We usually find 904H List Door Hardware on all of the Monarch Falcon Devices.

Monarch is one of the trusted brands that we recommend installing on your commercial doors if you haven’t already. If Monarch panic hardware is already installed, keep an eye out for any repairs you may have to make over time. You can order replacement Monarch panic device parts from us, too.

Shipping Information for Monarch Panic Devices

Most Monarch panic devices ship within 1 week of your placed order. Custom sizes of Monarch exit devices plus some finishes and some Monarch exit device parts are factory orders and may take up to 2 weeks.

Monarch Panic Devices Models

Monarch 17 Series – The 17 Series Monarch exit devices were made from the 1970’s until about 2006. These were their narrow stile devices, designed specifically for doors with narrow frames or where designers wanted a small footprint.

If you currently have 17 Series Monarch exit devices in disrepair, the replacement for these would be the Falcon 24 Series. The mounting holes will not line up, so you will need to start from scratch. Currently we have very few of the replacement parts for this device.

Monarch 18 Series – The 18 Series Monarch exit devices were also made from the 1970’s until 2006. These Monarch panic devices were one of their more popular devices and we still get many phone calls on them. These came in rim, surface vertical rod, concealed vertical rod, and mortise versions.

Most replacement parts for the Monarch 18 Series are no longer available, but some of the components are still used on the other current models, so we may be able to help. One of the most popular parts is the replacement springs for the lever trim handles. We still are able to get these for your 18 Series Monarch exit devices.

Monarch/Falcon 19 Series – The 19 Series Monarch exit devices have been made since the 1970’s with very little change. These are in the Monarch economy line and have a powder coat painted finish, whereas the rest of the Monarch panic devices line is plated finish. They offer rim and surface vertical rod versions of this device in powder coated aluminum or powder coated dark brown colors. These devices are ideal when you need heavy-duty inexpensive hardware.

Falcon 24 Series – The 24 Series Monarch exit devices are very similar to the 25 Series, but are specifically designed for narrow stile doors. These usually only require 3-1/2” stile widths. They are offered in rim, surface vertical rod and concealed vertical rod versions, with 10 different finish options. An added bonus is the availability of replacement parts for the Falcon 24 Series. Most devices at this price point have little or no parts available.

Falcon 25 Series – The 25 Series is now the workhorse for Falcon. With a lower price point and very heavy-duty construction, this is an ideal exit device. These come in rim, surface vertical rod, concealed vertical rod and mortise versions along with 10 different finish options. An added bonus is the availability of replacement parts. Most devices at this price point have little or no parts available.

Monarch/Falcon XX Series – The XX Series Monarch exit devices were introduced in the 1970’s and were discontinued in June of 2019. The XX Series is their crossbar style offering. These devices were available in rim, surface vertical rod, concealed vertical rod and mortise versions and 8 different finish options. Some parts for these particular Monarch exit devices are still available.

Monarch Exit Device Parts

Revisit this page any time you are in need of replacement Monarch exit device parts. It is our hope that we have provided an easy system for ordering Monarch exit device trim and other Monarch exit device parts for when repairs are necessary.

Our supply of Monarch exit device parts includes top latches, latch covers, strikes, spring packages, chassis assemblies and covers, dogging assemblies and covers, end caps, end cap brackets, trim springs, lever arms, crossbar screws, cam springs, axles and more. Of course, you can always let us know if you can’t quite figure out which Monarch exit device parts your commercial door requires. Contact us and provide us with some basic info about the Monarch exit devices you have set up so we can tell you which Monarch exit device parts you will need in order to make some repairs.

Monarch Exit Device Trim

Another important piece of Monarch panic hardware that we carry is Monarch exit device trim. We carry five kinds of Monarch exit device trims and we also have some Monarch exit device trim hardware. Choose the color and style you want before checking out your Monarch exit device trim products.

About The Monarch Exit Devices Brand

Monarch was founded in the 1920’s in Shepherdsville, Kentucky. Until the 1990’s, Monarch was a family-owned business. In the 1990’s, it was sold to Newman Tonks PLC, and in 1998 it was sold to Ingersoll-Rand.

In 2007, Ingersoll-Rand rebranded the Monarch name to Falcon along with Dor-o-matic. In 2012, they moved the Falcon/Monarch line, along with Ives, Von Duprin, LCN, Schlage, and Glynn Johnson to the Allegion product line.

Order your Monarch panic devices today to ensure speedy delivery. Our staff is available during business hours Monday through Friday to give you assistance with your Monarch order if needed.

View as Grid List

Items 1-36 of 38

per page
Set Descending Direction
Page
  1. Falcon 650389 19-24-25-XX Top Latch

    Falcon 650389 19-24-25-XX Top Latch

    Falcon 650389 17V-18V-19V-24V-25V-XXV Top Latch for non Fire Rated Doors.  This latch has a long history, the old number is 588, and the new number is 650389.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

    Falcon Part # 650389
    Old Monarch Part # 588

    G588
    $115.70
  2. Falcon 650375 F-19-V/F24-V/F25-V/FXX-V Fire Rated Top Latch

    The Falcon/Monarch Fire Rated Top Latch is used on the F-19-V, F-24-V, F-25-V, F-18-V and F-XX-V Surface Vertical Rods.  The new number from Falcon is 650375, the old Monarch Number was F588.  This latch is used on the above devices that are Fire Rated, meaning you can not dog these device in the Unlock Position.  If your device has the ability to be dogged open, then use the G588 Non Fire Rated Version

    GF588
    $138.57
  3. Falcon Mechanical Electric Latch (MEL) Retrofit Kit 47867200

    New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

    G47867200
    $495.00
  4. Falcon 299 Strike

    Falcon 299 Strike

    The Falcon 299 Strike is used on the 25-R and 24-R Devices.  The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  This strike is the same as the Von Duprin 299 Strike.

    Ships with shim and mounting screws

    Falcon Part # 299

    Fa299
    $65.95
  5. Falcon 3788 Top Latch Strike

    Falcon 3788 Top Latch Strike

    The Falcon 3788 Top Latch Strike is used on the 18-V, 19-V, 24-V, 25-V and XX-V panic and fire rated devices.

    Falcon Part # 3788

    G3788
    $55.29
  6. Falcon 2130 Bottom Latch Strike

    Falcon 2130 Bottom Latch Strike

    The Falcon 2130 Bottom Latch Strike is used on the 19-V, 24-V, 25-V and XX-V devices.  This strike usually fits into the threshold or is recessed into the floor.

    Falcon Part # 2130

    G2130
    $52.04
  7. Falcon F570 Strike

    Falcon F570 Strike

    The Falcon F570 Strike for 19-R and XX-R Devices is used on the Fire and Non Fire Rated Devices.  This is the same strike that was used on the Monarch XX-R, 19-R, 17-R and 18-R devices.

    Falcon Part # F570

    570
    $56.68
  8. Falcon / Monarch 712L Lever Trim

    The Falcon 712L Lever Trim is used for the XX-C, 18-C, and all 24 Series Falcon Devices.  The XX-C and 18-C are the obsolete concealed vertical rod Monarch Exit Devices. The Trim is non handed or field reversible. The Key locks or unlocks the Lever. The escutcheon measures 1-3/4" wide and 7-1/4" long.

    Plated Door Finishes

    712L-
    As low as $333.07
  9. Monarch / Falcon 24-R Series Rim Exit Device

    Monarch / Falcon 24-R Series Rim Exit Device

    Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

    • Hand: Non-handed.
    • Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
      US32 (629); US32D (630); US28 (628), 313AN.
    • Strikes: 299 strike standard.
    • Latchbolt: Stainless steel, 3⁄4" throw.
    • Deadlocking Latchbolt: Standard.
    • Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
    • Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
    • Projection: 2-3⁄4" maximum, 2” dogged.
    • Mounting Height: 40-1⁄4" from CL to finished floor.
    • Fasteners: All mounting screws are concealed, sheet metal screws and machine
      screws standard.
    • ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
    • Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

    Call for pricing on non listed finishes
    2 week lead time

    24EO--
    As low as $888.88
  10. Monarch / Falcon 25-R Series Rim Panic Device | Panic Hardware

    Monarch / Falcon 25-R Series Rim Exit Device

    Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

    Hand: Non-handed.
    Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
    US32 (629); US32D (630); US28 (628), 313AN.
    Strikes: 299 strike standard.
    Latchbolt: Stainless steel, 3⁄4" throw.
    Deadlocking Latchbolt: Standard.
    Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out..
    Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
    Projection: 2-3⁄4" maximum, 2" dogged.
    Mounting Height: 40-1⁄4" from CL to finished floor.
    Fasteners: All mounting screws are concealed, sheet metal screws and machine
    screws standard.
    ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
    Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.



    Call for pricing on non listed finishes
    2 week lead time

    25EO-
    As low as $762.03
  11. Falcon 25-V Vertical Rod Panic Device

    Falcon 25-V Vertical Rod Panic Device

    The Monarch Falcon 25-V is designed for high-traffic applications were added strength and durability are required.  The device includes all strikes and mounting screws required for installation.  Available in 3' and 4' devices, the 3' device is for doors 30" to 36", the 4' device is for doors that are 37" up to 48" wide.  The vertical rods furnished with this device are for doors up to 7' tall, if your doors are taller, please contact us.

    G25VEO-
    As low as $950.91
  12. Falcon 510L Lever Trim for 25 Series

    The Falcon/Monarch 25 Series Lever Trim 510L is used on the 25 Series Devices.  The Escutcheon measures 2-3/4" x 9-3/4.  The Lever is field reversible.

    510L-
    As low as $302.47
  13. Monarch 19-R Exit Panic Device

    Monarch 19-R Exit Panic Device

    • Hand: Non-Handed.
    • Functions: All functions built into “EO” device.
    • Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313; Stainless Steel-US32D
    • Latchbolt: Stainless steel, 3⁄4" throw.
    • Deadlocking Latchbolt: Standard.
    • Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
    • Stock Sizes: 3'0" and 4'0"
    • Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
    • Projection: 2-1⁄2" maximum; 1-7⁄8" dogged.

    36" device is only 33-1/2" wide
    48" device is only 43-1/2" wide

    G19EO-
    As low as $260.19

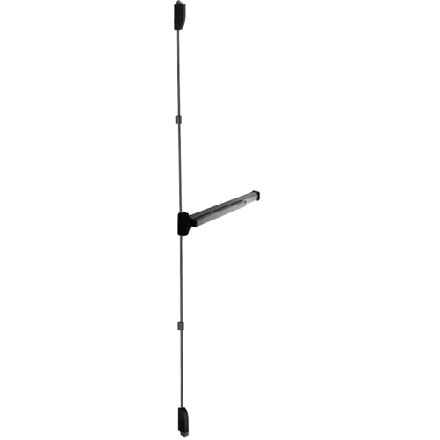

  14. Monarch 19-V Exit Panic Device

    Monarch 19-V Exit Panic Device

    • Hand: Field reversible.
    • Functions: All functions built into “EO” device.
    • Finishes: Powder-coated aluminum–SP28; powder-coated duranodic–SP313;
    • Latchbolt: Top stainless steel 3⁄4" throw. Bottom square bolt 1⁄2" throw.
    • Deadlocking Latchbolt: Standard.
    • Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
    • Stock Sizes: 3'0" and 4'0"
    • Doors: 13⁄4" thick, wood or metal.
    • Narrow Stile Doors: To 1-3⁄4" N.S. aluminum. With control trim–2-1⁄4" min. stile.
    • Projection: 2-1⁄2" max., 1-7⁄8" dogged.
    G19VEO-
    As low as $478.91
  15. Monarch 912L Panic Device Lever Trim

    Monarch 912L Panic Device Lever Trim

    The Monarch / Falcon 912L Lever Trim is for use on the Monarch / Falcon 19 Series.  The 912L measures 7-1/4" high by 1-3/4" wide and the mounting plate is 5/8" thick.  We ship these with the Dane Lever, which projects out 2-7/8" in the Classroom function.  On the Classroom function the key locks and unlocks the lever handle, the Key Cylinder is not included.  We offer this Lever Trim in Painted Aluminum, Painted Dark Bronze, and Brushed Satin Nickel.

    Monarch Part # 912L Dane

    G912L-
    As low as $138.23
  16. Monarch 914KIL-KD Panic Device Lever Trim

    Monarch 914KIL-KD Panic Device Lever Trim

    The 914KIL Lever Trim is for use on the Monarch / Falcon 19 Series.  This lever trim is shipped with a standard Schlage C Keyway, that are keyed different if you are ordering multiple levers.  The key locks and unlocks the Lever handle.

    Monarch Falcon Part # 914KIL-KD

    914KIL-KD-
    As low as $178.88
  17. Monarch Dor-O-Matic Falcon 600339 NL Spring Package

    The Monarch / Dor-O-Matic / Falcon 600339 NL Spring Package converts the 179L , 712L, 712K, 912l and 911K to an NL function.   The NL function is  one were the Lever Handle can not be unlocked and left in the unlocked position when the key is removed.   Spring has a 5/8" diameter.  See attached instructions.

    G600339
    $12.39
  18. Monarch 17 / 18 / 19 Dogging Assy

    Monarch 17 / 18 / 19 / 24 / 25 Dogging Assy

    Dogging assembly used the Monarch / Falcon 17-18-19-24-25 devices

    Falcon Part # 650480

    G19R90
    $39.03
  19. Monarch 19 Series End Cap

    Monarch 19 Series End Cap

    Black plastic end cap measures 2-1/16" high by 1-5/8" wide with a 1-7/16" projection. Cap mounts on to the two mounting holes fo the End Cap Bracket which are about 9/16" on center.

    Monarch Falcon Part # 650343 or old part # 6135

    G19R100C
    $29.27
  20. Monarch 19 Series Chassis Assembly

    Monarch 19 Series Chassis Assembly

    Chassis Assembly for the Monarch Falcon 19-R.

    Falcon Part # 650307
    Old Monarch Part # 192

    G19R10
    $121.97
  21. Monarch 19 Series Chassis Assembly Cover

    Monarch 19 Series Chassis Assembly Cover

    This is the cover for the Monarch Falcon 19-R Rim Device. The cover measures 5-7/8" tall by 2-1/2" wide with a projection of 1-7/8". We sometimes find the number 6133 - 000 cast into the inside of the cover.

    Monarch/Falcon part # 650384
    Old Part # 6133

    G19R20
    $39.90
  22. Monarch 17/18/19 Series Dogging Cover

    Monarch 17/18/19 Series Dogging Cover

    This Monarch 17/18/19 Series Dogging Cover goes over the dogging mechanism on the hinge side of the exit device. Sometimes when the end cap goes missing, this cover plate also disappears.

    Monarch old part #s 195 and 194
    Monarch/Falcon new part #'s 650297 and 650303

    G19R80
    $105.70
  23. Monarch 19 Series End Cap Bracket

    Monarch 19 Series End Cap Bracket

    This steel bracket holds the hinge side of the panic bar on the door. The end cap then fits over it for a finished look. Bracket measures 1-5/8" tall by 1-1/4" wide with a 15/16" projection. Sometimes shipped with a mounting barrel nuts and screw.

    Monarch Falcon Part # 650320 or old part # 600108

    G19R100B
    $14.64
  24. Monarch Falcon 060110 Dogging Pin Package

    Monarch Falcon 060110 Dogging Pin Package

    Used on the Monarch 17,18 and 19 Series Panic Devices.  Pin measures 9/16" overall length with a 5/16" diameter head and 3/16" diameter shaft.  Sold as a package of 10.

    Monarch Part # 060110
    Old Part # 4086

    G060110
    $4.88
  25. Monarch 19-V Series Chassis Cover 650385 / 6134

    Monarch 19-V Series Chassis Cover 650385 / 6134

    This is the cover for the Monarch Falcon 19-V Rim Device. The cover measures 5-7/8" tall by 2-1/2" wide with a projection of 1-7/8".

    Monarch/Falcon part # 650385
    Old Part # 6134

    G19V20
    $56.92
  26. Falcon 650388 Latch Cover 19-V Series

    The Falcon 650388 Latch Cover is for use on the Monarch and Falcon 19-V Series.  The latch is made of high impact black plastic and ships with the mounting screws.  The manufactures part number is 650388, the old Monarch part number was 3781.

    G650388
    $40.66
  27. Falcon 650202 19-24-25-XX Latch Cover

    Falcon 650202 19-24-25-XX Latch Cover

    This Latch Cover is used on the Monarch Falcon 19, XX, 24 and 25 series devices.  Used to go by then number 3781, but the factory is now using the number 650202.

    Falcon Part # 650202
    Old Monarch Part # 3781

    G3781-
    As low as $63.42
  28. Monarch Falcon 060111 Cotter Key Package

    Monarch Falcon 060111 Cotter Key Package

    Monarch Falcon 060111 Cotter Key Package or 10.  Cotter Key measures 1/8" x 1"

    Monarch Falcon Part # 060111
    Old Part # 661102

    G060111
    $21.16
  29. Falcon 650387 Bottom Bolt Guide Assembly

    Falcon 650387 Bottom Bolt Guide Assembly

    The Falcon Monarch Bottom Bolt Guide Assembly 650387 is used the 19-V, 24-V, 25-V and the XX-V Bottom Rod.  The Guide Assembly measures 1-7/8" tall by 1" wide and projects 1-9/16" at the widest projection.   The Bottom Bolt Guide is made of zinc plated steel.

    Falcon Monrarch Part # 650387

    G650387
    $12.85
  30. Falcon 650233 24-R Center Case

    Falcon 650233 / 650234 24-R Center Case

    Replacement Center Case for the Monarch-Falcon 24-R Narrow Stile Rim Device.  This Center Case is for use on both the Fire Rated and Non Fire Rated devices.  This was changed in the summer of 2018.  The 650233 has been replaced by the 650234, which was the Fire Rated version part number.

    Falcon Part # 650233 / 650234

    G24R15
    $520.38
  31. Falcon 650236 24-V Center Case

    Falcon 650236 24-V Center Case

    Replacement Center Case for the Falcon 24-V Narrow Stile Surface Vertical Rod Device.  This Center Case is the same for the Fire Rated and Non Fire Rated devices.

    Falcon Part # 650236

    G24VR15
    $187.82
  32. Falcon 24-V 650251 Center Case Cover Kit

    Falcon 24-V 650251 Center Case Cover Kit

    Replacement cover for the Monarch Falcon 24-V Narrow Stile Exit Device.   Kit includes cover and the mounting screws.

    Falcon Part # 650251

    G24VR20-
    As low as $115.47
  33. Falcon 25-R Center Case Kit 650239

    Falcon 25-R Center Case Kit 650239

    The Falcon 25-R Center Case Kit 650239 for non Fire Rated Doors.  A non Fire Rated door is usually an exterior door, or a door that is not designed to contain the spread of fire.

    Falcon Part # 650239

    G25R15
    $191.66
  34. Falcon 25-R 650255 Center Case Cover Kit

    Falcon 25-R 650255 Center Case Cover Kit

    Replacement cover for the Monarch Falcon 25-R Exit Device.   Kit includes cover and the mounting screws.

    Falcon Part # 650255

    G25R20-
    As low as $107.99
