Dor-o-matic 1090/2090 Assembly Plate.   This plate can be used if your current device has pulled the screws out, or you want to mount a new exit on a wood door.

Doromatic part #4270100304

2090 parts breakdown

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

The Dor-o-Matic 2090 Backplate Assembly PB89 has been around since the early 1970's.  It is now called the Falcon 2090 Back Plate Sub Assembly, but it is the same thing, just different owners of the company.  This piece includes the plate casting, latch bolt, pinion gear, and retractor.

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

LEFT HAND BACKPLATE SHOWN

The Falcon OHC100 and OHC101 Door Closer Body Only are designed for a wide variety of Doors.   The OHC100 is for use on larger exterior doors and has spring size adjustments of 3-5.   The OHC101 is designed for smaller or interior vestibule doors, with an adjustable spring size of 1-3.

The Dor-o-Matic 1990/2090 "E" Ring RRing.109 is use to connect the concealed rods to the Traveller Assembly (G199028, PB88, or 4270100013).  The rods fit through the traveller and rod bushings, and the Retaining Ring holds them in place.  This piece has a diameter of 1/2".   This item is now under the Falcon name plate.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.

Doromatic part # SCREW.1070 or PB315

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Falcon / Doromatic Door Closer SC81 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 12”, which is the same hole spacing as the Norton 8301, 8501 and the Yale 3301, 3501 Door Closers.  We ship the SC81 Rw/PA.

Doromatic Exit Device 1490 Pushbar End Cap PB201

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106787 or PB201

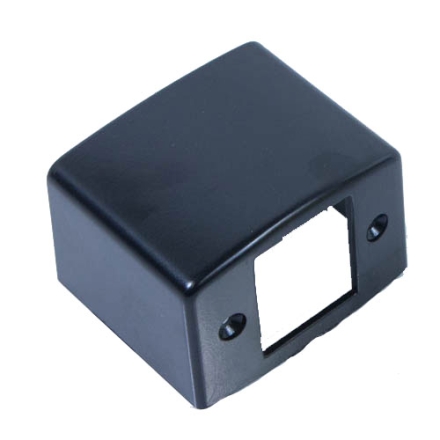

Dor-o-Matic 1590 C/Case CVR PB203

Covers the latch bolt assembly on the 1590 Rim Device.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106863 or PB203

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

No longer manufactured.  We do have some of the PB115, which is the die cast disc that has the receiver for the rim cylinder and the plastic nub.

Dor-O-Matic 1490 Cylinder Assembly 149CA-NL

Doromatic part # 149CA-NL or 4270107272

The Falcon / Doromatic Door Closer SC91 is an affordable, high quality closer for residential or light commercial applications.  They used to be know as the Doromatic SC90, but in about 2008, they changed it to the Falcon SC91.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 3 closer, which is the lightest grade you can get.   The hole spacing is 3/4” x 6-3/8”.  We ship the SC91 Rw/PA.

Dor-o-Matic 1690 Pinion Support Bracket. Bracket holds pinion tip so that it will not slip

Doromatic part # BRKT.478, BRKT.133 or PB312

Dor-o-Matic 1690 Repair Parts Breakdown

The Falcon / Doromatic Door Closer SC61 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 9-1/16”, which is the most common mounting template out in industry today.  They used to be know as the Doromatic SC60, but in about 2008, they changed it to the Falcon SC61.  We ship the SC61 Rw/PA.

Dor-o-Matic 1790 NL/HB Cylinder Assembly. Converts a 1790EO to the Night Latch or Hold Back function

Doromatic Part # CYLASY.1151 or 179CA

1790 parts breakdown

Falcon Spring-n-Stop Hold Open Arm, non handed, extra duty forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or abusive conditions.

Function is the Doromatic/Falcon Door Closer Model

NO LONGER AVAILABLE

Dor-o-Matic 2390 Fixed Cover Screw

The Doromatic 2390 Fixed Cover Screw is the screw that holds the Fixed Cover on. The screw is a 12-14 x 1/2" long UFPH MS Type 25 Screw. This is a self tapping screw.

Doromatic / Falcon Part # SCREW.1088 or PB350

Dor-o-Matic 990/1090/199092090 dogging screw. This is the screw that holds down the cross bar when you tighten it.
The thread is 7/16-14.

Doromatic part # SCREW.1022

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Discontinued December 2024

Doromatic 2390 Moving Pushbar End Cap

Doromatic 2390 Moving Pushbar End Cap is the piece that fits on the end of the pushbar. The Endcap is 3-3/8" high by 1/4" thick, with an 1-7/8" projection. The Pushbar End Cap is constructed of die cast metal that is painted black.

Doromatic / Falcon Part # PB342 or ECAP.143

Doromatic 1490/1590 Pushbar Mounting Bracket PB200

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106786 or PB200

Doromatic Exit Device 1590 Pushbar End Cap PB202

Cover the end of the 1590 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106875 or PB202

The Dor-o-Matic Falcon 1690/1790 Hinge End Cap Kit PB314 includes both pieces and the mounting screws.  It is made of die cast metal that is powder coat painted to a black color.  This piece is mounted on the hinge side of the door.  Doromatic / Falcon part # ECAP.130 or PB314. Formly known as the ECAP.129

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1790 Center Case Cover.

Replacement Center Case Cover by Falcon Dor-o-Matic is made of die cast metal, then electro-statically painted black.   Cover includes mounting screws.

Doromatic part # COVER.120 or PB329

The Falcon Doromatic Latch Screw PB17 is also known as the SCREW.1029 and the GPB17.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

The Falcon SC71 Door Closer used to go by the Doromatic SC71. This is a higher quality door closer at a more affordable price. This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension. It has the ability to be mounted on the push, pull or top jamb and is non handed. This closer is considered a Grade 1 closer, which is the highest grade you can get. The hole spacing is 2-3/8” x 6-3/4”, which is the same hole spacing as the Norton 7500 and Yale 4400 door closers. We ship the SC71 Rw/PA

The Dor-O-Matic 2390 231CA Cylinder Kit converts your 2390 exit only to a Night Latch or Hold Back function key lock.  All the hardware is included in the package to convert your device, except for the Mortise Cylinder.  Housing measures 4-1/2" tall by 1-11/16" wide with a 1-1/8" projection.  We send the 231CA which includes the Schlage B502-191 Cam.   The 239CA is the same kit, but without the Schlage Cam.

Discontinued item, we only have a few left in Dark Bronze.

The Dor-O-Matic STK170 are the strikes used on their RM170.  The are sold as a kit and include both plates, enough for one mullion.  They 2-7/8 inches tall by 1-3/4 inches wide and 1 inch thick.

Doromatic PB48 Strike Shim Package Of 10 Pieces

This Dor-o-Matic product is for the PB48 Top Strike. This is the shim that goes under the top strike. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. They are only sold in packages of 10.

Doromatic Part # SHIM.112

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

Doromatic 2390 Lift Bracket

This cadium plated bracket attaches to the concealed vertical rods. When the push bar is depress, it raises and lowers the brackets and the rods. The bracket measures 2-7/8" long by 5/8" wide and has an overall projection of 3/4"

Falcon / Doromatic Part # BRKT.143
