The Jackson Door Closer Center Hung Arm 20-2085 is for double acting center hung doors for use with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide by 19/32" thick.

Jackson Part # 20-2085

The Jackson Panic Device 1085 Body Package includes 4 mounting studs, 3 housing set screws, 2 lever arm springs, 2 lever arm pins, and an actuator link.  Jackson part # 30-1409

DISCONTINUED 1-1-2025 a few more Dark Bronze left

Jackson Exit Device 2085/2095 End Cap

The Jackson Exit Device 2085/2095 End Cap measures 3-1/8" high, by 1-1/8" wide, and has a projection of 1-15/16". The mounting lugs are 1-3/8" on center and project out 1".

Jackson Part Number 30-1266-628 Aluminum
Jackson Part Number 30-1266-313 Dark Bronze

The Jackson Door Closer Center Hung Arm - 20-2010 is used with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide at the hub by 13/16" thick at the hub.

Jackson part # 20-2010

All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover.

The closer is sized for 2 to 5 spring tension and will work on doors 24" to 54" Wide and 33 to 264 Lbs. This closer has a hole spacing of 3/4 x 9-1/16 inches.

The Jackson Panic Device Top Bolt Guide Assembly is used on the 1085, 1285, and 2086 hardware.  The piece works by sliding over the top rod when the device is opened. This keeps the rods retracted until the Plunger hits the Trip Assembly when it is closing.  Upon hitting the Trip Assy, the plate slides over and the rods retract.  It measures 1-1/2” deep x 1-1/16” wide x  15/16” tall, with a hole spacing of 3/4" on the mounting screws.   Assembly includes the mounting screws.  The Jackson Part number is 30-934.

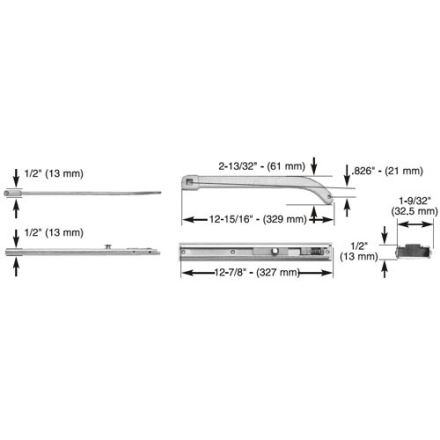

The Jackson Door Closer Offset Arm - 20-1312-LC is the replacement arm and track for the Jackson 20-330 Door Closer.  The track measures 12-7/8" long by 1/2" thick, and the arm has an overall length of 12-15/16" long with an offset of .826".  This set is for use with single acting doors with a 3/4" offset.  Package includes the arm and track.

Jackson part # 20-1312-LC
