The Sargent 20/30/60/80 Dogging Kit 68-2596 is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Panic Hardware. This dogging assembly kit has been around since the 1980's.  We only sell the dogging assembly parts as a complete set.

Sargent part # 68-2596

Sargent 97-3230 Cylinder Dogging Assembly

The Sargent 816 Cylinder Dogging Assembly, also known as the 97-3230, includes the cam that the cylinder dogging tends to wear out.

Sargent Part # 97-3230

Sargent 80 Series Lexan Touch Pad Kit

Sargent 80 series Lexan Touch Pad Kit replaces old and or broken touch pad inserts. On the Sargent part break downs this would be Touch Bar part number 68-0607 and Base 68-0606. The base is 13-1/2" long with 3 mounting holes 4" apart on center.

Sargent Part # 809 KIT

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

The Sargent Regular Arm 25-O is now used on all of there commercial grade closers.   This is the standard arm shipped with about 90 percent of there closers.  This arm is for use with the 350, 1430, and 281 closers, and will work on the 1230 and 1250 models also.

Sargent Part # 25-0

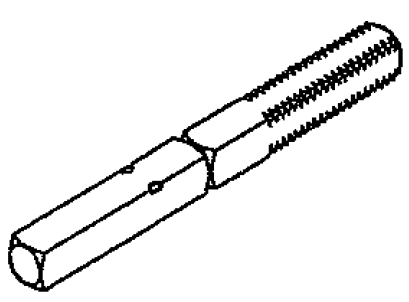

Replacement spindle for the 8100 and 8200 old style series mortise locks , January 1990 to current.

Includes lever bushings, roll pin and set screws

Sargent inside/outside spindle

8100 Series rec'g prior to 1/1/1990

includes lever bushings, roll pin and set screws

Sargent part # 578-2, also known as the 81-2946

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Sargent Exit Device 80 Series Plastic End Cap

This part is the weak link in this exit device. When the end cap falls off the Dogging Cover Plate falls out also! The end cap is 1-1/8" wide by 2-7/16" tall and projects out 1-7/8".

Sargent Part # 68-0561

The Sargent Parallel Arm Bracket 125-P is for use with the 25-O regular arm, to convert it to a parallel arm mount.   A parallel arm mount is when the door closer is mounted on the push side of the door and the arm is parallel to the door when in the closed position.

Sargent part # 125-P9
