Search results for: 'gold goods latch'

• Through-bolted: 1-3/4" (44mm) door standard. For doors through 2-1/4" (54mm)
• Plate Dimensions: 3-1/2" x 3-3/4" x 3/32" (89mm x 95mm x 3mm)
• Finger Pull Dimensions: 3-1/2" x 6-3/4" x 1/8" (89mm x 171mm x 3mm)

Yale 2100 Series Dogging Assembly

yale Part # 60-2100-1001-999

Yale 7000 Series End Cap

Yale Part # ECK7

Newer impact resistant end cap. Replaces all of the older version end caps for the Yale 7000 series.

Shown in stainless steel.

Yale 791 Top Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Top Strike.  This is the same strike as the Corbin Russwin 650F54 or 650F54-8.  This strike no longer uses a roller.

Yale Part # 791

Yale 757F Strike for 7100F and 2100F Devices

Used on the Yale 7100F, 7150F, 7200ME and the 2100F Exit Devices.  Furnished in a Black Finish.

Yale Part # 757F

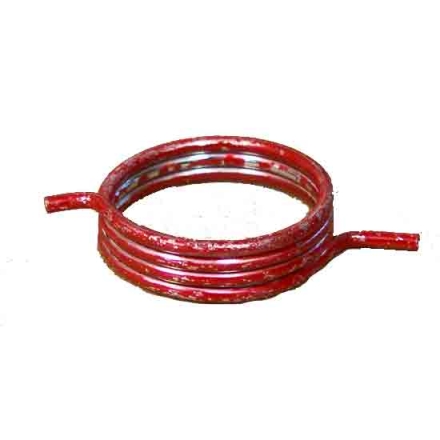

Yale Trim Spring Red

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

One of the problems out in industry today is vandalism.  These Yale Replacement Covers will replace your existing cracked and broken covers.  The covers are available for the 4400, 3300, and 3500 models.  They are made of impact resistance plastic.  The cover shown is for the 4400, in the aluminum finish.

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

Yale 1500 Exit Device

1500-36 For openings up to 36" (0.91m) wide.
1500-48 For openings up to 48" (1.22m) wide.
Strikes 799 Rim Strike (Single Doors)
Stile Minimum Stile width: 4-1/2" (114mm)
Hand Field Reversible

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),
