Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.

Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

4" Kickdown Door Holder Brass Deluxe

Popular priced crafted holder for interior doors.
Has 1/2" adjustment and replaceable steel re-inforced
shoe for long life. Made of steel with brass plated finish.

Made by Grand Specialties

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

The Von Duprin 050671 and 050814 solenoid have been discontinued.  All of our stock is gone.  Von Duprin has come out with a retrofit kit to update your E996 Lever to the M996 Lever. The kit changes out the solenoid for a mortorized version, more robust and uses less current. The newer version can be found by searching for M996.

This solenoid is used on the E996 Electrified Lever Trim.  The Solenoid body measures 1-3/8” x 9/16” diameter, mounting bracket has a 3/4” on center hole spacing.  The wiring harness has a two wire plug.  We some times fine the number 991342 on the solenoid.

New for 2024 Von Duprin has come up with a Mechanical Electrified Conversion kit. This kit converts the EL Solenoid to a Mechanical Electrified Trim.  More information can be found @ https://www.robertbrooke.com/von-duprin-m996l-retrofit-kit.html

Von Duprin Part # 050814
Von Duprin Part # 050671

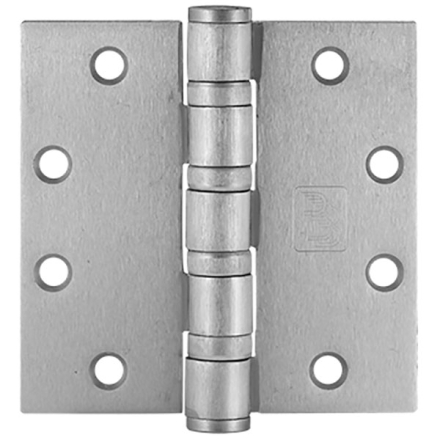

The Full Mortise Heavy Duty Hinges are standard butt hinge.  They are designed for heavy weight doors with a high frequency of usage.  These are ideal for exterior doors in schools, hospitals and other commercial venues.  The hinge offers four bearings, one between each leaf of the knuckle.  They are constructed of 7 gauge (.180”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed chrome

Dor-o-Matic Door Closer Regular Arm Only. This is the standard regular arm for the SC60, SC70, and SC80 Doromatic Door Closers

Doromatic part # SC60 - SC60-3077/PA, SC70 - SC70-3077/PA, SC80 - SC80-3077/PA

Choose Color and Doromatic Falcon Model Number (Function)

Dorma 8616 Door Closer

The Dorma 8616 door closer series is a non-handed surface applied door closer with adjustable spring power and back check positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

Floor Door Stop-Security  FS18 is designed for areas of high vandalism.   The molded rubber is flame resistant and mounted to a 5/8" threaded mounting shaft.  Once the 7/8" diameter hole is drilled to a depth of 2-1/2" it can be grouted in concrete and leaves no exposed fasteners.  The recommended grout is Thorogrip.  They are ideal for jail or security cell areas.  There are two versions of this door stop one projects 1-1/2" (FS18S) out of the floor and the other 3" (FS18L).

The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

The Hands Free Foot Operated Door Pull is a low cost solution to keep your hands off of high traffic handles. It is constructed of cast aluminum, and measures 4" wide by 1-7/32" high with a 2-3/8" projection. The package includes fasteners, door decal and installation tool.

The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55.  The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100).  When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door.  Measures 15/16" long by 13/16" diameter.

Von Duprin Part #090021
Old Part # 965676

The CRL PR90 is a Grade 1 door closer, the heaviest rating possible.  The template is the same as the LCN 4040 with the same features, latching speed, closing speed, back check and power adjustment from size 1 ADA compliant to size 6.

We offer the Standard Cylinder PR90 and also the Delayed Action PR92. Delayed Action will hold the door open for 15-20 seconds to allow handicap individuals to clear the opening before the door closes.

The Jackson Door Closer Offset Arm - 20-1312-LC is the replacement arm and track for the Jackson 20-330 Door Closer.  The track measures 12-7/8" long by 1/2" thick, and the arm has an overall length of 12-15/16" long with an offset of .826".  This set is for use with single acting doors with a 3/4" offset.  Package includes the arm and track.

Jackson part # 20-1312-LC

The Jackson 1085 Panic Device is one of a few original manufactures of Panic Hardware for aluminum framed glass doors, or storefront doors.  The 1085, 1095 along with their door closer the 20-330 were installed on about half of these doors in the 1970's and 1980's.  They were installed on Vistawall and Kawneer doors just to name a few.  Universally recognized as the standard for aluminum storefront hardware it is made of high tensile strength aluminum.  The device is Non Handed, Comes with 45" cross bar that is easily cut in the field.  Also includes the Concealed Vertical Rods, Screws and Strikes.

Replacement parts are available, in stock!

Hager 5100 Series Door Closer

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy duty, high use and abusive environments. Hager door closers are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty.

The 5100 matches the hole spacing of the LCN 4040 or 4040XP

Gravity Door Coordinator 9"

The Ives COR9G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

Gravity Door Coordinator

The Ives COR7G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

• Standard top pivot for most offset pivot
sets and floor closers
• Oil-impregnated sintered bronze bearing
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Non Handed

The Corbin Russwin Door Closer Hold Open Arm has been around for the past 40 years.  This replacement hold open arm will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This is considered a Friction Hold Open Arm because as the arm rotates the arm tightens on itself and holds the arm in the open position.  This arm is also known as the A1 arm.  Corbin Russwin part # 688F77.

The offset door pull 44 is 5 inches by 12 inches.  It offers a 2 inch clearance with a 2-1/8 inch projection.  The mounting holes are 10 inches on centers.  The base block is 1 inch by 12 inches.

International 7300 Rim Device

Modern flat touch bar Rim Panic exit device. This series offers durability, safety and meets the security demand and access control needs of today. Series 7300 Rim Panic exit devices are used with Narrow, Medium and Wide aluminum door and Hollow Metal and Wood Door applications. Series 7300 is non-handed, Field Reversible for LHRB or RHRB doors. Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar. Standard Units for 36” and 48” in widths (cut bar to fit). Can be used on 30” wide doors.

Door Pull 30

10" centers
11" overall
2-7/8" projection
1-3/4" offset

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

The Dor-o-Matic Falcon 1690/1790 Hinge End Cap Kit PB314 includes both pieces and the mounting screws.  It is made of die cast metal that is powder coat painted to a black color.  This piece is mounted on the hinge side of the door.  Doromatic / Falcon part # ECAP.130 or PB314. Formly known as the ECAP.129

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

The Cal Royal Products 400 Series Door Closer is for lighter use interior doors.  This closer is considered a Grade 2, which means it is only rated for 1,000,000 cycles.  The 400 Series is a sized closer, meaning you can not adjust the spring tension, the spring size you select is what you get.  Also, make sure to note the hole spacing of the various sizes below.  These closers also offer adjustable closing and latching speeds.

Size 420 3/4" x 6-5/8" hole spacing
Size SM 430P 3/4" x 6-1/2" hole spacing
Size 430P 3/4" x 8-3/16" hole spacing
Size 440P 3/4" x 8-3/16" hole spacing

Cal Royal 400 Series Catalogue

The Ives Wall Door Stop WS443 has been a staple of the Ives product line for at least the last 45 years.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11/16" projection from the wall.  This product ships with an expansion shield and lead shield.

Single Left Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.

Double Door Latch -- Rests firmly against the center post. Shown with optional lock. Lock prevents theft.

Door Finger Protector - Interior Push Side

These patented door guards fold against the jamb, allowing them to swing completely 180 degrees. The guard is attached to the face of the door and frame with the provided strong adhesive tape. Clear-frosted color to compliment any color scheme. Finger-Gard for use on Interior Doors, on the push side. Available in 54" or 78" lengths

The Corbin 100, 110 and 120 Door Closer are no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

Falcon 25-V Vertical Rod Panic Device

The Monarch Falcon 25-V is designed for high-traffic applications were added strength and durability are required.  The device includes all strikes and mounting screws required for installation.  Available in 3' and 4' devices, the 3' device is for doors 30" to 36", the 4' device is for doors that are 37" up to 48" wide.  The vertical rods furnished with this device are for doors up to 7' tall, if your doors are taller, please contact us.
