Cal Royal 5000 Lever Trim

Cal Royal Part # 8000/L

Adams Rite 8600 Strike Plate Assembly

The 31-0945 has a 1" outer diameter.

Adams Rite Part # 31-0945

The Jackson Panic Device 1085 Body Package includes 4 mounting studs, 3 housing set screws, 2 lever arm springs, 2 lever arm pins, and an actuator link.  Jackson part # 30-1409

The Von Duprin 050036 5547 Bottom Rod Kit is for use with the 5547 Concealed Vertical Rod panic hardware.

Von Duprin Part #050036
Old Von Duprin Part #102551

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

Von Duprin 88 Spring Tube Bracket

This bracket holds the hinge case spring tube in place. The screws are included with the bracket.

Von Duprin Part # 050477
Old Part # 969369

Jackson Exit Device replacement 1295 Latch Assembly.

Jackson Part # 302679

Von Duprin 8827 Rod Guide Assembly

Securely holds rod in place and protects rod from bending.

Von Duprin Part # 050482
Old Part # 101648

Falcon 24-R 650247 Center Case Cover Kit

Replacement cover for the Monarch Falcon 24-R Exit Device.   Kit includes cover and the mounting screws.

Falcon Part # 650247

Von Duprin 050483 33/35A Rim Center Case Cover

Replacement Von Duprin 33/35A Rim Center Case Cover Kit.  Screws come with the new cover.

Von Duprin Part # 050483

The Ives Decorative Floor Stop FS410 is constructed of cast brass.   It measures 1-1/2" high with a 1-1/4" diameter.  Manufacture part FS410 x Finish.

Shown in Brass

Jackson Panic Device 1295 Push Pad End Cap Package

Package includes two end caps, one bracket mounting screw, and 4 end mounting screws. This product was just upgraded to a metal cover, which will replace the old plastic cover.

Old Jackson part # 30-2677
New Jackson Part # 30-2654

Von Duprin 8827 Top Rod Connector

Inserts into rod so the latch can connect to the rod. The top vertical rod does not ship with the top rod connector!

Von Duprin Part # 050279
Old Part # 960577

Detex 98 Advantex 100855-1 Semi Mortise

98 Semi-Mortise-applied strike for 10 an d40 series Rim Devices

Detex Part # 100855-1

Von Duprin 6114 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6114 has a 3/4” latch bolt throw, 7” face plate length, 1-7/8” width, and projects1-9/16”.  The lock retrofits the Folger Adams FD 310-5.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Von Duprin 050404 33/3527A Center Case

Replacement Von Duprin 33/3527A Surface Vertical Rod Device Center Case.

Von Duprin Part # 050404

Von Duprin 88 Master Cam

This is inside the Von Duprin 88 Rim Device and is the piece that the key cylinder moves to lock and unlock the exit device.

Von Durprin part # 050501
Old Part # 951960

The Von Duprin 88 Spring Stop Assembly 050451 is the piece that holds the hinge case spring in place. It is used on all of the Von Duprin 88 models.

Von Duprin Part # 050451
Old Part #107682

The Cal Royal TAIL1 is an extender for the ENTOOL Lever Trim.  The extender works on doors up to 2-1/4 inches thick.  The TAIL1 includes two longer screws, two set screws (not shown), allen wrench, and hub adaptor.

The Dor-o-Matic 1690/1990 Pullman Latch Assembly PB132 is for use with Electric Strikes only.  This part is also some times called the Dor-o-Matic PL Bottom Latch.

Dor-o-Matic Falcon part # 4270101482

The Von Duprin 99 Mechanism End Cap 050014, also known as 33A/35A/98/99/330/350 Impact Resistant End Cap Kit.  Replaces all of the old versions of the 98/99 End Caps, the mounting holes may be different.  Includes end cap, bracket and all screws

Von Duprin Part # 050014

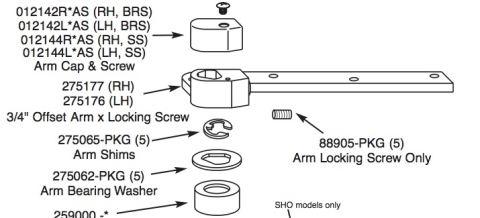

Rixson 27 Series Bottom Arm Package 252050

This kit included the Arm Cap & Screw, Offset Arm, Arm Shim, Arm Bearing Washer, and Spindle Shouler Collar.

Rixson Part # 252050

Dor-o-Matic 1590 HB Cam Assembly

Doromatic part # 4270107285 or PB118

Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

Von Duprin 050535 El Solenoid Assy-Discontinued.  All of our stock is gone, the only way to have your current device work with Electric Latch Retraction would be to up grade to the newer version.  The newer version is the QEL or QEL-HD Conversion Kit.  Here is a link to the QEL Conversion Kit.

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

Adams Rite 91-0897-01 RX Monitor Single Switch is a retrofit kit for all the 3000/8000 exit devices.  The switch has 3 wires to connect to your system.

Adams Rite Part # 91-0897-01

Concealed Top Latch for the ED5800 exit device.  Corbin Russwin part number 650F718.

The Von Duprin 9927 Bottom Vertical Rod 110574 is the replacement rod for broken or bent vertical rods.  All of the 9927 bottom rods are the same length, this is set by Federal Building Codes, so the center line of the Panic Hardware is a certain height from the finished floor. The length of the rod is 31-1/4" long, less the fittings.  The old part number on this was 110574, and the newer one is 050514.

Von Duprin 22 / 2227 Push Bar End Cap

Cap fits on the ends of the Von Duprin 22 Series Push Bar.

Von Duprin Part # 968598

No longer available

Doromatic 1590 Cylinder Assembly 159CA-NL

Doromatic part # 159CA-NL

The Von Duprin 4954 7' 6" Steel Mullion  is the standard mullion used on most double doors with the Von Duprin Exit Devices.  Mullions are easily removed by loosening bottom set screw and removing top fitting cover.  The steel mullions are 2" wide and 3" deep, with an 1/8" thickness construction.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

Von Duprin 9927 Latch Covers.

This cover is used on the 2227, 3327A, 3427A, 9827 and 9927 Exit Devices. Replace old bent and worn covers with brand new ones.

Includes mounting screws

Von Duprin Part # 050566

Other finishes are available

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440

The Dorma 8400 Center Case Cover is used the 8000 Series Surface Vertical Rod Devices.  The cover is black plastic, the screws are not included.   Dorma Part # CHCOV84
