Non-Handed Offset Storefront Pivot Hinge Set, includes top and bottom pivots and all the fasteners.

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

The Corbin Russwin 651F62 Blue Lever Spring is same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin RHR or LH Doors outside trim lever handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

The Von Duprin 55 Arm Brushing 050333 takes up the slack between the lever arms and the housing.  It measures 13/16" outside diameter by 5/16" high.

Von Duprin 050333

The Norton 7700AS Arm Stud is for use on the 7700PT Power Track Closers.  The stud connects the arm to the slider (7700SLD) and is held in place by the Retaining Ring (7700ASR).   This piece is approximately 1" long.

Von Duprin 050538 EL Dogging Rod Retainer

Fitting threads into the 050536 HD EL Solenoid and connects to the Dogging Rod

#5 On Diagram

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Norton 7700SLD Slider for replacement of the 7700PT Series Power Track Closers.  This is the piece that slides in the track and the arm attaches to.  The unit measures 2-1/16" long by 1-1/4" wide and 5/8" thick, not including the metal clip on the back.

The Falcon 650388 Latch Cover is for use on the Monarch and Falcon 19-V Series.  The latch is made of high impact black plastic and ships with the mounting screws.  The manufactures part number is 650388, the old Monarch part number was 3781.

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31

Sargent 2828 / 2838 Center Case Cam

The Sargent 2828 / 2838 Center Case Cam is the Cam that the key cylinder actuates to open the door.   The Cam is located in the middle of the Center Case.  We can no longer get the retaining ring to hold it in place.

Sargent Part # 28-0109

Von Duprin 8827 Top Rod Connector

Inserts into rod so the latch can connect to the rod. The top vertical rod does not ship with the top rod connector!

Von Duprin Part # 050279
Old Part # 960577

Adams Rite Old Style Dogging Pin 24-0730

This Adams Rite part is a replacement for worn or stripped dogging pins. The pin has a 1/8" allen head hex.

Adams Rite part # 24-0730

The Corbin Russwin 651F61 Red Lever Spring is the same part as the Yale Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors on there outside trim Lever Handles. The spring has an 1-1/4" OD and 1-1/8" ID.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Von Duprin 88 Spring Tube Bracket

This bracket holds the hinge case spring tube in place. The screws are included with the bracket.

Von Duprin Part # 050477
Old Part # 969369

• Standard top pivot for heavy-duty offset
pivot sets
• Heavy-duty needle bearings are standard
• Non-ferrous base metal
• 3/4"(19mm) offset (measured from
centerline of pivot to face of door)
• Furnished with wood and machine screws

Handing diagram

Sargent 700 ET Spindle Kit 730-7

This Sargent Kit 730-7 includes the spring, spindle and the associated plates. Look under "More Views" for a detailed look of this repair kit. The 730-7 is for 1-3/4" doors.   Shank measures 4-1/4" long, square spindle is 5/16" square.

Sargent Part # 730-7

The Von Duprin 88 Spring Stop Assembly 050451 is the piece that holds the hinge case spring in place. It is used on all of the Von Duprin 88 models.

Von Duprin Part # 050451
Old Part #107682

The Von Duprin 9927 Center Case 050021 center case replaces all earlier versions of the 9827 and 9927 Center Cases. Everything shown in the picture is included with the product. Along with all the mounting screws.

Von Duprin part # 050021

Adams Rite old Style end cap for the 8700 and 8800. Dogging in the head.
The black cap measures 2-3/8" high x 1-5/8" wide x 1-1/4" projection

Adams Rite Part # 41-0801-08

Yale Trim Spring Red

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

The Adams Rite EL8600 Solenoid 31-0833-IP is used on their Concealed Vertical Rod.  It uses 28 VDC.  If your Solenoid is Red or White, then you would need the EL8800 Solenoid.

The Von Duprin 050580 Weather Stripping is for there 5654 and 5754 Mullions.  Each strip is 10' long and two would be required per mullion.  This product is specific to Von Duprin products and will usually only work on Von Duprin Products.

Von Duprin 900894 230L Tailpiece Auxiliary

The Von Duprin 900894 230L Tailpiece Auxiliary includes the Tailpiece (steel), Tailpiece Guide (nylon), and the Pine Tree Clip (nylon).  The Tailpiece measures about 2-1/2" x 1/4" x 3/32" thick.

Von Duprin Part # 900894

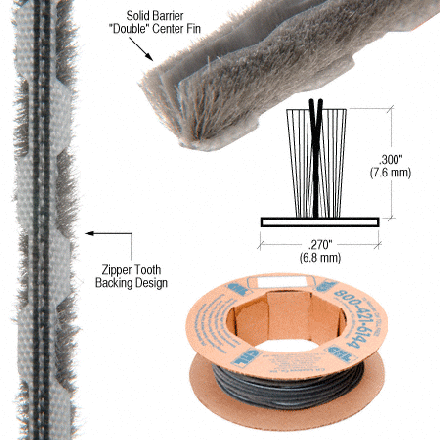

Zipper Pile Weatherstrip .270" Backing - .300" Pile Height - 100' Roll

Replaces Old or Worn-Out Pile Weatherstripping in Doors and Windows. New Zipper Tooth Design Allows Pile to Easily Snap in from Above the Extrusion Slot. High Density Gray Pile with Double Center Fin.

Von Duprin 050066 33/3547 98/9947 Compression Spring (10)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 10.

Von Duprin Part # 090066

Monarch Trim Spring 4841

2-1/2" long x 3/16" diameter

Monarch part # 4841

• Not load-bearing
• Available 3/4"(19mm) offset only
• Non-ferrous base material
• Used with 117, 117-1/4, 195, UNI closers,
127 closer
• Maintains door alignment
• Furnished with wood and machine screws

Handing diagram

The Von Duprin Latch Mounting Bracket 050546 is used on the 2227, 3327 and 9927.   It is for use with the 050400, 050401, 050091 and 050090 Surface Vertical Latches.

Von Duprin Part # 050546
Old Von Duprin Part # 971567

Push Bar Adjustable 452

Finishes:
US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brass
US5/609 antique brass
US10/612 brushed bronze
US10B/613 dark bronze

Material: Brass
Material Size: 5/8" round tube adjustable to 36"
Base: 5/8" x 8-1/2"
Clearance: 1/2"
Projection: 1-1/8"

The Von Duprin 900620 35/3348 98/9947 Adjusting Screw Package is used to adjust the concealed vertical rods.  This package is used on the 3347, 3547, 3347-F, 3547-F, 9847, 9847-F, 9947 and 9947-F.   This is a package of 2.

Von Duprin Part # 900620
Old Part # 109811

The Door Push Plate 50 is the most common push plate we find out in industry today.  It does not matter what type of commercial building you go into, you will find this style and thickness plate.  The are offered in standard sizes, that are shown below, and can be made to custom sizes.  The plates are 16 gauge metal (.050 thick) and are shipped with 4 beveled edges.   The matching finiish screws are shipped with each plate.

Finishes

3 x 12" GPH312
3.5 x 15" GPH315
4 x 16" GPH416
6 x 16" GPH616
4 x 20" GPH420
8 x 16" GPH816

Falcon 650387 Bottom Bolt Guide Assembly

The Falcon Monarch Bottom Bolt Guide Assembly 650387 is used the 19-V, 24-V, 25-V and the XX-V Bottom Rod.  The Guide Assembly measures 1-7/8" tall by 1" wide and projects 1-9/16" at the widest projection.   The Bottom Bolt Guide is made of zinc plated steel.

Falcon Monrarch Part # 650387

Gravity Door Coordinator Nylon Wheel and Screw

Nylon wheel measures 7/8" outside diameter by 3/8" inside diameter by 1/4" thick. Screw measures 5/8" overall lenth by 3/8" shaft diamter by 1/4-26 thread with a 1/2" hex head.

Ives part # CORPART.1024

The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. This core is used on the Floor Mounted SEM7830.  It has 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7820-516

SEM Parts Manual
