Cal Royal 2000 Series Exit Device Lever Trim

Non-handed Grade 1 (Clutch Style)
Cylindrical body hardened steel heavy duty tailpiece. For
1¾” and 2 ¼” doors. Prefix THI before part # for 2 ¼” door
thickness. Available for fire and non fire rated rim and
vertical rod exit devices.
Rose diameter 3 ½”, lever length 4 ¾”.

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

Cal Royal 7700 Rim Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. Uncompromising security and safety in single and double fire exit doors. Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible. Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out.

Templating matches the Von Dupin 99 and 98

International 8610S Rim Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

Rixson Checkmate Overhead Door Holder 9 Series

Product Description & Features
• Doors are single acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy
abuse installations
• Heavy shock absorber spring provides
5-7° compression before deadstop

Size is the Door Width

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)

The Adams Rite EX88 Interlocking Rim Exit Device is designed for heavy duty use on narrow stile aluminium door applications. The EX88 has a unique latch bolt design that interlocks with the frame of the door. This device is non handed, requires a minimum stile width of 2" and will work on aluminum, hollow metal or wood doors.The device is constructed of extruded aluminum with matching metal angled end caps. To order specify your door width, and the color.

Norton CloserPlus Non Hold Open Arm

This heavy duty Parallel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6770-5

Hager 5100 Series Door Closer

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy duty, high use and abusive environments. Hager door closers are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty.

The 5100 matches the hole spacing of the LCN 4040 or 4040XP

Cal Royal 7760 Surface Vertical Rod Exit Device

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs. Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing. Trims are thru bolted for additional security. Conforms & Meets ADA Regulations. UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware.

Templating matches the Von Dupin 99 and 98

The heavy-duty 8900 Series non-handed surface applied closer
with adjustable spring power and backcheck positioning adjustment.
The 8900 has intensity adjustable hydraulic backcheck
that will take effect at approximately 65º. The 8900 has two
independent, noncritical adjustment valves to control sweep and
latch closing speeds. The backcheck positioning valve maintains
an effective backcheck range on parallel arm applications. The
8916 will be available with field adjustable spring power from size
1 to 6 for barrier-free requirements.

2-1/8" x 5" hole spacing

The Von Duprin 88 Active Case 050409 is for use with the Rim Device, which is the model that has the latch bolt sticking out the side of the housing.  This version of the housing is for use on the 88EO (Exit Only), 88DT (Dummy Trim) and 88NL (Night Latch) models only.  Call or email if you need the Thumb Piece, Knob or Lever Version.  The Center Case includes all of the internal workings.

Von Duprin Part # 050409
Old Part # 101662

Cal-Royal 9000 Series NESC Lever Trim features hardened steel tailpiece and heavy duty spring to prevent sagging. Standard 6-Pin Schlage C mortise cylinder included. Rigid entrance, key locks or unlocks lever.

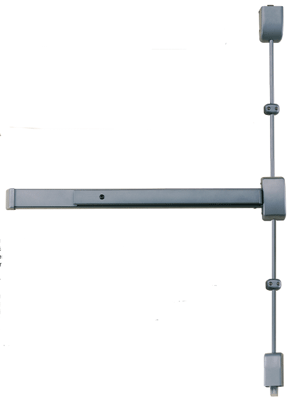

Cal Royal A2200V Surface Vertical Rod

Grade 1
Non handed-field reversible
Heavy gauge steel, painted
4-1/2" minimum stile width

24" wide x 84" high, and 32" wide and 84" high also available in aluminum only

Effective December 20, 2024 the 2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the 1690.

Doromatic 2390 Exit Device

International 5510S Rim Device-Light Duty

All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when the door is closed
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or heavy electroplated steel

Standard 36”: Device length is 33 15/32” (850mm) for 3’ door use, with a standard push bar.
Long 48”: Device length is 44 3/4” (1137mm) for 4’ door use, with long push bar.

The Cal-Royal NARL9800 is a time tested heavy duty Alarmed exit device.  Alarm works with a 9 volt battery.

Norton CloserPlus Hold Open Arm

This heavy duty Parellel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers. The knob on the main are locks and unlocks the arm to hold your door open.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6870T-8

The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike.  The device is also non handed.

The Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX has been around since the early 1970's.  Although it is now called a Falcon 1990, it is still the same device.  This housing is also the inactive housing on the Dor-O-Matic / Falcon 1090 and 2090 panic hardware.  The housing includes all of the interior springs, arm, and dogging screw.  Housing measures 7-1/2" long by 1-3/16" wide.  The center to center distance of the mounting studs is 6-1/4".

LEFT HAND SHOWN IN PICTURE

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902776 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

The Cal-Royal 9800 Rim Device is a grade 1 Heavy Duty Exit Device.   The 9800 has the same template as the 8800 and 9800 with escutcheon lever trim. The 36 inch device will be 32 inches wide and can be cut down an additional 2" to fit doors as narrow as 30 inches.  The 48 inch will be 44 inches wide and can be cut down to fit doors 36 inches wide. The device is non handed, meaning it will work on a left hand reverse or right hand reverse door. Strike and mounting screws are included.

Cal-Royal 9000 Series Lever Trim HDESC is for use on the 9800 and 9800 Exit Devices. The Trim has a clutch mechanism to prevent breaking and two heavy duty springs to prevent sagging. Escutcheon measures 2-5/8 inches wide by 10-5/8 inches long.  The lever projects out 2-7/8 inches. Key locks or unlocks lever.

4" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 3-3/8" to the Floor when mounted.

Floor Door Stop FS442

This Floor Mounted Door Stop used to go by the name Glynn Johnson GJFB19 or FB19. When Ingersoll Rand purchased H. B. Ives in the 1990's they brought it over under the Ives Floor Mounted Door Stop FS442. Features: Designed to blend well with all types of construction and provide a minimum of hindrance to cleaning efforts. Accommodates door undercut up to 2". Heavy-Duty cast brass or aluminum construction. Non-marring rubber bumper. This door stop has an overall height 2-7/8". Mounted shield and screws included.

Ives FB31P Automatic Flush Bolt

This fully automatic flush bolt is used on the inactive metal fire door.  When the active door is opened the latches retract, when the active door closes the latches extend.  The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set includes the top and bottom flush bolts.

3 Hour UL listed

Ives Part # FB31P

Crash Chain Door Stop CS115

• Specially designed for full-size exterior doors.
• Tear resistant, grey vinyl cover.
• Heavy duty compression spring assembled to both ends of chain
  and end brackets.
• Packed with sheet metal screws.
• Cast Brass brackets with solid, welded steel chain.

Available in 20-1/2", 25-1/2" and 30-1/2" lengths. Length is determined
by the location of your door closer

PART # LENGTH
GCC205 20-1/2"
GCC255 25-1/2"
GCC305 30-1/2"

ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

5" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 4-3/8" to the Floor when mounted.

made by Grand Specialties 605z 605b

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

When Less All Parts is selected only the Cylinder is shipped, just the replacement hydraulic cylinder will be shipped

The Von Duprin 9927 Top Vertical Rod 110573 is the standard top rod for door heights up to 7'1".  The length of this rod is 35", less the fittings.  For larger doors you can order a Rod Extension Kit, which at this point we do not have online.  The rod is field adjustable if your doors are less then 7'1".  The Old Von Duprin part # is 110573, and the Newer Von Duprin part # is 050512.

The Doromatic 1990 Panic Device has a long history of reliable performance.  Although it is now called the Falcon 1990, they are the same device.  This device is non handed, meaning it can go on left hand or right hand door.  The standard included 41" crossbar will work on doors up 3'8" wide, and the stardard rods will work on a 7' door.  It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.  The package includes all of the mounting screws and strikes.

Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.
Cylinder: Rim, key entry (NL) or hold back (HB) available
(field selectable)
Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.
Doors: 1-3/4" thick metal doors.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

This Von Duprin Panic Device 7500 Mortise Body Only is used on the Von Durprin 8875, and Von Duprin 98-9975 panic hardware. The body measures 5-7/8" high by 4-1/2" deep and 1" thick. This is the body that has been used since about 1977.

Call or email for pricing on the SS7500, 7500-IN, and E7500 Mortise Bodies and replacement parts for the Lock.

We ship the 7500 in US32D, brushed stainless steel.

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond desired opening
degree
• Vertical and horizontal door adjustment
• Arm centering adjustment
