International Door Closer 855P Series
The 855 has been discontinued. If you order it the 885 will be sent, it is the same door closer, but features back check.
The International Door Closer 855P Series is a common closer we see on a lot of storefront aluminum framed doors. This is one of the last closers out there to still have sizing. By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior. These days we usually use this door closer as a replacement of existing doors. The closer features two adjustment valves for closing and latching speeds. The cylinder is constructed of precision cast aluminum. If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve. The back check valves will slow the door down if it is caught by a gust of wind. It ships with a regular arm and parallel arm bracket. This door closer is for use on doors up to 48” interior or 42” exterior doors.
3/4" x 9-1/16" mounting holes
855- -
Norton Door Closer 7700 Series Power Track Arm
Norton 7700 Series Power Track Arm
Arm is shipped will all of the necessary hardware. This assembly includes the 7701ST-1AT Adjusting Head and Tube Assembly, and the 7701ST-1AR Adjusting Rod Assembly. The square shaft measures 7/16" x 7/16". The aluminum finish ships within 24 hours, dark bronze will take a little longer.
Norton Part # 7701ST-1A
7701ST1A- -
Lock Guard Narrow Line
• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”1625NL- -
Door Pull Offset 1" Diameter 39
The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today. Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. If you have a 9" centered handle use the PH-4000. It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.1" diameter material
GHE39 -
Push Bar 1' Diameter 422
The Push Bar 1' Diameter 422 can be used on any door, but is usually found on aluminum framed glass store front doors. They are constructed of 1" diameter solid aluminum, stainless steel, bronze or brass depending on your select finish. The bar has a 2-1/8" projection and 1-1/8" clearance. The push bar ships with thru bolts and finish washer in matching finish. Please allow 4 weeks on Aluminum, Polished Brass, and Oil Rubbed Bronze. Stainless Steel and Polished Stainless Steel take about 2 weeks.
422 -
International Door Closer 852P Series
The International Door Closer 852P Series is common closer we see on a lot of storefront aluminum framed doors. This is one of the last closers out there to still have sizing. By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior. These days we usually use this door closer as a replacement of existing doors. The closer features two adjustment valves for closing and latching speeds. The cylinder is constructed of precision cast aluminum. If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve. The back check valves will slow the door down if it is caught by a gust of wind. It ships with a regular arm and parallel arm bracket. This door closer is for use on doors up to 32” interior or 28” exterior doors.
3/4" x 7-3/8" mounting holes
852- -
International Door Closer 784 Series
The International Door Closer 784 Series was discontinued about 10 years ago, but we still have some stock left.
FEATURES
Three Adjustment Valves: Closing and Latching
and back checkspeeds controlled by separate regulating Valves,
Universal application Non-handed for standard top
jamb or parallel arm installation.3/4" x 8-3/16" mounting holes
784- -
Yale 2300 Door Closer-Discontinued
Yale 2300 Door Closer
- Spring size 2, 3, 4, 5
- Separate and independent valve for sweep speed and latch speed
- Adjustable backcheck standard
- Regular, top jamb, parallel mount
- 5-year limited warranty
- ANSI/BHMA A156.4 Grade 3
3/4" x 9-1/16" hole spacing
In April of 2023 Norton Yale have discontinued the 2300 and 9300. The Norton 1600 will be sent in place of the 2300. Same Hole Spacing, but adjustable spring tension.
2300- -

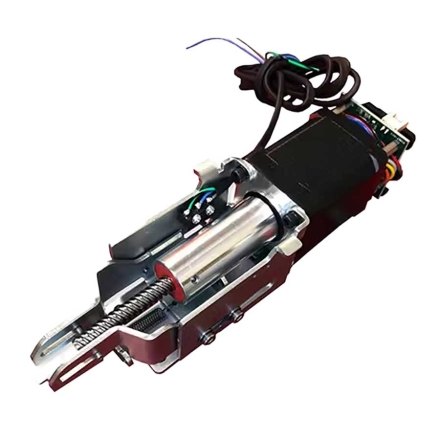

Command Access MLRK-VD Motorized Latch Retraction
The Command Access MLRK-VD Motorized Latch Retraction is for use on the 33,35, 98 or 99 Von Duprin Exit Devices. This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire. And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.
The MLRK1-VD is a cost-effective and straightforward way to upgrade your Von Duprin 33/35 & 98/99 series device to motor-driven latch retraction in the field. For AX devices, see the MLRK1-VDAX listed on the cutsheet below. UL Listed + 3 Year Warranty
MLRK1-VD -
Lock Guard Standard Line
• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"1625- -
Adams Rite CVR/Mortise Metal End Cap 41-0901-05-IP
Plastic end cap for all Adams Rite Concealed Vertical Rod and Mortise devices, specifically the 8300, 8500, and 8600 Series.
Plastic cap measures 2-3/8" high by 1-1/16" wide by 1-1/4" projection. The metal tab measures 1-3/16" wide by 5" long.
Adam Rite Part # 41-0901-05-IP
G41090105 -
Von Duprin EL99 Panic Device Only
This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.
The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. A powerful, continuous duty solenoid retracts the latch bolt, either for momentary unlatching, or for extended periods of time. The EL feature is an alternative to manual dogging.
EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
UL approved for Class II circuit applications.
The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914 power supply.
The PS914 with the 9002RS option card is the minimum option card required. Other option cards available for other functions, see PS914 power supply for additional information.
Ships with all the mounting screws and the 299 Strike.
EL99EO-Corbin Russwin 704F66 ED4000/5000 Series End Cap
The Corbin Russwin 704F66 ED4000/5000 Series End Cap is their newer impact resistant cover. The package ships with the End Cap, Bracket and Mounting Screws. The new bracket my not fit your existing holes, but this end cap is a substantial improvement over the previous versions. Our image shows the Stainless Steel version. This end cap is known as the 704F66 for Corbin Russwin, and ECK7 for the Yale version.
G704F66-Dor-o-Matic 1690/1990 Top Strike PB48
The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates. The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008. They are basically the same device, with the same parts, just a different name plate. Falcon part # PB48.
Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts BreakdownG199034Handicap Saddle Threshold 413 - 4" Wide By 1/4" High
Saddle Threshold 413 - 4" Wide By 1/4" High
Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.
Other sizes and finishes are available, call for more information.
Air shipment is not available on this product. Please allow 7-10 days for delivery.
413-Falcon / Monarch 712L Lever Trim
The Falcon 712L Lever Trim is used for the XX-C, 18-C, and all 24 Series Falcon Devices. The XX-C and 18-C are the obsolete concealed vertical rod Monarch Exit Devices. The Trim is non handed or field reversible. The Key locks or unlocks the Lever. The escutcheon measures 1-3/4" wide and 7-1/4" long.
712L-Floor Door Stop Dome 1-1/4" Height 523
Floor Door Stop Dome 1-1/4" Height 523
This contemporary looking Dome Stop has been a hot selling in the last few years. The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish. At this time, only brushed or satin chrome is available. The base is 1-11/16" wide by 4" long and 1-1/4" tall. The base is 1/2" thick. This door stop ships with wood and machine screws and all of the anchors.
GJ523International 8710S Narrow Design Rim Device
The International Door Closer (IDC) 8710S is a narrow design rim device. The minimum stile width has to be 2-19/32 inches. The device features a 3/4 inch throw deadlocking latchbolt, hex key dogging, and ships with machine screws and strike. The device is Grade 1 Rated, which is the highest rating possible. The 36 inch device is 33-15/32 long and the 48 is 44-3/4 inches.
8710S-Handicap Saddle Threshold 513 - 5" Wide By 1/4" High
Saddle Threshold 513 - 5" Wide By 1/4" High
Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.
Other sizes and finishes are available, call for more information.
Air shipment is not available on this product. Please allow 7-10 days for delivery.
513-Command Access MLRK1-JAC12 Motorized Latch Retraction for Jackson CRL 1200
The Command Access MLRK1-JAC12 Motorized Latch Retraction Kit With REX is for use on the Jackson CRL 1285 and 1295 Series Exit Devices. The unit is 24 volt with Standard : 900 mA (Avg Current Peak); 200 mA (Avg Current Hold). The unit requires 18 ga wires. The package includes: 1) Motor Mount with MM5; (1) 50944 Molex Pigtail; (1) 50030 6 Feet Lead with VD Connector; (2) 40124 10-24 x 3/8inch Phillips Screws (Silver); (2) 40125 10-24 x 3/8inch Phillips Screws (Black).
The MLRK1-JAC12 is a cost-effective and straightforward way to upgrade your Jackson 12, Kawneer 16/17 and PD16 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.
MLRK1-JAC12
