International 8052-TP Delayed Action Door Closer

The International 8052-TP Delayed Action Door Closer is same  as the 8050 Series or 8051-TP, but with Delayed Action. Delayed Action is a function of the Door Closer hydraulic cylinder. The hydraulic cylinder will hold the door open for up to 30 seconds to allow physically challenged individuals time to get through the door way. Adjustable spring power with separate valves for closing, latching and delay

International Door Closer model # 8052-TP DU or 8052-TP AL

This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”

The Von Duprin 9927 Bottom Vertical Rod 110574 is the replacement rod for broken or bent vertical rods.  All of the 9927 bottom rods are the same length, this is set by Federal Building Codes, so the center line of the Panic Hardware is a certain height from the finished floor. The length of the rod is 31-1/4" long, less the fittings.  The old part number on this was 110574, and the newer one is 050514.

The International Door Closer 526 Parallel Arm Bracket is one of two they offer.  This bracket us usually used with the Hold Open Arm 522, and is stronger than the 525 Parallel Arm bracket that ships with the closers.

Sargent Exit Device 80 Series Bracket

Used on to hold exit device on door, plastic end cap mounts to it.

Sargent part # 68-0511

The Jackson Door Closer Center Hung Arm 20-2085 is for double acting center hung doors for use with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide by 19/32" thick.

Jackson Part # 20-2085

The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series.  It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color.  LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

The concealed LCN Door Closer 2031 -2035 Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom.  It is considered an application specific closer, due to the cylinder spring sizing and handing.  The standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack.  Aluminum frame requires minimum 1 3/4”  x 4”  tube.

The LCN Door Closer 4011 is known as the Smoothee.  The door closer ships with regular arm, standard plastic cover, and self reaming and tapping screws.  This is considered an application specific closer, meaning you have to specify left and right swing door, and it can only be mounted as a regular armed closer.  A regular armed closer is a closer that is mounted on the pull side of the door.  The non sized clinder will work on doors from 30" to 60" interior doors, or 26" to 48" exterior doors, and can be adjusted to meet ADA specifications.  This door closer is ideal for areas of high traffic and abuse, like schools or any other areas of extreme use.  We ship the 4011 REG.

Standard 4040 LCN series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws.  Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”.  Closer mounts hinge side, top jamb, and parallel arm w/PA Shoe on either right or left swinging doors.  Closers to meet ADA requirements.

No longer made, the 4040XP will be shipped in its place.

The Jackson Door Closer Offset Arm 20-1134LC is the arm and track assembly for the 20-330 concealed closer.  The arm measures 12-15/16" long with .919" offset, and the track measures 1/2" thick by 12-7/8" long by 1-9/32" wide.  The track includes the nylon slide, pin and retaining ring.

Jackson part # 20-1134-LC

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520

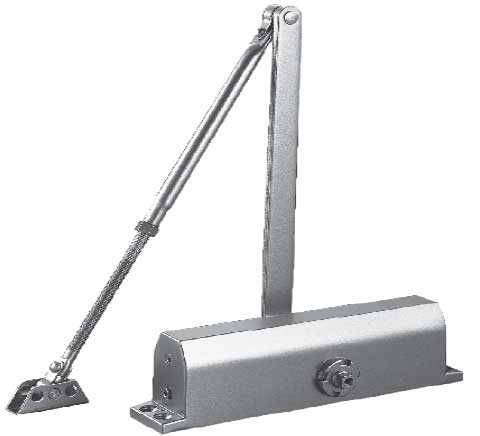

The International Door Closer 1802-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 36” interior and is not recommended for exterior doors.

3/4" X 9-1/16" Hole Spacing

Yale 793 Strike for 2100 and 7100 Devices

Used on the Yale 7100 and 2100 Series Rim Exit Devices.  Optional strike for double door applications without a mullion.

Yale Part # 793

The Norton Traditional Door Closer 78 B/D is a door closer used in historic buildings.  This is a replica of the original cast iron door closer used from the 1920’s to 1960’s.  The new version is made of a cast aluminum alloy material, and should only be used when you are trying to keep historic designations.  The hole spacing on this closer is 1-3/8" x 4-1/4”.

Detex Advantex 10 Series Rim Device

The Detex 10 Series is a Super-Heavy-Duty panic device, built to with stand 1,000,000 cycles, twice the standard for Grade 1 rated devices.  Designed for high-use and high-abuse environments.  Non Handed with 1/4 turn hex dogging.

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V

The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release.  We run into issues where people are able to shake the door, and the door opens.   The package includes two sets of stabilizers and all the mounting screws.

The Von Duprin 4954 7' 6" Steel Mullion  is the standard mullion used on most double doors with the Von Duprin Exit Devices.  Mullions are easily removed by loosening bottom set screw and removing top fitting cover.  The steel mullions are 2" wide and 3" deep, with an 1/8" thickness construction.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

LCN Sentronic Door Closer Arm - 4110SE-3077T

LCN part # 4110SE-3077T

This arm will only work on the 4110SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

The Jackson Door Closer Offset Arm  20-900-LC is used with the 20-330 concealed closer for single acting offset mounted doors.  The arm measures 12-15/16" long by 1/2" thick with a 1.012" offset.  The track measures 25/32" deep by 29/32" wide by 14" long.  The track includes the nylon slide, pin and retaining clips.

Jackson Part # 20-900-LC

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

The International Door Closer 9001-TP Series is a relatively newer closer.  This closer features fully adjustable spring tension, closing and latching speeds and back check.  The narrow design allows for mounting on the top jamb of store front doors without a drop plate.  The closer is non handed, and can be mounted on the push, pull  or top jamb positions.  It meets all ADA requirements and is a Grade 1 closer, the heaviest rating possible.

3/4" X 11-3/32" Hole Spacing

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

The International 8600 Series End Cap is used on the hinge side of the the exit device.  This cap includes the mounting bracket and the mounting screws.   It is constructed of a die cast metal for years of service.  The piece measures 2-3/8" by 2-1/4" by 1-1/2".  This end cap is used on the International Door Closer models, 8510S, 8610S, 8710S, 8810S, 8620S, 8530S, and 8650S devices, along with the same devices ending in F.

Norton / Yale Door Closer Arm Shoe Assembly

Replacement Shoe Assembly for Norton 1600, 9300, 7500 and 8000 series door closers. And Yale 50, 2300, 8000 and 4400 series.
Base measures 11/16" x 2-1/4" with 1-3/4" center to center screw hole mounting. Bracket projects out 15/16". The pin is 3/8" diameter.

Norton part # 7701AS or a Yale # 400-AS

Old Norton Part # 1620AS

The International Door Closer Arm 3010-PT is for end loading top arm assembly (7/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

The International Door Closer 525 Parallel Bracket is the standard bracket shipped with most of there closers.

Sargent 97-0300 8700 Top Latch Spring

The Sargent 97-0300 8700 Top Latch Spring is used on most of the new and older style Sargent Panic Devices.   The springs measures 1-5/8" overall length.

Sargent Part # 97-0300

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

The SEM7820 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN Part # SEM7820

Von Duprin 050535 El Solenoid Assy-Discontinued.  All of our stock is gone, the only way to have your current device work with Electric Latch Retraction would be to up grade to the newer version.  The newer version is the QEL or QEL-HD Conversion Kit.  Here is a link to the QEL Conversion Kit.

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

The Sargent 20/30/60/80 Connecting Arm Spring is the spring that pushes the touch pad back out after you push it in.   It is used on the 20, 30, 60 and 80 Series Panic Hardware.

Sargent part # 68-0236
