33 Series

The Von Duprin Dogging Hook 090044 is the piece that grabs the push bar mechanism and keeps it in the dogged position.  The does wear out, but it takes a long time.  This piece is used on the 22, 33A, 35A, 98 and 99 series devices made after 1997.  We sell this part individually and it is #5 on the diagram.

The Von Duprin Dogging Spring 090041 is the spring that activates the Dogging Hook # 090044.  These do occasionally fail, we sell them individually.  It is # 3 on the diagram.

The Von Duprin 050709 Dogging Assembly is used to update the Von Duprin 22, 33, 35, 98 and 99 device shipped before 1997.  The dogging key on this assembly is 5/32", and you would want to use the longer version of our 88R60 dog key.

Von Duprin Part # 050709
Old Part # 050153

The Von Duprin 050534 EL Potted Circuit Breaker measures 5" long by 1-1/4" wide and 7/16" thick including the wires. This piece spikes the current to the solenoid to open the door, then lowers the current to keep the device open.  The 050534 has a plug for the two wire input, and a plug for the 3 wire output. This Potted Circuit Breaker is also used on the Doromatic/Falcon Exit Devices, EL1490, EL1590, EL1690, EL1790, and EL2390. We sometimes find the number 101031-00 and 2148 on a sticker.

Old Von Duprin Part # 110741
Von Duprin Part # 050534
Doromatic/Falcon Part # 050534-00

Von Duprin 050535 El Solenoid Assy-Discontinued.  All of our stock is gone, the only way to have your current device work with Electric Latch Retraction would be to up grade to the newer version.  The newer version is the QEL or QEL-HD Conversion Kit.  Here is a link to the QEL Conversion Kit.

Screws are 1" on center, the cylinder measures 3" long by 1-3/4" diameter. Used on the 33A, 35A, 98 and 99 exit and panic devices. This Solenoid Assembly is also used on the Doromatic/Falcon EL1690, EL1790 and EL2390

We sometimes find the number 971687, along with 4011 VDC 24

Von Duprin Part Number 050535
Doromatic/Falcon Part # 971687-00

Von Duprin 050538 EL Dogging Rod Retainer

Fitting threads into the 050536 HD EL Solenoid and connects to the Dogging Rod

#5 On Diagram

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

The Von Duprin 110388-00 6 Foot EL Cable Assembly connects directly into your power source and the Potted Circuit Breaker 050534. This 6 foot Cable Assembly is used on Von Duprin and Falcon Exit Devices that have the Electric Latch Retraction.

Von Duprin Part # 110388-00

The Von Duprin 090039 is used in the push bar assembly to return the latch. It is known as the Base Plate Latch Return Spring or Latch Return Spring. It is used on the 22, 33A, 35A, 98 and 99 Devices. The spring is 2-1/4 inch long with a 3/8 inch diameter.

The Von Duprin 900581 Cylinder Cup and Tail Piece Assembly is used on just about everyone of their devices outside tirm.

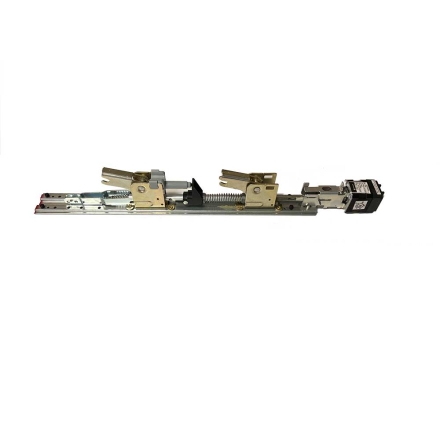

The Von Duprin QEL Baseplate Conversion Kit is for use on the 33A, 35A, 98, and 99 exit devices.

Von Duprin Part # 958003 3' Device
Von Durpin Part # 040065 4' Device
