Door Pull 47

7-3/4" overall
7" centers
3/4" x 1" base
2-3/8" projection

The Clear Plastic Corner Guards 312 are a good way to protect corners from hand carts and dollies.  If the area has a lot of traffic, like a warehouse, I would recommend the 310 or 311 which are made of metal. The are 2" by 2" and are usually 48" long, but we can do custom sizes.  They are constructed of .120" thick clear polycarbonate plastic.  Screws are included for mounting.

The C Shaped Offset Pull has 12 inch centers and has a 13 inches overall lenght. The clearance is 1-1/2 inches with a 2-1/2 inch projections. The handle is constructed on 1 inch diameter stock, the offset is 7 inches. The base is 7/8 inch round stock. The handle is furnished with thru bolts and finish washers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Door Pull Handle 16 has an overall length of 7-1/2". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

The Door Pull Handle 22 features an opened end and a closed end pull. This Door Pull is also known as a Door Handle or Door Grip. The dimensions are 14" overall length, 8" centers, with a 3/8" by 1-1/4" handle cross section.   The mounting posts have a 1" diameter, and the handle projects out 1-7/8".  The handle ships with thru bolts and finish washers.  It is constructed of aluminum, stainless steel or brass depending on the finish you are looking for.

With the Handicap Door Pull 19 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Constructed of cast aluminum or cast brass and plated to the desired finish.  The overall length is 8-3/4", the bases are 1-1/2" x 1-5/8", and it projects 3-1/4".   Shipped with screws. Also known as a Double Arm Pull, Handicap Grip, ADA Door Pull or Handle.

The Door Pull Handle 12 has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

Floor Door Stop / Holder 536

The Stop and Holder 536 is considered a manual door holder.   It is a manual door holder because you have to physically bend over and hook and unhook the holder.  This holder is constructed cast brass or cast bronze and then plated to your desired finish.  The stop measures 2-1/2" in diameter and 3-7/8" overall height, with a center line height of 2-1/2" from the base to the center of the rubber stop.  It ships with all of the fasteners.

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

With the Handicap Door Pull 119 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Also known as the Double Arm Pull it is constructed of aluminum, brass or stainless steel stock.   It measures 8-1/2" overall length and has 5-1/4" centers on the mounting screws.  The flat bar stock is 3/8" x 1", and the round mounting post is 3/4" diameter.  Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

Floor Door Stop 524

The 524 Door Stop is one of the more interesting door stops we have.   They are constructed of cast brass that is then plated to your finish.  It measures 1-1/4" in diameter and is 1-1/2" tall.  One of the benefits of this door stop is there are no exposed screws.  The 524 ships with a 12-24 x 1" machine screw, a plastic anchor and a lead anchor.

The Door Pull Handle 24 features a 6" center to center screw spacing. The handle is constructed of aluminum, stainless steel or brass depending on the desired finish.  The handle is 1" solid diameter stock and the mounting posts are 3/4" diameter stock.  It measures 8" overall length and projects from the door 2".  It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

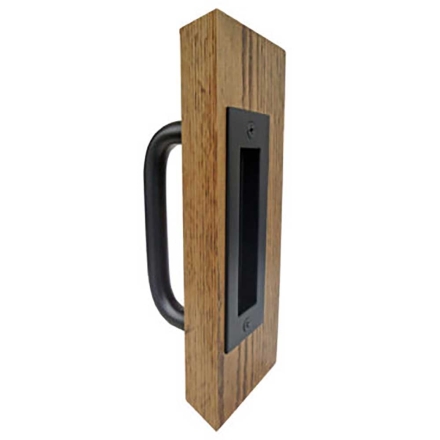

ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

The Handicap ADA Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

Floor Mounted Door Stop 535

Cast Brass or Bronze construction
2-1/2" diameter base x 3-1/8" high
Fasteners included

The Door Pull Handle 17 has an overall length of 10". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

The 594 is constructed of solid brass. The latch bolt is 5/8 inch half round with a 9/16 inch throw.  The bolt ships with mounting screws and strike. The latch bolt has a chamfered end to draw the door in.

The offset door pull 44 is 5 inches by 12 inches.  It offers a 2 inch clearance with a 2-1/8 inch projection.  The mounting holes are 10 inches on centers.  The base block is 1 inch by 12 inches.

Door Pull 30

10" centers
11" overall
2-7/8" projection
1-3/4" offset

The Plunger Type Door Holder / Stop 583 is constructed of solid cast brass, that is then plated to the desired finish.  It measures 5-3/8" by 2-1/4" base with a 1-1/4" projection.   The throw is 1-1/4".   These are sometimes called pop-up or push down stops.   This piece will ship with matching finish mounting screws.

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

Push Bar Adjustable 453

Finishes:
US4/606 brushed brass
US26D/626 brushed chrome
US26/625 polished chrome
US3/605 polished brass

Material Brass
Material size 1" round tube adjustable up to 36"
Base 2" round x 2-1/2"
Clearance 1-1/2"
Projection 2-1/2"

Push Bar Adjustable 454

Finishes:
US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brass

Material: Brass
Material Size: 1" round tube adjustable up to 36"
Base: 2" round x 2-1/2"
Clearance: 1-1/2"
Projection: 2-1/2"

The Burns 617 Non-Locking Pocket Door Pull Set is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The Concealed Mount Push and Pull Plate Sets feature an 1/8 inch push plate with a 1/20 inch plate plate. The handle is surface mounted with thru mounted studs. 8 inch center handles are 3/4 inch diameter, 10 in and 12 inch center handles are 1 inch diameter.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Floor Door Stop / Holder Heavy Duty 541

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 3" high.  Uses a 3/4" diameter hole for the lag sheild.

The Plunger Door Holder / Stop 582 is constructed of cast aluminum.  The stop measures 6-1/4" by 1-1/2" with a 1-5/8" throw.  The rubber shoe is gray.  It will ship with matching finish screws.  These are sometimes called pop-up or push down door stops.

Floor Door Stop Heavy Duty 540

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 2-5/8" high.  Uses a 3/4" diameter hole for the lag sheild.

Dome Door Stop 1-5/8" Height 521

The 521 is a larger version of the other dome stops we offer.  It offers forged brass construction with a gray rubber bumper.  The base measures 1-3/4" diameter x 1-5/8" High, with a 1/4"  thickness.  That this point only US26D-Brushed Satin Chrome is available.  It ships with wood screws and machine screws  and floor anchors.

Floor Door Stop Dome 1" Height 522

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1" tall.  The base is 5/16" thick.  This door stop ships with wood and machine screws and all of the anchors.

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Please allow 7-10 for shipment.

Finishes

Floor Door Stop Dome 1-1/4" Height 523

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1-1/4" tall.  The base is 1/2" thick.  This door stop ships with wood and machine screws and all of the anchors.

The 524T has 1-1/4 inch diameter by 2-1/2 inches tall. It is constructed of brass and then powder coated flat black or brushed chrome plated. This stop ships with a lead anchor, 12-24 x 1 inch machine screw, #12 x 1-1/2 inch SMS with plastic anchor.

The Anodized Black Aluminum Door Kick Plate 315AN are a flat black and match the black color we find on Storefront doors.  These plates have an aluminum base metal, which is 18 gauge (.040") thick that is then Anodized in the Black Color.  These plates relatively inexpensive.  Custom sizes are available, they run about $0.25 per square inch.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended.  Stainless Steel plates are too heavy and they most likely will not stick.  We can also ship them with no holes, if you want to drill your own holes.  This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended.   You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.
