The Diamond Plate Aluminum Door Kick Plate are solid aluminum.   They are 1/8" thick and have a gloss or polished finish.  These plates have the Diamond pattern, and the diamonds are 1-1/8" long.  Custom sizes are available, they run about $0.39 per square inch.  The lead time on these plates is about 7-10 days.

Aluminum Kick Plate with Diamond Plate Finish, .063 inch thick.  Same as our 1/8 inch thick plate, but 1/16 inch thick. Plates come with or without screws, the without will not be drilled.

The Offset 60 degree Door Pull is available in 12 and 18 inch centers. The handle is constructed of 1-1/4 inch solid material, with the base metal determined by the finish (color). It features 1-1/2 clearance, 2-3/4 projection and has a 3-1/2 inch offset. The fasteners are 5/16-18 thru bolts with a finish washer. Please specify the door thickness when ordering.

The Door Push Plate 50 is the most common push plate we find out in industry today.  It does not matter what type of commercial building you go into, you will find this style and thickness plate.  The are offered in standard sizes, that are shown below, and can be made to custom sizes.  The plates are 16 gauge metal (.050 thick) and are shipped with 4 beveled edges.   The matching finiish screws are shipped with each plate.

Finishes

3 x 12" GPH312
3.5 x 15" GPH315
4 x 16" GPH416
6 x 16" GPH616
4 x 20" GPH420
8 x 16" GPH816

The Door Push Plate 62 is constructed of 16 guage (.050") thick aluminum, stainless steel, brass or bronze depending on your finish.  They measure 7-1/2" by 15" tall.  This plate is handed left and right, the one shown on the website is a Left Hand.  Plate comes with matching finish mounting screws.

Finishes

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

The Gold Aluminum Door Kick Plate are constructed of .040" thick aluminum base material that is then anodized to a polished brass finish. These plates are a great alternative to the Solid Polished Brass and Lifetime Brass kick plates. Custom sizes are available, they run about $0.24 per square inch or less.  Ships with matching Phillips type sheet metal screws..  Please allow 7-10 days for delivery
.

The Lifetime Brushed Brass Door Kick Plates are the same as the Lifetime Polished Brass Door Kick Plates, solid stainless steel base metal, 16 gauge (.050" thick), but the surface is Satin or Brushed.  Because it is an artifical finish they will not tarnish.  Custom sizes available starting around $0.41 per square inch depending quantity.  Kick Plate comes with screws for mounting.  Please allow 1 week shipping time.

The 80 Series Push Plate is similar to the 70 series, but has a round bevel on the top and bottom of the plate. There is no bevel on the sides. These plates are  an 1/8 inch thick and are available many different finishes and size.  Custom sizes are available, and they ship with the matching finish mounting screws.

ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

The 598-12 or 5599-24 feature heavy duty steel construction to ensure maximum strength and security. The bolt measures 1/4 x 3/4 x 12 or 24 inches and ships with strikes and mounting screws. The finish in Brushed Chrome. This bolt is UL approved.

The 524T has 1-1/4 inch diameter by 2-1/2 inches tall. It is constructed of brass and then powder coated flat black or brushed chrome plated. This stop ships with a lead anchor, 12-24 x 1 inch machine screw, #12 x 1-1/2 inch SMS with plastic anchor.

Automatic Floor Type Holder and Stop

A replacement holder and stop that has been around for many years.   This style of Holder can be found in many of the schools, churches and hospitals that were built in the 1960's and 1970's.  Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.  Designed for doors with a door to floor clearance of less than a 1/2".

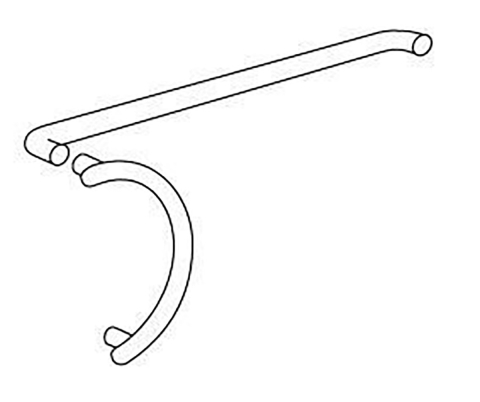

The 422 with 49D are constructed of 1 inch solid stock, with the material determined by the finish (color). The push bar has a clearance of 1-1/8 and the handle has a clearance of 1-1/2 inches. The projection is 2-1/8 on the push bar and 2-1/2 inches on the handle. The pull handle is 12 inches on center, with a 7 inch offset. The set comes with two 5/16-18 thru bolts and one 5/16 back to back conehead.

The M422 with M49D are constructed of 1-1/4 inch solid stock, with the material determined by the finish (color). The push bar has a clearance of 1-1/2 and the handle has a clearance of 1-1/2 inches. The projection is 2-3/4 on the push bar and 2-3/4 inches on the handle. The pull handle is 12 inches on center, with a 7 inch offset. The set comes with two 5/16-18 thru bolts and one 5/16 back to back conehead.

The 591 manual flush bolt is for wood doors and is UL listed. It is constructed of solid brass. The face plate is 1 x 6-3/4 inches. The mortised body is 6 inches high by 1-3/8 deep by 1 inch thick. The screw spacing is 1/2 by 6-1/4 inches on centers.

The 538 Automatic Door Holder is constructed of cast brass, and then chrome plated. The wall mounted strike has a pivoting head to adjust to different angles. The Holder/Stop measures 3-11/16 x 3 inch base, the stop projects out 1-15/16, and the strike projects out 3-1/4 inches. Holder/Stop ships with fasteners.

Only available in Brushed Chrome Finish.

Push Bar Adjustable 453

Finishes:
US4/606 brushed brass
US26D/626 brushed chrome
US26/625 polished chrome
US3/605 polished brass

Material Brass
Material size 1" round tube adjustable up to 36"
Base 2" round x 2-1/2"
Clearance 1-1/2"
Projection 2-1/2"

The Plunger Type Door Holder / Stop 583 is constructed of solid cast brass, that is then plated to the desired finish.  It measures 5-3/8" by 2-1/4" base with a 1-1/4" projection.   The throw is 1-1/4".   These are sometimes called pop-up or push down stops.   This piece will ship with matching finish mounting screws.

Floor Door Stop Dome 1" Height 522

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1" tall.  The base is 5/16" thick.  This door stop ships with wood and machine screws and all of the anchors.

Floor Door Stop Dome 1-1/4" Height 523

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1-1/4" tall.  The base is 1/2" thick.  This door stop ships with wood and machine screws and all of the anchors.

Floor Door Stop / Holder 536

The Stop and Holder 536 is considered a manual door holder.   It is a manual door holder because you have to physically bend over and hook and unhook the holder.  This holder is constructed cast brass or cast bronze and then plated to your desired finish.  The stop measures 2-1/2" in diameter and 3-7/8" overall height, with a center line height of 2-1/2" from the base to the center of the rubber stop.  It ships with all of the fasteners.

Floor Door Stop 524

The 524 Door Stop is one of the more interesting door stops we have.   They are constructed of cast brass that is then plated to your finish.  It measures 1-1/4" in diameter and is 1-1/2" tall.  One of the benefits of this door stop is there are no exposed screws.  The 524 ships with a 12-24 x 1" machine screw, a plastic anchor and a lead anchor.

The Wall Door Holder/Stop 531 features cast brass or bronze finish which is then plated to the desired finish.  This is considered a manually operated door holder, because it does not latch automatically.  It features a 2-1/2" base with 3-5/8" projection, and ships complete with all of the needed fasteners.
