Dor-o-Matic 1690 Pinion Support Bracket. Bracket holds pinion tip so that it will not slip

Doromatic part # BRKT.478, BRKT.133 or PB312

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-Matic 1590 C/Case CVR PB203

Covers the latch bolt assembly on the 1590 Rim Device.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106863 or PB203

The Falcon / Dor-o-Matic Panic Device 2090 / 1790 Standard Strike is the strike shipped with all new Falcon 2090 and 1790 exit devices.  The strike measures 1-3/4" high, 1-3/4" deep and only comes in a Black Matte color.  This strike was known for a long time as the Dor-o-Matic SD36 Strike, but after changing there name to Falcon in about 2008, it is know known as the Falcon SD36 Strike.

The Panic Hex Key 5/32" X 2-1/8" Long is usually used on Dor-O-Matic, Falcon, Corbin Russwin, Von Duprin 55 and 88 and Yale panic hardware.  This Hex Dog Key is not long enough for the Von Duprin 33, 34, 33A, 35B, 98 or 99 Exit Devices.  Also known as Hex Key, Dog Key, Allen Key, Dogging Key

Dor-o-Matic 990/1090/199092090 dogging screw. This is the screw that holds down the cross bar when you tighten it.
The thread is 7/16-14.

Doromatic part # SCREW.1022

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dor-o-Matic 1990/2090 "E" Ring RRing.109 is use to connect the concealed rods to the Traveller Assembly (G199028, PB88, or 4270100013).  The rods fit through the traveller and rod bushings, and the Retaining Ring holds them in place.  This piece has a diameter of 1/2".   This item is now under the Falcon name plate.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

Falcon Dor-o-Matic 1590 Latch Bolt Assembly 4270107603

Replacement Latch Bolt Assembly for the Falcon Dor-o-matic 1590.   In the old days you could just replace the PB355 (SPRING.127) spring, but as of November 2015 you have to replace the complete latch head assembly.

Doromatic Part # 4270107603
Old Part # PB124

Dor-o-Matic Lever arm.

Doromatic part # DC15 Lh and DC40 Rh

Order G199015 for Left Hand and G199040 for Right Hand

Left hand lever shown for 1990 and the 2090 inactive case.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

Dor-o-Matic 1390 Dogging Assembly. If you have a 1390 and the dogging is stripped, this is the part you need. The package includes the Dogging Cam (4270102815), Activating Cam (4270106551), Spacer (4270108584), and Retaining Ring (4299100732).  The 1390 was discontinued in about 2003. Also known as a PB-96 Dor-o-Matic 1390 Dogging Assembly

Doromatic part # 4270106669

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)

For use on the Doromatic 1790 exit devices only. It will not work on the other Doromatic exit devices.  This Lever Trim is now reversible.   To change the hand all you have to do is remove the shear pin, rotate the handle and reinsert the shear pin.

New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply.  The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.

The Falcon / Doromatic Door Closer SC81 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 12”, which is the same hole spacing as the Norton 8301, 8501 and the Yale 3301, 3501 Door Closers.  We ship the SC81 Rw/PA.

The Falcon SC71 Door Closer used to go by the Doromatic SC71. This is a higher quality door closer at a more affordable price. This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension. It has the ability to be mounted on the push, pull or top jamb and is non handed. This closer is considered a Grade 1 closer, which is the highest grade you can get. The hole spacing is 2-3/8” x 6-3/4”, which is the same hole spacing as the Norton 7500 and Yale 4400 door closers. We ship the SC71 Rw/PA

The Falcon OHC100 and OHC101 Door Closer Body Only are designed for a wide variety of Doors.   The OHC100 is for use on larger exterior doors and has spring size adjustments of 3-5.   The OHC101 is designed for smaller or interior vestibule doors, with an adjustable spring size of 1-3.

The Falcon / Doromatic Door Closer SC61 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 9-1/16”, which is the most common mounting template out in industry today.  They used to be know as the Doromatic SC60, but in about 2008, they changed it to the Falcon SC61.  We ship the SC61 Rw/PA.

The Dor-O-Matic 1690/1790/1990/2090 Pinion PB5 has been in use since the 1970's.  This gear or pinion is what activates the latch or the rods on the 990, 1090, 1690, 1790, 1990 and 2090 devices.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are the same device, with the same parts, just a different name plate.  The manufacture part number on this is CAM.102, PB5 or PB140.

1690 parts breakdown

1790 parts breakdown

1990 parts breakdown

2090 parts breakdown

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

The Dor-O-Matic 2390 231CA Cylinder Kit converts your 2390 exit only to a Night Latch or Hold Back function key lock.  All the hardware is included in the package to convert your device, except for the Mortise Cylinder.  Housing measures 4-1/2" tall by 1-11/16" wide with a 1-1/8" projection.  We send the 231CA which includes the Schlage B502-191 Cam.   The 239CA is the same kit, but without the Schlage Cam.

Discontinued item, we only have a few left in Dark Bronze.

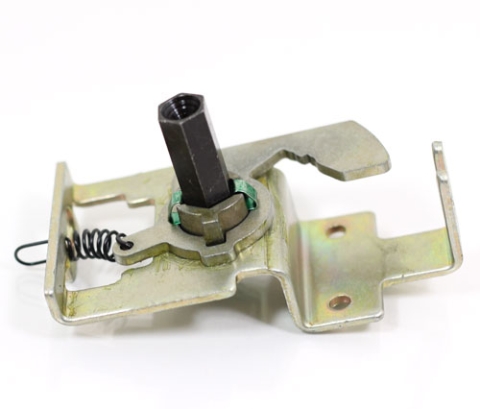

Dor-O-Matic 1690/1790/2390 Dogging Assembly PBX-16

Falcon Doromatic 1690, 1790, and 2390 replacement dogging assy. The dogging assembly is used to dog the door in the open position, so people can enter the building without having to unlatch the door for the inside or with a key on the outside.  The KIT.1197 comes complete with mounting screws.   Some of the earlier version where riveted into the rail, so you might need to drill out the rivets, the screws shipped with KIT.1197 have self tapping thread forming screws.

Doromatic part # KIT.1197

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

The Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130 is also used on the 1390, 1490 and 2390.  This latch has been around since the 1970's,  and is usually the issue if your bottom rod is dragging on the floor.  Although we are calling it Dor-o-Matic, it is actually known as a Falcon SU Top Latch due to a name change 5 or 6 years ago.  This latch rolls over when the device is pressed in and then locks in that position.  When the door closes, the 'U" channel of the latch flips over to a vertical postion and drops the rods.  This latch always uses the PB48 Strike, our part # G199034.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB130 or 4270101806.

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

The Doromatic 1990 Panic Device has a long history of reliable performance.  Although it is now called the Falcon 1990, they are the same device.  This device is non handed, meaning it can go on left hand or right hand door.  The standard included 41" crossbar will work on doors up 3'8" wide, and the stardard rods will work on a 7' door.  It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.  The package includes all of the mounting screws and strikes.

Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.
Cylinder: Rim, key entry (NL) or hold back (HB) available
(field selectable)
Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.
Doors: 1-3/4" thick metal doors.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

The Dor-o-Matic 1990/2090 Cross Bar CBAR is used on the 990, 1090, 1990 and 2090 Dor-o-Matic and Falcon panic hardware.  The bar is 41" and 48" long and is easily cut in the field with a chop or hack saw.  The bar is constructed of extruded aluminum and then anodized to the correct finish.  The slot where the screw threads in is not threaded, but the screws, sold separately, are thread forming screws. The 41" bars are in stock, the 48" bars have a 3 week lead time

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Doromatic part # CBAR/  47285197 for the 41" bars, and 47286482 for the 48" bars.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
