Doromatic 2390 Moving Pushbar End Cap

Doromatic 2390 Moving Pushbar End Cap is the piece that fits on the end of the pushbar. The Endcap is 3-3/8" high by 1/4" thick, with an 1-7/8" projection. The Pushbar End Cap is constructed of die cast metal that is painted black.

Doromatic / Falcon Part # PB342 or ECAP.143

The Dor-o-Matic Falcon 1690/1790 Hinge End Cap Kit PB314 includes both pieces and the mounting screws.  It is made of die cast metal that is powder coat painted to a black color.  This piece is mounted on the hinge side of the door.  Doromatic / Falcon part # ECAP.130 or PB314. Formly known as the ECAP.129

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Doromatic Exit Device 1590 Pushbar End Cap PB202

Cover the end of the 1590 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106875 or PB202

Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.

Doromatic part # SCREW.1070 or PB315

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic Lock stile Push Bar End Cap

The Dor-o-Matic -Falcon 1690/1790 Lock Stile Push Bar End Cap PB318 is used on the 1690 concealed vertical rod and 1790 rim device.This is the end cap for the push bar and is located closest to the active housing.  Doromatic part # ECAP.129 or PB318

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Doromatic Exit Device 1490 Pushbar End Cap PB201

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106787 or PB201

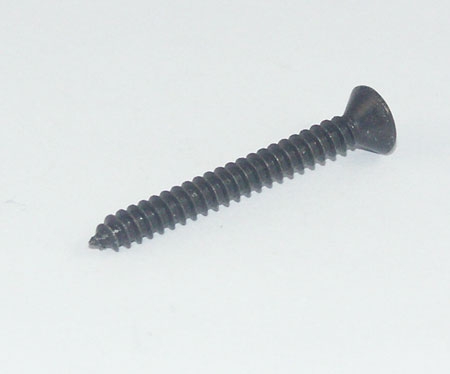

Dor-o-Matic 1690 End Cap Screw

Doromatic part # screw.1072 or PB316

Dor-o-Matic 1690 Repair Parts Breakdown

Effective December 20, 2024 the EL1590 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the MEL1690.

Dor-o-Matic/Falcon EL1590 Panic Device with Electric Latch Retraction

The Dor-o-matic 1590 is our heaviest device and offers a clean appearance with push pad styling and a variety of practical features. The Dor-o-matic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Requires a Power Supply

Replacement parts are also available

Shipped with all screws and strikes.

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.

Effective December 20, 2024 Falcon Doromatic has discontinued this exit device.  They are currently working on retro-fit plates to make transitioning to 1790EO more easily.

The Doromatic 1590 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The Doromatic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Replacement parts are also available

Shipped with all screws and strikes.

Doromatic 1490/1590 Pushbar Mounting Bracket PB200

Cover the end of the 1490 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106786 or PB200

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Effective December 20, 2024 the 2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the 1690.

Doromatic 2390 Exit Device

The Doromatic 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The Doromatic 1790 may also be used to retrofit a Doromatic 2090 series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. If you wish to use a key cylinder on the exterior, you will need the 1790 NL/HB Cylinder Assembly, 179CA.

Dor-o-Matic 1590 NL Cam Assembly

Doromatic part # 4270107283

No longer Manufactured

NO LONGER AVAILABLE

Dor-o-Matic 1490 NL Cam Assembly

Doromatic Part # 4270107268

Parts Break Down

Dor-o-Matic 1690 Falcon Center Case Cover Kit

Color: Black

Doromatic part # COVER.113 or PB313

Dor-o-Matic 1790 Drive Bushing, needed to use the optional key cylinder.

Doromatic part # CAMASY.101 or PB319

Doromatic 2090 Latchbolt spring. Pushes out the latch bolt.

Doromatic part # SPRING.104

Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-matic 990/1090/1990/2090 Lever Arm Pivot Pin measures 1-1/32" long by 9/32" diameter.

Doromatic Part # PIN.115

Dor-o-Matic 1690/1790 Lock Stile Screw

Doromatic part # SCREW.1077 or PB345

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Dor-o-Matic Falcon Actuator Arm Bracket Assembly is used on the 1690 and 2390 devices.

Doromatic part # BRKTASY.107 or PB338

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic 1990/1690 Hex Bottom Bolt

Bottom bolt measures 3" long and is constructed of 1/2" hex stock. Threads onto bottom latch. We also call this GPB352.

Doromatic part # 4270101830

Dor-o-Matic 1790 Channel Spacer. This part is used on Dor-o-Matic 1790's with an outside key cylinder.

Doromatic part # SPACER.107 or PB326

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1790 Slider. This is one on the components used in the NL/HB Cylinder Assy

Doromatic part # SLIDER.101 or PB344

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-matic 1690 Lock Stile Screw

1/4-20 Phillips Head Screw, a liite less than 1/2" overall lenght.

Doromatic part # SCREW.1069 or PB114

Dor-o-Matic 1690 Repair Parts Breakdown

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic 990/1990/2090 Lever Arm Pin. This pin is what the spring attaches to.

Doromatic part # PIN.104

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Dor-o-Matic Rod Bearing. This is the piece that goes over the rod and fits into the traveller to take up slack.

Doromatic part # BUSH.109 or PB3

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown

The Falcon Doromatic Adjustable Mortise STrike STK70 is used on their mullions.  This is the strike that fits in the tear drop shapped mullion. They measure 2-3/8 inches tall by 1-7/16 inches wide and are 1" thick.  They are sold in sets, enough for 1 mullion.

Doromatic 2390 Lift Bracket

This cadium plated bracket attaches to the concealed vertical rods. When the push bar is depress, it raises and lowers the brackets and the rods. The bracket measures 2-7/8" long by 5/8" wide and has an overall projection of 3/4"

Falcon / Doromatic Part # BRKT.143

NO LONGER AVAILABLE

Dor-o-Matic 2390 Fixed Cover Screw

The Doromatic 2390 Fixed Cover Screw is the screw that holds the Fixed Cover on. The screw is a 12-14 x 1/2" long UFPH MS Type 25 Screw. This is a self tapping screw.

Doromatic / Falcon Part # SCREW.1088 or PB350

Dor-o-Matic 1490 LHR/ 1590 RHR Push Label
1-7/16" x 4-7/8"

Doromatic part # 4270107323 or PB213 Black-No longer available
Doromatic part # 4270107322 or PB215 Gold

The Dor-o-Matic 1990 and 2090 Set Screw PB38. This set screw goes in the housing to secure it on the mounting studs.  There is 3 of these screws on each housing, two on the left and right side toward the top, and one on the bottom.   The manufacture is now Falcon.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Dor-O-Matic 1690/1790/1990/2090 Cylinder Bushing BUSH.102 fits around the Pinion gear to take up slack and reduce friction.  This piece is now known as the Falcon Panic Hardware BUSH.102, but for many years was called the Dor-o-Matic PB46.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

The Dor-o-Matic 2090 Backplate Assembly PB89 has been around since the early 1970's.  It is now called the Falcon 2090 Back Plate Sub Assembly, but it is the same thing, just different owners of the company.  This piece includes the plate casting, latch bolt, pinion gear, and retractor.

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

LEFT HAND BACKPLATE SHOWN
