The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

The LCN Door Closer 4011FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull. Closer mounts hinge side, specify right or left swinging door. 4011 cylinder meets ADA requirements.

We ship the 4011 FL

The LCN Door Closer Spring cush Arm 3077SC is an optional arm offered by LCN.  The arm features a solid forged steel main arm and forearm with a spring loaded stop in the soffit shoe, which makes this arm ideal for abusive parallel arm applications.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. The LCN Part #'s on this Regular Arm is: 1460-3077SC, 4040-3077SC, 4110-3077SC

The LCN Sentronic Overhead Concealed Door Closer 3130SE is shipped with a standard arm, 24V or 120V SE track (please specify), track roller, and wood and machine screw pack. Sized cylinders for interior doors to 4’0”. Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted. Handed for right or left swinging door. Interfaces with fire alarm systems.

LCN Sentronic Door Closer 3130SE parts are also available.

LCN Sentronic Door Closer Arm - 4110SE-3077T

LCN part # 4110SE-3077T

This arm will only work on the 4110SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

LCN Door Closer Spring Cush Hold Open Arm 3049SC

Optional, parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe. Handle controls hold-open function.

The LCN Door Closer 3077EDA Extra Duty Arm is the standard arm shipped with the 4110 series, and is optional on just about all of there other closers.  The arm features a non-handed parallel arm solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077EDA, 1460-3077EDA, 4040-3077EDA, 4110-3077EDA

The LCN Door Closer Hold Open Arm 3049 has an adjustable nut that allows the door closer arm to lock when they reach a pre select position.  This arm can be used on most LCN Door Closers because the Hold Open function is in the arm.   If you have a regular armed LCN Closer currently, you can use this arm to make them have the Hold Open function.  Two words of warning, they can not be used on an interior fire rated door, and Hold Open arms usually break.   The manufactures sell more door closers with regular arms, but we tend to sell more Hold Open arms, meaning they wear out or break a lot easier then Regular Arms.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer cylinder. The LCN Part #'s on this Regular Arm is: 1260-3049 (non handed), 1460-3049 (non handed), 4010-3049 (handed), 4020-3049 (handed), 4040-3049 (non handed).   The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.

LCN Sentronic Door Closer Arm - 4010SE-3077T

LCN part # 4010SE-3077T

This arm will only work on the 4010SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram. This arm is for a discontinued LCN Door Closer. We can not allow returns, each arm is specail ordered.

The arm shown in the picture is a 4040SE arm, the 4010SE arm is the same, but the shaft hole is an oval.

Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

The SEM7840 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7840

The LCN Door Closer 4041XP-Hw/PA is the 4040XP, eXtra Protection closer with the 4040XP-3049 Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the friction hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, push, pull or top jamb mount.  The hold open point is adjustable by loosening or tightening the hold open nut on the arm.

SEM7850-828 Armature for LCN Electro Magnetic Door Holder features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN 4640 Low Energy Door Closer

LCN 4630 Low Energy Door Closer

LCN 4630 replacement arm, LCN part # 4630-3077T

The SEM7800 LCN Electro Magnetic Door Holder Metal Cover is constructed of a metal die cast. This cover will work on the SEM7830, SEM7840 and SEM7850. Available in aluminum and dark bronze finishes.

LCN Part # SEM7830-72, SEM7840-72 and SEM7850-72

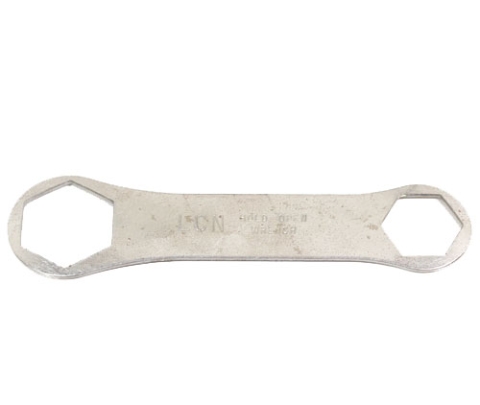

The LCN Hold Open Arm Wrench T-1157 is used to adjust LCN Friction Hold Open Arms,  one side if for the 1-1/2" nut and the other is 1-3/16".  Friction Hold Open arm would be part number 3049, with the suffix being the closer model, like 4040-3049, ect..

LCN part # T-1157

LCN SEM7850-515 Magnet Hardware Package is used to mount the Armature or the Door Mounted part of the Magnetic Door Holders.   If you are currently using LCN door holders, you will not need to purchase this.   However, if you are using another brand and they have gone missing, you will need to purchase this component.

Replacement Rod for the LCN 4630 Door Closer, LCN Part # 4630-82

The SEM7810-514 LCN Ball Pivot Connection Link Coupler Assembly Kit, is required for each door needing extension(s). Kit includes coupler link and ball pivot (alone serves as an 1-1/2" extenison). The threaded end is 3/8-16.

LCN Part # SEM7810-514

LCN 4820 Closer Arm

The LCN 4820 Auto-Equalizer Regular Arm comes with the Arm & Forearm, Rod & Shoe, and all the arm screws.

LCN Part # 4820-3077

The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7830-516

The LCN Fusible Link melts at 165 degrees to release the hold open mechanism.   Link measures 1-3/8 long by a 1/2" wide, the center to center distance on the holes is 15/16".

LCN Part Numbers:
4010-28
4110-30
4020-31

The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. This core is used on the Floor Mounted SEM7830.  It has 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

LCN part number SEM7820-516

SEM Parts Manual
