The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.

Von Duprin 050519 33/3547A/48A Adjustable Top Rod

Replacement Von Duprin 33/3547A/48A Adjustable Top Rod for 6'8" to 8'4" doors.

Von Duprin Part # 050519

The Von Duprin 8827-F/47-F Soffit Latch Kit 114141 fits in the header of the door frame and is used on the Von Duprin 5547-F, 8827-F and 8847-F.  The plunger is spring loaded.

Von Duprin Part # 114141
Old Part # 102930

The Von Duprin 499F is used on the 22, 98 and 99 Series Fire Rated Rim Devices when used with the 9954 Mullion.  A Fire Rated Device is one that does not have a dogging pin or screw to lock the door in the open position.

Von Duprin Part # 499F

The Von Duprin 8827-F Top Latch Cover Kit 050465 the Top Latch Cover for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.

Von Duprin Part # 050465
Old Part # 961206

The Von Duprin 8827-F Top Latch Kit 050462 is the Top Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Duprin Part # 050462
Old Part # 102676

Von Duprin 8827-F Bottom Latch Kit 050463 is the Bottom Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.

Von Duprin Part # 050463
Old Part # 102681

The Von Duprin 050190 Bottom Fitting is for the 5654 / 5754 Mullions.  The package includes the bottom fitting and all of the fasteners.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-7/8"

Von Duprin part # 050190

The Von Duprin 107765 Plunger Release Bracket is used with the Fire Rated 8827-F Top Latch.  When the door closes, the Release Pin on the 88VR10-F (050462) hits the post and releases the latch from the retracted position.  Once the top latch is released, it drops the bottom latch into the floor.

Von Duprin  # 107765

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55.  The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100).  When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door.  Measures 15/16" long by 13/16" diameter.

Von Duprin Part #090021
Old Part # 965676

The Von Duprin 55 End Case is the housing on the hinge side of the door.   The function of this housing is to lift the cross bar, and support the function of the Active Case.  If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case.  The package includes the housing, springs and back plate, the arm is not included.  The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.

Other finishes are available upon request.

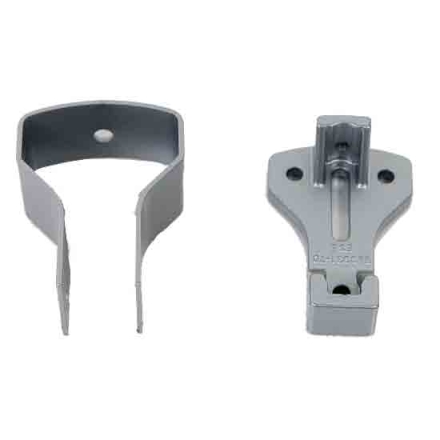

The Von Duprin 050135 Top Fitting and Cover is for use on there 5654 / 5754 Mullions.  Package includes the Top Fitting and Cover, and all of the fasteners.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8"

Von Duprin Part # 050135

The Von Duprin 050130 Fitting Set is for the 5654 / 5754 Mullions.  Set includes top and bottom fittings, all of the mounting screws.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8".

Von Duprin Part # 050130

Von Duprin NL Drive Screw 090074

The 090074 NL Drive Screw is used on the Von Duprin 22, 98 and 99 Exit Devices to control the rotation of the key cylinder cam. This small set screw, screws into the back of the chassis assembly next to the receptor for the Rim Key Cylinder. The set screw measures 5/16" long by 3/16" diameter. Note: When the NL drive screw is left in back of device, the outside cylinder will function only as a Night Latch. The Night Latch function means the door can only be opened, but not dogged open with the key cylinder.

Von Duprin Part # 090074
Old Von Duprin Part # 970441
