The Von Duprin Dogging Spring 090041 is the spring that activates the Dogging Hook # 090044. These do occasionally fail, we sell them individually. It is # 3 on the diagram.
The Von Duprin 050580 Weather Stripping is for there 5654 and 5754 Mullions. Each strip is 10' long and two would be required per mullion. This product is specific to Von Duprin products and will usually only work on Von Duprin Products.
The Von Duprin 900894 230L Tailpiece Auxiliary includes the Tailpiece (steel), Tailpiece Guide (nylon), and the Pine Tree Clip (nylon). The Tailpiece measures about 2-1/2" x 1/4" x 3/32" thick.
The Von Duprin 090076 Spring is located in top latch of the Surface Vertical Rod. It is used on the 2227, 3327A, 3427A, 9827 and 9927 models. It is number 18 in the attached diagram. They are sold in packages of 10.
The Von Duprin 8827-F/47-F Soffit Latch Kit 114141 fits in the header of the door frame and is used on the Von Duprin 5547-F, 8827-F and 8847-F. The plunger is spring loaded.
The Von Duprin Dogging Adapter Spring 090042 is the clip that holds the dogging shaft in the assembly. We sell these individually, and it is the #2 item on the diagram.
Von Duprin 88 Dog Screw. Newer style, after 1975 or so. If you have an older exit device they no longer make that screw. I would recommend the D100, Panic Bar Retainer, for dogging down your device.
The Von Duprin 900620 35/3348 98/9947 Adjusting Screw Package is used to adjust the concealed vertical rods. This package is used on the 3347, 3547, 3347-F, 3547-F, 9847, 9847-F, 9947 and 9947-F. This is a package of 2.
The Von Duprin 338 Strike measures 1-5/8" by 1-7/8" with a 5/8" projection. The screw mounting is 1-7/8". This strike is used as a bottom strike on the Von Duprin surface and standard equipment there concealed vertical rod devices 3347, 3547, 5547 8847, 9847 and 9947.
The Von Duprin 499F is used on the 22, 98 and 99 Series Fire Rated Rim Devices when used with the 9954 Mullion. A Fire Rated Device is one that does not have a dogging pin or screw to lock the door in the open position.
The Von Dupin 1439 Strike measures 1-7/8 horizontal x 1-3/4 inches vertically. The strike has a projection of 1/2 inch. We find this strike used on the 33A and 35A exit devices.
New style axle snaps together, and replaces the old style which were screwed together with allen wrenches. This style of axle has been around since about 1990. The piece on the right is only used for taking the axle apart.
The Von Duprin 3348/9948 Top Latch Kit 050494 is used on the 33A, 35A, 98 and 99 exit devices. Replaces all previous versions of the 33/3548 and 98/9948 top latches.
Von Duprin Part # 050494 Von Duprin Old Part # 112906

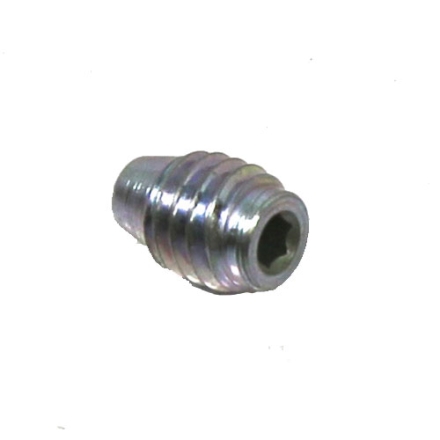

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware. This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite. The screw is a 5/16-18 x 5/8 hollow set point.
The Von Duprin 8827-F Top Latch Kit 050462 is the Top Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.
The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.
Von Duprin Part # 050277 Old Von Duprin Part # 960652
The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release. We run into issues where people are able to shake the door, and the door opens. The package includes two sets of stabilizers and all the mounting screws.
