The Von Duprin 55 Arm Brushing 050333 takes up the slack between the lever arms and the housing.  It measures 13/16" outside diameter by 5/16" high.

Von Duprin 050333

The Von Duprin 6000 Series Solenoid Kit is used to replace burnt out solenoids on there 6000 series.  To order determine the voltage and whether you have fail safe or fail secure.

Part # 050237 12 VDC (Fail Safe & Fail Secure)
Part # 050239 16 VDC (Fail Safe & Fail Secure)
Part # 050240 24 VDC (Fail Safe & Fail Secure)

The Von Duprin 88 Wedge Ring 090020 is also used on the Von Duprin 55's.  The Wedge Tite Screw applies pressure on the Wedge which expands the Tube Attaching Ring to grip the Cross Bar. Measures 5/8" on the flat edge.

Von Duprin Part # 090020
Old Part # 956520

Von Duprin Exit Device 88 Axle Package

Von Duprin 88 Axle Package

New style axle snaps together, and replaces the old style which were screwed together with allen wrenches. This style of axle has been around since about 1990. The piece on the right is only used for taking the axle apart.

Von Duprin Part # 090006 or 090082

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

Von Duprin 6114 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6114 has a 3/4” latch bolt throw, 7” face plate length, 1-7/8” width, and projects1-9/16”.  The lock retrofits the Folger Adams FD 310-5.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Von Duprin 900850 Latch Cover Screw Package is used on the 22, 33, 35, 98 and 99 Series surface vertical rod latch covers.  The are sold in packages of 2 screws.

Von Duprin 6111 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices. The model 6111 retrofits model number VD 3031, and measures 1-5/8” wide, 6” high and has a backbox depth of 1-3/4”.    Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

Von Duprin 880/990 Trim Hex Stud

This is the Hex Stud used on the 880 and 990 Trim Plates. The threads are 7/32-24. Overall lenght is 2"

Von Duprin Part # 956760

Von Duprin 8827 Top Rod Connector

Inserts into rod so the latch can connect to the rod. The top vertical rod does not ship with the top rod connector!

Von Duprin Part # 050279
Old Part # 960577

The Von Duprin 338 Strike measures 1-5/8" by 1-7/8" with a 5/8" projection.   The screw mounting is 1-7/8".   This strike is used as a bottom strike on the Von Duprin surface and standard equipment there concealed vertical rod devices 3347, 3547, 5547 8847, 9847 and 9947.

The Von Duprin Panic Device 230TP Trim is for use on the 22 and 2227 series only.  The key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 12-1/16" with a plate thickness of 3/32".

The Von Duprin Tail Piece Guide Lead Kit Package Of 10 - 050156 is used to guide rim cylinder tail piece into the back of the Von Duprin 22, 33A, 98, and 99 exit devices.  We sell these in bags of 10 pieces.

Slot is 5/16" x 3/16" x 1" long
Von Duprin Part # 050156

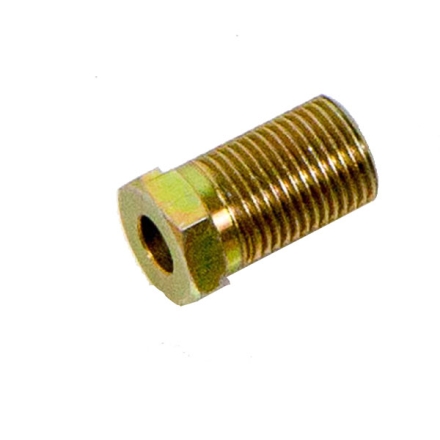

Von Duprin 050538 EL Dogging Rod Retainer

Fitting threads into the 050536 HD EL Solenoid and connects to the Dogging Rod

#5 On Diagram

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware.  This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.  The screw is a 5/16-18 x 5/8 hollow set point.

Von Duprin Part # 090081

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

The Von Duprin Panic Device 230NL Trim is for use with the 22 Rim and 2227 Surface Vertical Road devices.  The key locks and unlocks the panic bar. The plate measures 3" wide by 12-1/16" high and has a plate thickness of 3/32".

Von Duprin 8827 Bottom Rod Connector.

Connects bottom rod to the bottom latch. The Bottom Rod Connector is included with the Von Durpin Bottom Rod.

Von Duprin Part # 050327
Old Part #960578

Von Duprin 6112 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6112 has a 3/4” latch bolt throw, 9” face plate length, 1-5/8” width, and an 1-3/4” backbone depth.  The lock retrofits the Folger Adams FA 310-4.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Von Duprin Strike 385A is used on the floor for the Von Duprin 2227, 8827, 9827 and 9927 Surface Vertical Rods. Von Duprin recommends this strike if you are mounting the bottom strike in wood.  The strike face plate outside dimensions are 2-1/4" x 2-1/4" with an inside dimension of 1-1/8" by 1". This floor strike features a bolt that can be cemented into the floor.  This is an optional strike when added security is needed.  Zinc plated finish.

Von Duprin 88 NL Cylinder Cam

Von Duprin part # 951970 and 050502

The Von Duprin Old Style Dogging Shaft was used on devices manufactured before July 1997.  The Shaft measures roughly 1-1/2" long with a 1/2" diameter.  The hex is 5/32".

Von Duprin Part # 968112

Von Duprin Exit Device 47 Bottom Latch Kit 050493

This Von Duprin Concealed Bottom Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050493
Von Duprin Old Part # 106780

Von Duprin 090069 33/3547 99/9947 Ratchet Lever Spring (2)

One of two springs located in the 33/3547 and 98/9947 Top Latch 050492.  Sold in packages of 2.

Von Duprin Part # 090069

The Von Duprin 2227 Bottom Latch 050090 replaces and updates all 2227 bottom latches to the new style if you device was shipped before October 1998. If your device was shipped after October 1998 then use the G050401.

Includes screws and bracket

Von Duprin Part # 050090

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

The Von Duprin 3348/9948 Bottom Latch Kit 050495 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces previous versions of the 33/3548 and 98/9948 bottom latches.

Von Duprin Part # 050495
Von Duprin Old Part # 112907

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods.  This part is used on the 5547 Concealed Vertical Rod only.

Von Duprin Part # 900539

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864

The Von Duprin Panic Device 210DT Trim is part of there economy series trims.  This trim is just a pull, but will line up with the chassis mounting holes of the 22 and 2227 devices.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Von Duprin 050709 Dogging Assembly is used to update the Von Duprin 22, 33, 35, 98 and 99 device shipped before 1997.  The dogging key on this assembly is 5/32", and you would want to use the longer version of our 88R60 dog key.

Von Duprin Part # 050709
Old Part # 050153

The Von Duprin 2227 Top Latch 050091 latch is used on devices shipped before October 1998, see related products for the new style latch if your device is newer. This is usually the problem if your bottom rod is dragging on the floor.  Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

The Von Duprin 9927 Top Latch 050091 used on all the Von Duprin 9827 and 9927's. Replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050400.  This is usually the problem if your bottom rod is dragging on the floor. Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

The Von Duprin 55 Dog Screw-090053 is the newer version, meaning less then 25 years old.  It measures 3/8" diameter by 1/2" long with 14 threads per inch.  They did have an old style that was available up to a few years ago that had 15 threads per inch.  If you have any old style I would recommend the D100 Panic Bar Retainer.

Von Duprin part # 090053

The Von Duprin 970321 299 Strike Shim is for use with the Von Duprin 299 and Falcon FA299 strikes.   The plate measures 2-7/8 x 1-1/4" x 1-16" thick.   The product is sold individually.

The Von Duprin 900581 Cylinder Cup and Tail Piece Assembly is used on just about everyone of their devices outside tirm.
