The Von Duprin 55 Center Case Axle 090050 is used on the Rim Panic Hardware only.  The Rim device is one that has a latch bolt sticking out of the housing.

Von Duprin Part # 090050 or 090022

The Von Duprin Old Style Dogging Shaft was used on devices manufactured before July 1997.  The Shaft measures roughly 1-1/2" long with a 1/2" diameter.  The hex is 5/32".

Von Duprin Part # 968112

The International Door Closer 851P Series is not a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.   The 851 meets the size 1 ADA requirements.

3/4" x 6-3/8" mounting holes

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

The Von Duprin 2227 Bottom Latch 050090 replaces and updates all 2227 bottom latches to the new style if you device was shipped before October 1998. If your device was shipped after October 1998 then use the G050401.

Includes screws and bracket

Von Duprin Part # 050090

The Von Duprin 3348/9948 Bottom Latch Kit 050495 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces previous versions of the 33/3548 and 98/9948 bottom latches.

Von Duprin Part # 050495
Von Duprin Old Part # 112907

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods.  This part is used on the 5547 Concealed Vertical Rod only.

Von Duprin Part # 900539

The Von Duprin 99 Cover Mounting Bracket is used on the 98 and 99 Series Covers.

Part # 050564
Old Part # 969864

The LCN Door Closer 4041XP-Hw/PA is the 4040XP, eXtra Protection closer with the 4040XP-3049 Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the friction hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, push, pull or top jamb mount.  The hold open point is adjustable by loosening or tightening the hold open nut on the arm.

The Von Duprin 050709 Dogging Assembly is used to update the Von Duprin 22, 33, 35, 98 and 99 device shipped before 1997.  The dogging key on this assembly is 5/32", and you would want to use the longer version of our 88R60 dog key.

Von Duprin Part # 050709
Old Part # 050153

The Von Duprin 2227 Top Latch 050091 latch is used on devices shipped before October 1998, see related products for the new style latch if your device is newer. This is usually the problem if your bottom rod is dragging on the floor.  Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

The LCN Door Closer 4041XP-HCUSH is the 4040XP, eXtra Protection closer with the 4040XP-3049HCUSH Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the CUSH hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, but it has to be mounted in the push side of the door is a parallel arm type application.

The Von Duprin 970321 299 Strike Shim is for use with the Von Duprin 299 and Falcon FA299 strikes.   The plate measures 2-7/8 x 1-1/4" x 1-16" thick.   The product is sold individually.

The International Door Closer 854P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 42” interior or 36” exterior doors.

3/4" x 9-1/16" mounting holes

The International Door Closer 883P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53

3/4" x 8-3/16" mounting holes

The Von Duprin 900581 Cylinder Cup and Tail Piece Assembly is used on just about everyone of their devices outside tirm.

The Von Duprin 248L-4 Strike is used as a Bottom Surface Mounted Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 248L-4 strike measures 9/16" wide by 2-1/2" high with a hole spacing of 1-7/8. The strike projects out 3/8".  Ships with shim and mounting screws.  Burnished steel construction.

Von Duprin Part # 248L-4

Von Duprin 8827 Chassis Tie Rod Pkg 050328

The 8827 Chassis Tie Rod Package is the rod that goes through the top and bottom latches. The Tie Rod is held in place by the Special Chassis Nut. The Tie Rod measures 1-3/8" long by 3/16" diameter.

Von Duprin Part # 050328
Old Von Duprin Part # 967616

The Von Duprin 050671 and 050814 solenoid have been discontinued.  All of our stock is gone.  Von Duprin has come out with a retrofit kit to update your E996 Lever to the M996 Lever. The kit changes out the solenoid for a mortorized version, more robust and uses less current. The newer version can be found by searching for M996.

This solenoid is used on the E996 Electrified Lever Trim.  The Solenoid body measures 1-3/8” x 9/16” diameter, mounting bracket has a 3/4” on center hole spacing.  The wiring harness has a two wire plug.  We some times fine the number 991342 on the solenoid.

New for 2024 Von Duprin has come up with a Mechanical Electrified Conversion kit. This kit converts the EL Solenoid to a Mechanical Electrified Trim.  More information can be found @ https://www.robertbrooke.com/von-duprin-m996l-retrofit-kit.html

Von Duprin Part # 050814
Von Duprin Part # 050671

Von Duprin 386NL Dummy Trim

This Von Duprin 386NL Night Latch Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386NL Night Latch Trim is handed. Uses a standard Rim Cylinder.

Von Duprin 6113 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6113 has a 3/4” latch bolt throw, 6” face plate length, 1-5/8” width, and an 1-15/16” backbone depth.  The lock retrofits the VD 3011 and VD 3021.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Von Duprin Panic Device Keyed Mullion Retrofit Kit KR54 is used to convert the 1654 and 4954.  Keyed Removable Steel Mullions makes removal faster and easier by a single operation of the mortise cylinder. Once mullion is removed, large equipment or furniture can freely pass through the opening. The unit will self lock when re-installed, without use of the cylinder key. Uses a 1-1/4´´mortise cylinder with a straight cam (Schlage cam reference B502-191). Cylinders are sold separately.

Von Duprin Part # 050168

Von Duprin 050537 HD-EL Solenoid Plunger

#5 On Diagram under "More Views". Measures 3" long x 7/8" diameter.

Works On The Von Duprin 33A/35A And 98/99 Exit Devices

No longer Available

The Adams Rite EX88 Interlocking Rim Exit Device is designed for heavy duty use on narrow stile aluminium door applications. The EX88 has a unique latch bolt design that interlocks with the frame of the door. This device is non handed, requires a minimum stile width of 2" and will work on aluminum, hollow metal or wood doors.The device is constructed of extruded aluminum with matching metal angled end caps. To order specify your door width, and the color.

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

Von Duprin Exit Device 992L Hex Stud

This is the Hex Stud used on the 992L Lever Trim and the 991K Knob Trim. The threads are 1/4-20. Overall lenght is 1-3/4"

Von Duprin Part # 971440

This Von Duprin Strike 304L Bottom Strike is used for the bottom latch of the 2227, 8827, 9827 and 9927. The strike measures 1-7/8" by 1-7/8" out dimension of the square flange, with an inside dimension of 1-1/8" by 1-1/8". The part that is inserted into the floor is 1-5/16" x 1-5/16" and drops down 13/16". Also known as a Von Duprin Floor Mounted Mortise Strike.

Von Duprin Part # 304L

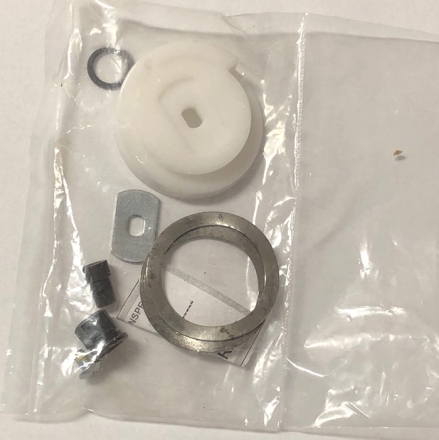

American Exit Device 60 Series and Dorma 8000 Series Dogging Assembly

This is the assembly that keeps the latch bolt retracted when the hex key is tightened.

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

The International Door Closer 853P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and whether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 32” interior or 28” exterior doors.

Direct replacement for the older style Norton 1602 and 1603, and Yale 52 and 53, that had the 3/4" x 8-3/16" mounting holes

The Von Duprin Panic Device 230 DT Trim will work on the 22 and 2227 series only.  When the exit device is dogged open, the plate is operational.  The plate measures 3" wide by 12-1/16" high with a plate thickness of 3-/32".

The Von Duprin 3348/9948 Top Latch Kit 050494 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces all previous versions of the 33/3548 and 98/9948 top latches.

Von Duprin Part # 050494
Von Duprin Old Part # 112906

The 855 has been discontinued.  If you order it the 885 will be sent, it is the same door closer, but features back check.

The International Door Closer 855P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 48” interior or 42” exterior doors.

3/4" x 9-1/16" mounting holes

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".
