This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”

The International 300 Series Adjustable Power Door Closer is one of there new closers to meet ADA requirements.  With this door closer you can adjust the spring tension, closing and latching speed, even after it was installed.  The Spring Power is adjustable all the way down to 8-1/2 pounds of resistance, making it ideal for areas with the elderly and children.

Hydraulic Cylinder only

3000-B-310 105 with Hold Open
3000-B-311 105 with No Hold Open
3000-B-312 90 with Hold Open
3000-B-313 90 with No Hold Open

With the Handicap Door Pull 119 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Also known as the Double Arm Pull it is constructed of aluminum, brass or stainless steel stock.   It measures 8-1/2" overall length and has 5-1/4" centers on the mounting screws.  The flat bar stock is 3/8" x 1", and the round mounting post is 3/4" diameter.  Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

Gravity Door Coordinator

The Ives COR7G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR7G-26D for use on pairs of doors with astragal on active door up to 4' or with astragal on inactive door up to 3'4" or with astragal on both doors up to 2'10" Brushed Chrome Finish.

Ives part # COR7G-26D 7" Arm Projection

The LCN Door Closer Hold Open Head And Tube 3048 - 3048L.  As the arm rotates the pivot point threads close on to the mounting bracket face and create a friction catch.  If yours is new, try rotating the mounting plate 180 degrees so the threads tighten as it closes. This replacement part from LCN either breaks or wears out.   The material some times wears out due to the friction of open and closing.  But the biggest issue seems to be the point where the tube mounts to the cast iron connector.

Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. Model Available here are the:

1260-3048
1260-3048L
1460-3048
1460-3048L
4010-3048
4010-3048L
4020-3048
4020-3048L
4040-3048
4040-3048L

The International Door Closer 44CI Adjustable Spring Power is one of there heaver duty closers.   It is designed to line up with the LCN 4040 hole spacing at more than half the price.  It features a rugged cast iron body with a forged steel arm.  It also uses all weather fluid, is non handed and is non sized, meaning you can adjust the door for any size door.  The door closer we are selling here come with a regular arm and parallel arm bracket, so the closer can be mounted on the left or right, push, pull or top jamp.  The closer has 4 adjustments, closing, latching, and back check valves, a long with a spring power adjustment.

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

Gravity Door Coordinator 9"

The Ives COR9G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

The Norton Door Closer 8501 is sometimes called the Omni Door Closer.  This door closer features a cast aluminum body, is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  This closer is a non sized closer, meaning you adjust the spring tension to meet closing requirement for a ADA Barrier Free application all the way up to a 48” exterior door.  You cover might have 8501/8501BF 3501/3501BF, but the new version will cover the BF and non BF closers.  The difference between this closer and the 8301 is the size of the plastic cover.  The 8301 has a slim cover, and the 8501 has full cover.  The hole spacing on this door closer is 3/4” x 12”.

4" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 3-3/8" to the Floor when mounted.

Floor Door Stop / Holder FS40

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" High

The Door Pull Offset 3/4" Diameter #29 is constructed of either solid, Aluminum, Brass or Stainless Steel. The handle 3/4" diameter tubing with a 2-1/2" projection and 2-1/2" offset.  We find these on narrow stile aluminum framed glass storefront doors.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The Dorma RTS88 Door Closer is an overhead concealed closer for both single and double-acting doors.  It is one of the more popular overhead concealed closers on the market today.  The RTS88 will consist of a steel cam, rollers, and springs housed in a compact cast iron body.  Closers will be capable of being installed in minimum 1-3/4" x 4" headers. RTS88 will have maximum door opening to 90º or 105º, trim conditions permitting. Sweep and latch speed will be controlled by two noncritical adjustment valves from 90º or 105º to closed. Built-in pressure relief valve will protect the closer from abuse caused by forced closing. A mechanical backcheck combined with a positive stop at 90º or 105º will be provided to protect the door and frame. The RTS88 closer will be available with hold open at 90º or 105º, or without hold open. The product shown here is just the replacement cylinder.

TH1116 Aldora Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

The Door Pull 25 is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. The handle has a 2-3/8" projection from the door, and 1-5/8" clearance from the door to the back of the handle.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The Corbin 100, 110 and 120 Door Closer are no longer available. They have been replaced by the DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 100, 110 or 120 door closers. The DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.

The Brushed Stainless Steel Door Kick Plate 16 Gauge .050 is the most popular.  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We use type 304 stainless

Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.23 per square inch depending quantity

Please allow 1 week shipping time

The Polished Stainless Steel Door Kick Plate is 16 gauge, or .050″ thick. Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  We often have people looking for Brushed Chrome or Polished Chrome, but the appearance of the two finishes next to each other is very difficult to tell which is which. Also a brushed chrome or polished chrome kick plate would be a brass plate which is then chrome plated and brushed or polished depending on the plate. Brass is a soft metal that dents easily, and also does not offer the corrosion resistance that stainless steel does. Since stainless steel is stable in any environment, they do not have to clear coat the plate.

Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws.  The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Custom sizes available starting around $0.37 per square inch depending quantity.

Please allow 1 week shipping time

The Brushed Stainless Steel Door Kick Plate 18 Gauge .037 is the lightest duty stainless steel plate we offer .  Stainless steel offers one of the best material for commercial applications. They are very hard, and do not dent easily. The also offer the best corrosion resistances out there.  This plate is ideal as a replacement for Brushed Chrome kick plates. Brushed Chrome Kick Plates are usually a bronze plate that is chrome plated. The problem with bronze is it is a soft metal and dents easily. The stainless steel plates are a lot harder and more resistant to dents. Brushed chrome looks identical to brushed stainless steel.  We only use type 304 stainless.

 Stainless Steel Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut Stainless Steel screws. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

 You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended. Stainless Steel plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes.  Stainless Steel is very hard and a drill press would be recommended. You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

 Custom sizes available starting around $0.22 per square inch depending quantity

 Please allow 1 week shipping time

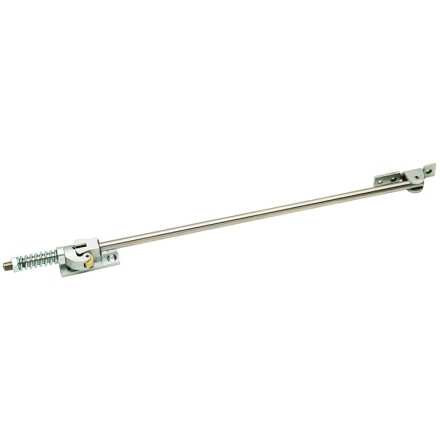

Glynn-Johnson 70 Series Overhead Door Holder Surface Mounted are constructed primarily of Brass and 300 series Stainless Steel substrates, with several components fabricated of Steel treated to resist corrosion. Models in the 70 series utilize a 1/2"-diameter stainless steel bar, while the 79 series uses a 3/4" stainless steel bar. The bar is always provided in US32D. The spring, washer and nut are provided in a clear zinc finish.

GJ70-79 Catalogue

The Surface Mounted Glynn-Johnson 90 Series Overhead Door Holder are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with barrel nuts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation.

GJ90 Catalogue

The Glynn-Johnson Overhead Door Holder 100 Series Concealed Mounting, provide the most reliable and versatile concealed overhead door control. They are designed for installation on virtually all types of doors mounted on conventional type butt hinges, pivots, continuous hinges, swing clear hinges and numerous other specialty hinges. When used in conjunction with many surface-applied door closers, Glynn-Johnson 100 series holders and stops provide the most effective control for entrance doors and vestibule doors of all types, as well as heavy or often used interior doors. Templates provided allow for variable mounting positions, ranging from 85° - 110° of opening.

Painted finishes are also available. Please Call 1-800-642-2403

GJ100 Catalogue

4-1/4" long

Dorma part # AM385A

Yale 7110 Bottom Latch 60-7010-0054-000

Arrow BM385A Spindle

3-3/4" long

Dorma part # BM385A

Jackson 1095 Gear Package

Jackson part # 30-852

Rubber Shoe for DH6000

Replacement rubber shoe for the GDH6000

Swivel spindle, 20 tpi,
4-3/4" long, two 3/8"
removable centers

Doromatic 1690 / 1990 ES Top Latch PB131

Doromatic Part # 4270100316

Sargent, 4-3/4" swivel spindle,
solid centers, w/ pin holes

Adams Rite Dogging Assembly

Adams Rite Part # 31-0265

Swivel spindle
9/32" square, 16 tpi
4-3/4" long, w/ two solid centers

Dor-o-matic 1590 Cylinder Assembly 159CA-HB

Doromatic part # 159CA-HB

Jackson 1095 RH Backplate Assembly

Jackson Part # 30-846

Dor-o-Matic 1490 HB Cam Assembly

Doromatic Part # 4270107270

Parts Break Down
