The Surface Mounted Glynn-Johnson 90 Series Overhead Door Holder are the most rugged models available for heavy-duty applications. The channel is surface-mounted to the door, most often with barrel nuts, and the jamb bracket is surface mounted to the jamb, requiring minimal door and frame preparation.

GJ90 Catalogue

The ALREX hinge is a full function hydraulic door closer hinge. It contains all the features of a door closer, closing and latching speed control, power adjustment, and optional hold open feature. They are available in 4, 4.5 and 5 inch (leaf height), and are currently available in Stainless and Black finishes.

Package includes 2 hydraulic closer hinges and one dummy, for a standard 3 x 7 foot door, 100 pound door.

Door Handing:

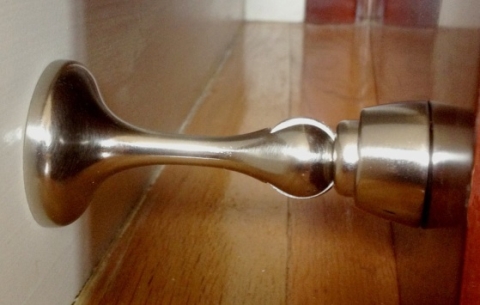

Magnet Door Stop

Hands-free magnetic door stop/holder. All you need to do is open the door and a strong maget will keep it open until you close it. Mounts horizontally or vertically. Includes fasteners plus 1 concrete and 3 hollow wall anchors.

Not for use on doors with spring hinges or door closers.

The Door Pull Handle 12 has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

International Door Closer T5 Push Pull Back to Back Mounting Screw is used on the PB-2000, PP-2000 and the PH-4000. Overall length is 3-3/16 inches including the head, and has a 3/8 inch diameter. The head has a 7/16 diameter and stick out 5/8 inches.

Adams Rite Old Style Dogging Pin 24-0730

This Adams Rite part is a replacement for worn or stripped dogging pins. The pin has a 1/8" allen head hex.

Adams Rite part # 24-0730

Ives FB61P Constant Latching Flush Bolt for Wood Doors

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

The Handicap ADA Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

Detex EAX-300W Weatherized Battery Powered Door Prop Alarm

The Detex EAX-300W Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.  The Weatherized version is designed for doors that open to the outdoors or environments.

Cylinder not included!
Uses a standard 9 volt battery

Detex EAX-300 Installation Instructions

8" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 7-3/8" to the Floor when mounted.

 Made by Grand Specialties 608z

12" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed rubber shoe can be adjusted down as the rubber shoe wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 11-3/8" to the Floor when mounted.

 Made by Grand Specialties in USA Part # 612z

Door Finger Protector - Interior Pull Side

These patented door guards fold against the jamb, allowing them to swing completely 180 degrees. The guard is attached to the face of the door and frame with the provided strong adhesive tape. Clear-frosted color to compliment any color scheme. Finger-Gard for use on Interior Doors, on the pull side. Available in 54" or 78" lengths.

Part number GFG3 for 54" length, and GFG4 for the 78" length

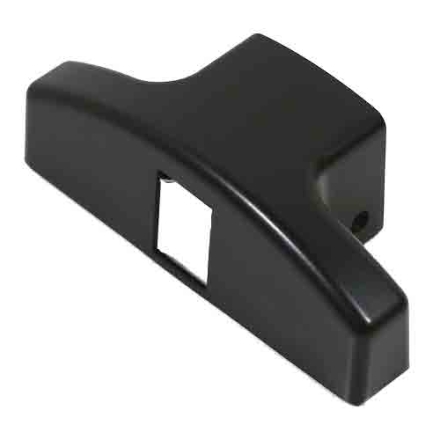

Dor-o-Matic 1790 Center Case Cover.

Replacement Center Case Cover by Falcon Dor-o-Matic is made of die cast metal, then electro-statically painted black.   Cover includes mounting screws.

Doromatic part # COVER.120 or PB329

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

Door Finger Protector - Exterior Pull Side

This model is specifically designed for exterior doors on the pull side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG7 for the 78" length, and GFG7+ for the 83" length.

Cal Royal A2200 Series Rim Device

Grade 1
Non handed
3/4" latch bolt throw
Heavy gauge steel, painted

Devices available for 32" and 24" wide doors. Please call 1-800-642-2403 for more information

The 594 is constructed of solid brass. The latch bolt is 5/8 inch half round with a 9/16 inch throw.  The bolt ships with mounting screws and strike. The latch bolt has a chamfered end to draw the door in.

Double Door Latch for doors without a center post. Shown with out lock. Optional lock is just to prevent theft.

Yale 757 Strike for 7000 and 2100 Devices

Used on the Yale 7100, 7150, 7200 and the 2100 Exit Devices.  Furnished in a Black Finish.  We ship the 757F Strike as a  replacement, all the measurements are the same.

Yale Part # 757

Floor Door Stop / Holder FS42

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF42A or F42A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS42. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-1/8" to 1-9/16"
Holder Dimensions 3" Wide x 3-11/16" High

The Glynn-Johnson 81 Series Overhead Door Holder Surface Mounted provide rugged, heavy-duty door control. The jointed-arm design provides the most effective stop mechanism available. The shock absorber bracket is surface mounted, usually with sex bolts. The jamb bracket is mounted to the stop of the frame, so a minimum of door and frame preparation is required.

GJ80 Catalogue

Ives RLPART.1045 RL32 Nylon Roller

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

Falcon 25-V Vertical Rod Panic Device

The Monarch Falcon 25-V is designed for high-traffic applications were added strength and durability are required.  The device includes all strikes and mounting screws required for installation.  Available in 3' and 4' devices, the 3' device is for doors 30" to 36", the 4' device is for doors that are 37" up to 48" wide.  The vertical rods furnished with this device are for doors up to 7' tall, if your doors are taller, please contact us.

Floor Mounted Door Stop 535

Cast Brass or Bronze construction
2-1/2" diameter base x 3-1/8" high
Fasteners included

Von Duprin 6113 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6113 has a 3/4” latch bolt throw, 6” face plate length, 1-5/8” width, and an 1-15/16” backbone depth.  The lock retrofits the VD 3011 and VD 3021.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Cal-Royal 6660 Surface Vertical Rod Device is a Grade 1 exit device.  It is designed for doors that have at least a 3-3/4 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

4" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 3-3/8" to the Floor when mounted.

Floor Door Stop-Security  FS18 is designed for areas of high vandalism.   The molded rubber is flame resistant and mounted to a 5/8" threaded mounting shaft.  Once the 7/8" diameter hole is drilled to a depth of 2-1/2" it can be grouted in concrete and leaves no exposed fasteners.  The recommended grout is Thorogrip.  They are ideal for jail or security cell areas.  There are two versions of this door stop one projects 1-1/2" (FS18S) out of the floor and the other 3" (FS18L).

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

The Command Access MLRK1-VD22 is a motorized electric latch retraction with REX for the Von Duprin 22.  This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD22 is a cost-effective and straightforward way to upgrade your Von Duprin 22 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

Cal Royal 2000 Alarmed Exit Device
Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to swich to continuous alarm. The key switch to turn the alarm off is a standard 1” cylinder with “C” keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latch bolt for full proof security.

Unit includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND” decal for application on door or unit.

Ives RLPART.1025 Roller and Rivet for RL30/RL1152

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

Sargent Exit Device 80 Series Metal End Cap And Bracket

Use this end cap to replace all older versions and plastic end caps. It is much stronger then the orginals, more impact resistant.

sargent part # 565

Saddle Threshold 613 - 6" Wide By 1/4" High

Extruded aluminum construction. The thresholds are shipped with mounting screws (#10 x 1-1/2" FH zinc plated wood screws), Milled aluminum finish. This is considered a Handicap Saddle Threshold.

Other sizes and finishes are available, call for more information.

Air shipment is not available on this product. Please allow 7-10 days for delivery.

The Von Duprin 22 Center Case 109012 has been around for almost 40 years.  This case will replace all of the non fire rated center cases, meaning all of the devices that have a hex key dogging assembly on the hinge side cover plate.

Von Duprin Part # 109012

The Cal Royal GLS7700 Rim Device is for use on Aluminum Framed Glass Doors when the Stile width is 1-3/4 inch or more.  The exit device ships with wood and machine screws, along with the Strike plate.  The stainless steel latch bolt has a 3/4 inch throw. This device is a Grade 1, which is the heaviest duty rating.
