Search results for: 'bolt trim 8301 screw t door cover'

Door Finger Protector - Exterior Pull Side

This model is specifically designed for exterior doors on the pull side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG7 for the 78" length, and GFG7+ for the 83" length.

LCN Sentronic Door Closer 4310ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a three prong plug, the white plug is a two prong plug.  Specify voltage, 24 or 120 volts.

LCN Part # 4310ME-3351

Corbin Russwin DC8210 Door Closer
Applications
High-quality products and innovative designs are the foundation for the long
history and reputation of Corbin Russwin Architectural Hardware. That tradition
continues with the Grade 1 DC8000 Series door closer, the perfect choice for
high-use openings and doors that must meet ADA requirements. A variety of
arms, finishes and quality features make the easy-to-install DC8000 ideal for
schools, office buildings, health care facilities and retail complexes.

Detex EAX-300 Battery Powered Door Prop Alarm

The Detex EAX-300 Series is designed for applications where doors may be used for egress or ingress, but may not be held or propped open. Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size makes installation quick and easy.

Cylinder not included!
Uses a standard 9 volt battery

Detex EAX-300 Installation Instructions

Single Right Door Latch -- Rests firmly against door jamb. Shown without lock. Optional lock prevents theft.

The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55.  The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100).  When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door.  Measures 15/16" long by 13/16" diameter.

Von Duprin Part #090021
Old Part # 965676

The Corner Guard 301 are a great way to protect corners and edges of doors.  Fabricated from 16 gauge (.050") thick metal they measure 1" on one arm and 1-3/4" on the other, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. This product is ideal for high traffic or areas of high abuse.   They come standard with screw mounting, but other options are available.

Screws included for mounting

Finishes

The Falcon OHC100 and OHC101 Door Closer Body Only are designed for a wide variety of Doors.   The OHC100 is for use on larger exterior doors and has spring size adjustments of 3-5.   The OHC101 is designed for smaller or interior vestibule doors, with an adjustable spring size of 1-3.

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

The Ives Wall Door Stop WS443 has been a staple of the Ives product line for at least the last 45 years.  The stop features cast brass construction and then plated the the desired finish, which makes it ideal for interior or exterior use.   The rubber tip is a non marring rubber, that can be replaced and we keep in stock.  The stop has a 2-1/4" base diameter and a 3-11/16" projection from the wall.  This product ships with an expansion shield and lead shield.

The Duranodic Aluminum (Dark Brown) Door Kick Plates are dark bronze or brown and match the Dark Brown color we find on Storefront doors.  These plates have an aluminum base metal, which is 18 gauge (.040") thick that is then Anodized in the Dark Brown Color.  These plates relatively inexpensive.  Custom sizes are available, they run about $0.25 per square inch.

You can order these plates with tape mounting, but on larger plates and especially plates with a stainless steel base metal, it is not recommended.  Stainless Steel plates are too heavy and they most likely will not stick.  We can also ship them with no holes, if you want to drill your own holes.  This is fine on the Brass and Aluminum base metals, but again Stainless Steel is very hard and a drill press would be recommended.   You can glue them on, I would recommend liquid nails, and come C Clamps with the door on saw horses.

Double Door Latch for doors without a center post. Shown with out lock. Optional lock is just to prevent theft.

Double Door Latch for doors without a center post. Shown without optional lock. Lock prevents theft.

Dorma 8616 Door Closer

The Dorma 8616 door closer series is a non-handed surface applied door closer with adjustable spring power and back check positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

LCN Sentronic Door Closer Rod 82

This LCN Rod will work on most Sentronic Door Closers.
LCN part # 4040SE-82

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

Falcon / Dor-o-Matic EL1790 Panic Device

The same as the Falcon / Dor-o-Matic 1790 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

1 amp, 24 volt

Replacement parts are also available

Shipped with all screws and strikes.

Floor Dome Door Stop 1" Height FS436

We ship the H.B. Ives FS436 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1" and a base height of 3/16".

The CRL PR90 is a Grade 1 door closer, the heaviest rating possible.  The template is the same as the LCN 4040 with the same features, latching speed, closing speed, back check and power adjustment from size 1 ADA compliant to size 6.

We offer the Standard Cylinder PR90 and also the Delayed Action PR92. Delayed Action will hold the door open for 15-20 seconds to allow handicap individuals to clear the opening before the door closes.

Floor Mounted Door Stop 535

Cast Brass or Bronze construction
2-1/2" diameter base x 3-1/8" high
Fasteners included

Product Description & Features
• Total Projection: 4-1/8" (105mm)
• Mounting Requirements:
1-1/2" (38mm) deep adapter housing
• UL listed door holder

Cal Royal 700 Series Door Closer

Adjustable closing and latching speeds
holes spacing  is 3/4" x8-3/16" for sizes 2 and 3, and 3/4 x 9-1/16" for the size 4.   Size 2 is ideal for reduced power on interior doors, size 3 will be more powerful.   Word of warning, the larger the spring size the harder it is to open the door.
Powder Coated Painted Finishes
5 year warranty

The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

Hager 5100 Series Door Closer

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy duty, high use and abusive environments. Hager door closers are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty.

The 5100 matches the hole spacing of the LCN 4040 or 4040XP

Monarch / Falcon 24-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

• Hand: Non-handed.
• Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
  US32 (629); US32D (630); US28 (628), 313AN.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-3⁄4" maximum, 2” dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine
  screws standard.
• ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
• Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

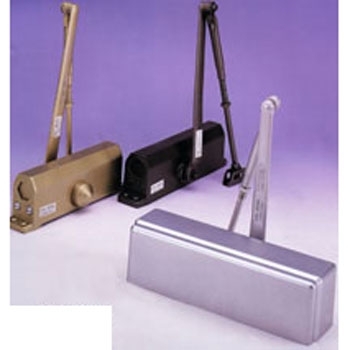

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

Falcon 25-V Vertical Rod Panic Device

The Monarch Falcon 25-V is designed for high-traffic applications were added strength and durability are required.  The device includes all strikes and mounting screws required for installation.  Available in 3' and 4' devices, the 3' device is for doors 30" to 36", the 4' device is for doors that are 37" up to 48" wide.  The vertical rods furnished with this device are for doors up to 7' tall, if your doors are taller, please contact us.

The Jackson 1085 Panic Device is one of a few original manufactures of Panic Hardware for aluminum framed glass doors, or storefront doors.  The 1085, 1095 along with their door closer the 20-330 were installed on about half of these doors in the 1970's and 1980's.  They were installed on Vistawall and Kawneer doors just to name a few.  Universally recognized as the standard for aluminum storefront hardware it is made of high tensile strength aluminum.  The device is Non Handed, Comes with 45" cross bar that is easily cut in the field.  Also includes the Concealed Vertical Rods, Screws and Strikes.

Replacement parts are available, in stock!

Dor-o-Matic Door Closer Regular Arm Only. This is the standard regular arm for the SC60, SC70, and SC80 Doromatic Door Closers

Doromatic part # SC60 - SC60-3077/PA, SC70 - SC70-3077/PA, SC80 - SC80-3077/PA

Choose Color and Doromatic Falcon Model Number (Function)

The Barracuda DSO-PB is for use on Out Swinging 36" Doors with Exit Devices.  It is constructed of heavy duty steel with a durable powder coated finish.  The bar goes across the door frame and grabs the mounting cleat with an adjustable clamp.  To secure the door, simply turn the handle until it is secured.  They currently offer two models, one for jambs up to 5-3/4" and one for jambs greater than 5-3/4".  This device ships with all of the hardware and a wall mounting rack for storage.

Door Pull 30

10" centers
11" overall
2-7/8" projection
1-3/4" offset

The Von Duprin 8827-F Top Latch Kit 050462 is the Top Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Duprin Part # 050462
Old Part # 102676

Single Left Door Latch -- Rests firmly against door jamb. Shown without optional lock. Lock prevents theft.
