The Jackson 201129 Track is used with the offset arms of the 20330 Door Closer.  The track measures 1/2 inch thick by 1-9/32 inches wide by 12-7/8 inches long. We can no longer get just the track.  This item will now include the arm.

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

The Von Duprin 3348/9948 Top Latch Kit 050494 is used on the 33A, 35A, 98 and 99 exit devices.  Replaces all previous versions of the 33/3548 and 98/9948 top latches.

Von Duprin Part # 050494
Von Duprin Old Part # 112906

Replacement End Cap and Bracket for the Cal-Royal 2200 Rim and Vertical Rod Exit Devices

Yale 759 Strike for the 7250 Devices

Used on the Yale 720X Exit Devices.  The Strike measures 2" wide by 3" high and 1/2" thick. Furnished in a Black Finish.

Yale Part # 759

The Detex D Lever Trim is used on the 10, 20, 21 and 27 Series exit devices. The D Lever is designed to be as heavy duty as their exit devices. It features a break-away lever to prevent damage. The escutcheon measures 2-3/4 x 9-1/16 inches, with a plate thickness of 7/8 inch. We ship the classroom function, which locks and unlocks the lever.

The Von Duprin 050400 Top Latch is used on the 2227, 3327A, 3427A, 9827 and 9927 exit devices. It is used the Fire-Rated along with the standard Panic Devices.  The 050400 is sold without the the Mounting Bracket, if you need the Mounting Bracket you can order the 050546, or order the G99VR10 (050091) which will come with the Bracket. This latch is for use on devices shipped after October 1998. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.

Von Duprin Part # 050400

Von Duprin Exit Device Lever Trim Shear Pin Kit

This is the component that is designed to break, if the lever handle is forced to open , this pin snaps so your trim is not destroyed. 3/16" diameter shaft by 5/8" overall length. Retaining Ring included. This shear pin is used on the 230L, 360L, 992L, 994L and 996L Von Duprin Lever Trims.

Von Duprin Part # 050611 Old Part # 971583

The Door Pull Plate 5810 is 7/32" thick forged plate made of solid aluminum, brass or stainless steel depending on the finish. The Door Pull GHE10, handles come with thru bolts and finish washers. The plate has counter sunk holes and sheet metal screws for mounting. 3-1/2 x 15 inch plate only.

Finishes

Von Duprin 050519 33/3547A/48A Adjustable Top Rod

Replacement Von Duprin 33/3547A/48A Adjustable Top Rod for 6'8" to 8'4" doors.

Von Duprin Part # 050519

The Cal Royal GLSRIM9800 is an Entrance Function Lever Handle for the GLS7700 and GLS9800 Narrow Stile Rim Exits.  The Base measures 1-3/4 inches wide by 8 inch tall, with a 2-3/8 inch thick base.

Sargent 60/80 Push Bar Pins-Long Pin

Also known as the channel axle or pin. This is the pin you see on the exit device channel, the wider of the two pins.

2-3/16" LONG

Sargent part # 68-0230

Von Duprin 050536 HD-EL Solenoid

Electric Latch Retraction for Von Duprin Exit Devices with Hex Key Dogging.  #4 on the diagram below large picture.

Von Duprin part # 050536
Old Part # was 110740

No longer available, the only solution we have at this time is to upgrade to the HD-QEL Base Plate.

The Door Push Plate 89 is drop forged plate that is .125" thick, and is made of Aluminum, Stainless Steel, Bronze or Brass, depending on the finish.  The plate measures 3-1/2" wide by 15-3/4" long with a 1" projection.  This plate is considered a combination push pull plate.    Package ships with matching mounting screws.

Finishes

The Von Duprin 2227 Top Vertical Rod 109361 will work on all 2227's up to door heights of 7'1".  The actual length of the rod is 37-3/8", less the fittings.  If your door is taller you will need a rod extension.  Call 1-800-642-2403 for longer top rods or rod extensions.

Von Duprin part # 109361

The Von Duprin Strike 1609 strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.   This Strike is not rated for Fire Doors, which are usually interior corridor doors.

Von Duprin Part # US19-Black finish

The Adams Rite Metal End Cap is for the hinge side of the door and replaces the plastic version (25-0471).  This cap can be used on the 3100, 3300, 3600, 3700, 3900, 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800 and 8900.  We find the number 23-0600 cast in to the end cap.

Adams Rite Part Number 41-0903-IP or 41-0903-119

The Von Duprin Panic Device 230 DT Trim will work on the 22 and 2227 series only.  When the exit device is dogged open, the plate is operational.  The plate measures 3" wide by 12-1/16" high with a plate thickness of 3-/32".

The Jackson 30-1345 Top Strike Package for the 2085-3185  is mounted on the frame of the door were the top latch can engage it.   The Package includes the Strike, Plate, Latch Adjusting Wrench and the Mounting Screws.   Jackson Part Number 30-1345.

Norton CloserPlus Hold Open Arm

This heavy duty Parellel Arm can be used with the Norton 1600, 9300, 8000 and 7500 door closers. The knob on the main are locks and unlocks the arm to hold your door open.

Aluminum is in stock, Dark Bronze is 2-3 week lead time.
Norton Part # 6870T-8

The Door Push Plate 60 has the classic half round design.  The plate measure 8" wide and 16" tall, and is constructed of 16 gauge metal, which is .050" thick.  This plate is similar to the GPH59 (Push Plate 59), but is a 1/2" wider and 1" taller.  This plate ships with the matching finish screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Yale 790 Bottom Strike

Used on the Yale 7110, 7110F, 7120F, 7210MF, 7220MF, 2110F and 2110 Series Vertical Rod Exit Devices.  Used as the Bottom Strike.

Yale Part # 790

The Corner Guard 311 are a great way to protect corners in areas of high traffic and high abuse, such as warehouses and hospitals.  Fabricated from 16 gauge (.050") thick metal they measure 2" on both arms, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. They come standard with screw mounting, but other options are available.

 Screws included for mounting

Finishes

The Von Duprin Strike 1409 Blade Stop is used on just about every Von Duprin Rim Device when door frame protection is needed.  We see this strike on many Narrow Stile door setups.  The strike measures 1-7/8" by 1-3/4" outside dimension. The strike has a projection of 1/2".  The strike is constructed die cast metal and the blade is made of stainless steel.

Von Duprin Part # 1409

Doromatic Exit Device 1590 Pushbar End Cap PB202

Cover the end of the 1590 Push Bar.  Made of die cast metal and electrostatically painted black.

Doromatic Part # 4270106875 or PB202

The Von Duprin 47273111 Converts the E996L to the new M996L.  The difference between the two the later is a motorized version which is more robust and draws less current.  The kit includes the M996 Motorized Module and Slider Assembly.  They are offer two version one for the Rim (Rim), Surface Vertical Rod (SVR) and Concealed Vertical Rod (CVR) Exits, and one for the Mortise Lock Exits.

Doromatic Exit Device 1690/1790 Pushbar Anchor Bracket

Doromatic Part # PB321 or BRKT.128

Von Duprin 8827-F Bottom Latch Kit 050463 is the Bottom Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.

Von Duprin Part # 050463
Old Part # 102681

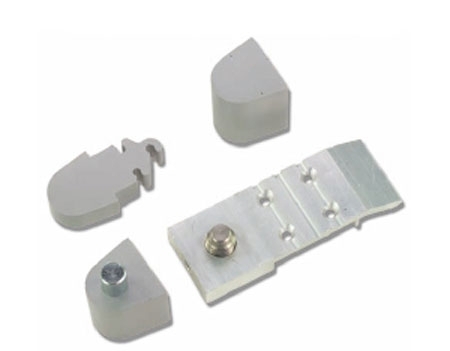

TH1116 Aldora Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

The Detex V40 ValueSeries Rim Device is their economical exit device.  The device only comes in powder coated aluminum or black. The standard 36 inch model measures 32-7/8 inches wide.  The unit ships with strike all the mounting screws and a hex dog key.

The Door Push Plate 59 has the classic half round design.  The plate measure 7-1/2" wide and 15" tall, and is constructed of 16 gauge metal, which is .050" thick.  This plate is similar to the GPH60 (Push Plate 59), but is a 1/2" more narrow and 1" shorter.  This plate ships with the matching finish screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

TH1112 Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

TH1118-B Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

Top Latch for the Yale 7120 Concealed Vertical Rod Exit Device.  Yale part number 60-7020-0057-000

The Norton PTO PowerTrack for 7705 is a replacement piece for the 7705PTO Door Closer.  The Track includes the Slider, Soleniod and new mounting screws.  The Track measures 21-1/4" long with a hole spacing of 19" on centers.   The PTO Track is for the Pull Side of the door, also known as the Hinge Side because you can see the hinges on that side.  On the PTO Track Assembly you can see the Two Mounting Holes

Norton Part # PTO24 or PTO120
