Von Duprin Exit Device Lever Trim Shear Pin Kit

This is the component that is designed to break, if the lever handle is forced to open , this pin snaps so your trim is not destroyed. 3/16" diameter shaft by 5/8" overall length. Retaining Ring included. This shear pin is used on the 230L, 360L, 992L, 994L and 996L Von Duprin Lever Trims.

Von Duprin Part # 050611 Old Part # 971583

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

The Falcon TD35 Roller Strike is used with the Dor-o-Matic Falcon 1590, 1790, and 2090 panic device where you are trying to protect the frame when the door closes.   The strike has been manufactured since the 1970's.  This part is also known as a Kawneer 133479 strike.  The strike ships with mounting screws in a painted black finish.   This style of strike is also known as a Blade Strike.

Doromatic Falcon Part # TD35 or 4270107393

Door Pull 30

10" centers
11" overall
2-7/8" projection
1-3/4" offset

The Adams Rite 31-0964 is used on the 3500, 8600, 8675 and 4781 Devices. The assembly comes with the nylon bushing.

The Door Pull Offset 1" Diameter PH-4000 is usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.  This handle projects 3-1/4", has a 2-1/4" door clearance, comes in 9", 10" and 12" centers.  One of the most popular handles we sell.

The Adams Rite EX76 End Caps are for the Concealed Vertical Rod Devices. The package includes the hinge side and latching side covers, along with the mounting screws. The aluminum color is no longer available, only Black.

The Adams Rite 41-0131-119 Metal End Cap Assembly is used on the Latching Side of the device. It is used on the P8700 and P8800 Narrow Stile Pullman Exit Device.

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel.  The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection.  This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle.  This handle is available in 8", 10", 12" and 18" centers on the mounting holes.  If you have a 9" centered handle use the PH-4000.   It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Offset Door Handle or Door Grip, and Storefront door handle.1" diameter material

Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

Adams Rite 22-0430-IP 8700/8800 Strike is used on the rim devices that have the Star Wheel Latching System.  The strike measures 2-3/4" long by 1-3/4" wide and projects out approximately 3/8".

The Adams Rite EX88 and EX89 End Caps are for the EX Series Interlocking and Pullman Rim Devices.  The package includes the hinge side and latching side covers, along with the mounting screws.

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond desired opening
degree
• Vertical and horizontal door adjustment
• Arm centering adjustment

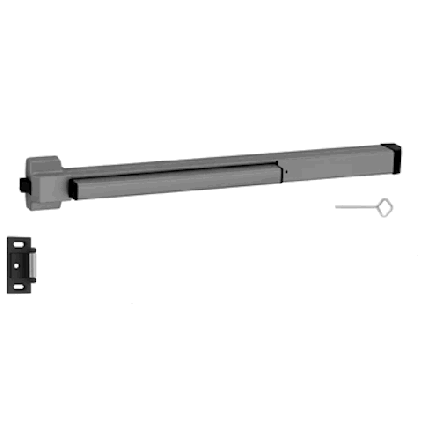

The Von Duprin 22 Panic Only 22EO is part of the economy series.   Even though is it the least expensive Von Duprin, it is still a very heavy duty panic device.  It is for all types of single and double doors with mullion, for door stiles as narrow as 3-13/16”.   All 22 Series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, Grade 1.  The Von Duprin 22 ships with the 299 standard strike, dog key, and all of the needed mounting fasteners.  Even though it is the least expensive, they offer all the replacement parts, just like there other models.  We stock all of the replacement parts Von Duprin has to offer on the 22 and 2227 series.
We keep the 36” devices in stock in the SP28 Sprayed Aluminum and SP313 Sprayed Dark Brown in stock.
Von Duprin Part # 22EO

With the Handicap Door Pull 18 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Shipped with screws. Also known as a Single Arm Pull, Handicap Grip, ADA Door Pull or Handle.  The handle is constructed of cast aluminum, or brass and then plated. The base plate measures 1-3/4" by 2-3/4", the handle projects our 3-1/2".  Ships with #6 by 5/8" matching finish sheet metal screws.

The Adams Rite 31-0265-01-IP is used on the current versions of their devices for Cylinder Dogging. Cylinder Dogging is when you have a Mortise Cylinder to lock the device in the unlocked positions (Dogged). Very similar to the Hex Key Dogging Assembly, but the mounting plate is longer.

LCN Door Closer 4111 HCUSH Hold Open

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

Grade 1 Exit Device
Device is non handed
Standard sizes are 30", 36", 42" or 48"
Minimum stile width is 2"

Replacement parts are also available

The Door Pull 25 is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. The handle has a 2-3/8" projection from the door, and 1-5/8" clearance from the door to the back of the handle.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Adams Rite Latch Retraction (LR) Ciruit Board is used on devices sold after 2004.  The board measures 1-3/4 inches by 2-3/4 inches.

The Adams Rite G86 Mounting Cap and Label with only work on the G86 Device.  The Cap measures 3-3/4" high by 1-1/8" with a 1-5/8" projection.

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

When Less All Parts is selected only the Cylinder is shipped, just the replacement hydraulic cylinder will be shipped

The Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130 is also used on the 1390, 1490 and 2390.  This latch has been around since the 1970's,  and is usually the issue if your bottom rod is dragging on the floor.  Although we are calling it Dor-o-Matic, it is actually known as a Falcon SU Top Latch due to a name change 5 or 6 years ago.  This latch rolls over when the device is pressed in and then locks in that position.  When the door closes, the 'U" channel of the latch flips over to a vertical postion and drops the rods.  This latch always uses the PB48 Strike, our part # G199034.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB130 or 4270101806.

The Door Pull Offset 3/4" Diameter #29 is constructed of either solid, Aluminum, Brass or Stainless Steel. The handle 3/4" diameter tubing with a 2-1/2" projection and 2-1/2" offset.  We find these on narrow stile aluminum framed glass storefront doors.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's.  The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices.  The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

Grade 1 exit device
Device is non handed
Standard widths are 30", 36", 42" or 48"
3-3/4" minimum stile width

Replacement parts are also available

The Adams Rite 31-0619 is the Circuit Board that controls the Motorized Latch Retraction on the 8000 and 3000 Series Exit Devices. It is also known as the PCBA: SE Main (Black).

Picture coming soon!

With the Handicap Door Pull 19 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Constructed of cast aluminum or cast brass and plated to the desired finish.  The overall length is 8-3/4", the bases are 1-1/2" x 1-5/8", and it projects 3-1/4".   Shipped with screws. Also known as a Double Arm Pull, Handicap Grip, ADA Door Pull or Handle.

LCN Door Closer Spring Cush Hold Open Arm 3049SC

Optional, parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe. Handle controls hold-open function.

Adams Rite 91-0993-IP 8700/8800 Strike is used on the rim devices that have the Star Wheel Latching System.  The strike measures 2-3/4" long by 1-3/4" wide and projects out approximately 1/2".   Kit comes with mounting screws and two shims.

The Door Pull 26 is made of 1" round stock in either solid, aluminum, brass or stainless steel. The handle has a projection of 2-3/4", and clearance of 1-3/4". It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

Finishes

8" GDP810
10" GDP101
12" GDP121

The Jackson Panic Device 1085, 1285, and 2086 Bottom Bolt Guide Assembly is the piece that fits in the bottom of the door.  It is there to take up slack in rod, so the door can not be shaken open.  Jackson part number 30-320.

With the Handicap Door Pull 119 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Also known as the Double Arm Pull it is constructed of aluminum, brass or stainless steel stock.   It measures 8-1/2" overall length and has 5-1/4" centers on the mounting screws.  The flat bar stock is 3/8" x 1", and the round mounting post is 3/4" diameter.  Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

The Von Duprin Panic Device 8827 Center Case 050415 is for use on the non fire rated 88 surface vertical rod.   You can tell the difference by the dogging screw.  If you have a Dogging Screw on your device, then this is the correct part.  Includes the internal pieces, including the Rod Control.

Von Duprin part # 050415
