Floor Door Stop / Holder FS43

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF43A or F43A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS43. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-5/8" to 2-11/16"
Holder Dimensions 3" Wide x 3-11/16" High

Von Duprin 88 Dog Screw. Newer style, after 1975 or so. If you have an older exit device they no longer make that screw.  I would recommend the D100, Panic Bar Retainer, for dogging down your device.

Von Duprin 88 dog screw 14 threads per inch

Von Duprin Part # 090083

Dorma 9400 Rod Guide and Screw Package, featuring two rod guides in the Stainless Steel finish.

Dor-o-Matic 1690 Retainer Screw.

Doromatic part # SCREW.1074 or PB141

Dor-o-Matic 1690 Repair Parts Breakdown

Dor-o-matic 1790 Center Case Cover Screw

For devices shipped before September, 2004

Doromatic part # SCREW.1025 or PB324

Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1790 Drive Bushing Set Screw, 10-16 3.8" UFPHMS SCREW

Doromatic part # SCREW.1150 or PB327

Dor-o-matic Falcon 1690 and 1790 End Cap Bracket Screw. This screws holds the bracket that holds the end cap.

Doromatic part # SCREW.1070 or PB315

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

The Falcon / Doromatic Door Closer SC91 is an affordable, high quality closer for residential or light commercial applications.  They used to be know as the Doromatic SC90, but in about 2008, they changed it to the Falcon SC91.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 3 closer, which is the lightest grade you can get.   The hole spacing is 3/4” x 6-3/8”.  We ship the SC91 Rw/PA.

Floor Door Stop / Holder FS41

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF41A or F41A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS41. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 9/16" to 1-1/16"
Holder Dimensions 3" Wide x 3-11/16" High

The Falcon / Doromatic Door Closer SC61 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 9-1/16”, which is the most common mounting template out in industry today.  They used to be know as the Doromatic SC60, but in about 2008, they changed it to the Falcon SC61.  We ship the SC61 Rw/PA.

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V

The Falcon SC71 Door Closer used to go by the Doromatic SC71. This is a higher quality door closer at a more affordable price. This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension. It has the ability to be mounted on the push, pull or top jamb and is non handed. This closer is considered a Grade 1 closer, which is the highest grade you can get. The hole spacing is 2-3/8” x 6-3/4”, which is the same hole spacing as the Norton 7500 and Yale 4400 door closers. We ship the SC71 Rw/PA

Dor-o-Matic 1690 Hex Socket Set Screw-PB317

1/4-20 x 3/8"

Doromatic part # SCREW.1067 or PB317

Dor-o-Matic 1690 Repair Parts Breakdown

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware.  This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.  The screw is a 5/16-18 x 5/8 hollow set point.

Von Duprin Part # 090081

International 58L Escutcheon Trim for the 5000 Series Devices

Non-handed, easily install with exit device Escutcheon plate measures 8-1/16" tall by 2-5/8" wide by 29/32" thick. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle-Most Popular
Passage - no cylinder hole, lever always active
Night Latch (Storeroom) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

The Cal Royal Products CR441 Door Closer is an inexpensive replacement for the LCN 4040.  The mounting holes on the CR441 matches the 4040, at more than 1/2 the cost.  This closer will work on the left or right, push, pull or top jamb for mounting.   Just like the LCN 4040 it features adjustable spring tension, closing, latching and back check speeds.  It is considered a Grade 1 closer, which is the heaviest rating possible.

Cal Royal CR4040 Catalogue

Hager 5400 Series Door Closer

This Hager Door Closer is a Grade 2 closer.  The hole spacing is 3/4" x 9-1/16" center to center.  The closer comes with the ability to go left or right, push, pull or top jamb mounting.

We ship the 5400MLT04, aluminum is in stock, Dark Bronze has a 3 week lead time

The LCN Concealed Door Closer 3031 is mortised into the top of the door.  Standard 3030 series closer shipped with regular arm and wood and machine screw pack. Sized cylinders for interior doors to 4’0”.  Handed for right or left swinging doors.  Closers to meet ADA requirements.

Floor Door Stop / Holder FS40

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" High

The Sargent Door Closer Hold Open Arm 25-H is known as a Friction Hold Open Arm.   As the arm rotates it tightens the two plates together until they can not turn any more, and holding the door open.  To close you just pull the door and it will "unscrew".   The hold open position is adjustable by tightening or loosening the larger nut.

Sargent part # 25-H

The LCN Door Closer 4111 is known as the Smoothee, and is one of the heaviest duty door closers made. If you have a building were you have a high traffic and abusive, especially exterior doors, then this is the closer. The 4111 is an application specific closer, meaning it will only work when mounted on the door, on the push side. This is known as a parallel arm application. The cylinder is fully adjustable and will work on doors up to 56" exterior door, and can be adjust down to ADA required levels. We ship the 4111 EDA model, which is a non hold open arm, on this page. The cylinder mounting holes are 2-1/2" by 6".

Floor Door Stop / Holder FS42

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF42A or F42A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS42. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-1/8" to 1-9/16"
Holder Dimensions 3" Wide x 3-11/16" High

The Von Duprin Panic Device 996L Lever Trim has an escutcheon plate that measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". The key cylinder, not included, locks and unlocks the lever.  This lever handle is handed, but is field reversible. Key lock and unlocks lever.  We ship the 996L-R&V

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The International Door Closer Arm 3010-K is for end loading top arm assembly (5/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

The Sargent Door Closer 351 is the most heavy duty closer made by Sargent.  This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed. It ships with arm, plastic cover, parallel arm bracket and all of the fasteners.  The hole spacing is 2-1/2" x 9"

The Ives Wall Door Stop / Holder WS20 is another door holder from Glynn-Johnson.  The Chicago based manufacture made these for 40 plus years.  When they were purchased from H.B Ives and merged into there line they became the WS20.  This holder is constructed of cast brass and then plated to your desired finish.  The hinged holding clip can be released by a gentle pushing on the door, which causes the clip to flip up and release the door.  The piece ships with wood screws and anchors.

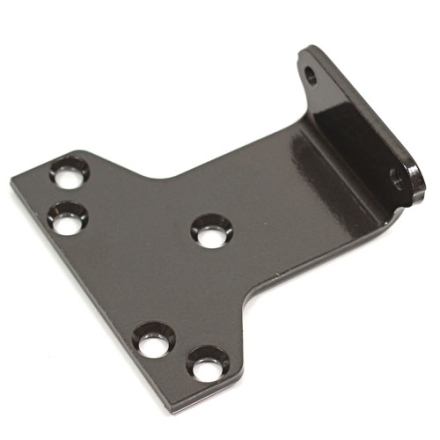

The LCN Door Closer 62PA Parallel Arm Shoe is constructed of steel and then powder coated to your color.  This is the shoe that LCN used on there universal door closers for the parallel arm mounted door closers. This is the bracket that is shipped with the Rw/PA and Hw/PA arms.  A parallel arm closer is a door closer that has the arm parallel to the door when the door is closed. This part is also known as the 1260-62PA, 1460-62PA, 4030-62PA, and 4040-62PA. Ships with mounting screws.

The International Door Closer 44CI Adjustable Spring Power is one of there heaver duty closers.   It is designed to line up with the LCN 4040 hole spacing at more than half the price.  It features a rugged cast iron body with a forged steel arm.  It also uses all weather fluid, is non handed and is non sized, meaning you can adjust the door for any size door.  The door closer we are selling here come with a regular arm and parallel arm bracket, so the closer can be mounted on the left or right, push, pull or top jamp.  The closer has 4 adjustments, closing, latching, and back check valves, a long with a spring power adjustment.

The Barracuda DSI is designed for In Swinging 36" Doors.  The user places the deive on the floor and slides the metal plates under the door.   Then pushing outward on the handles engages the plates to the exterior door jamb.   Then you simply install the locking pin to barracade the door.   The device is manufactured of heavy-duty steel that is then coated in a durable powder coat paint.   It will work on just about any door and comes in 6 different versions depending on your jamb width.   It is lightweight and comes with a storage mounting rack, along with all the the needed hardware for installation.

Barracuda Part Number
4-3/4"  DSI-2
5-3/4"  DSI-1
6-3/4"  DSI-3
7-3/4"  DSI-4
8-1/4"  DSI-5
8-3/4"  DIS-6

This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.

The Von Duprin 55 Dog Screw-090053 is the newer version, meaning less then 25 years old.  It measures 3/8" diameter by 1/2" long with 14 threads per inch.  They did have an old style that was available up to a few years ago that had 15 threads per inch.  If you have any old style I would recommend the D100 Panic Bar Retainer.

Von Duprin part # 090053

The International Door Closer Arm 3010-PT is for end loading top arm assembly (7/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

The International Door Closer 9001-TP Series is a relatively newer closer.  This closer features fully adjustable spring tension, closing and latching speeds and back check.  The narrow design allows for mounting on the top jamb of store front doors without a drop plate.  The closer is non handed, and can be mounted on the push, pull  or top jamb positions.  It meets all ADA requirements and is a Grade 1 closer, the heaviest rating possible.

3/4" X 11-3/32" Hole Spacing

The Plunger Door Holder / Stop DH6000 is one of the most common plunger style door stops we offer.   They are constructed of a cast zinc alloy that is then electro statically painted to either an aluminum or dark brown color.   It features a non marring rubber tip that is replaceable, and we keep in stock.  The body measures approximately 7" long and is 1-5/8" wide.  The throw on this stop is 1-1/8".  These are sometimes called pop-up or push down door stops.  This product ships with the mounting screws.

Made by International Door Closer
