Provides hold-open function with templated stop/hold-open points.
Handle controls hold-open function.

Specify your current closers model number when ordering. Not all
of the LCN closers have the same shape spindle on the door closer
cylinder. This LCN Arm is known as these part numbers: 1260-3049CNS, 1460-3049CNS, 4040-3049CNS, 4110-3049CNS

The Sargent Door Closer 1331  is a standard template closer with the 3/4” x 12” hole spacing.  This closer is a great replacement for the Norton 8000 Series or Yale 3000 Series Door Closers.  The closer is constructed of a cast aluminum body and has a heat treated steel pinion and rack.  The 1331 has the ability to be mounted on the push, pull or top jamb, and is non handed.  We stock the aluminum finish, but also have the dark bronze finish, it just might take an extra day or so.  We ship the 1331-JUO.

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

The Norton Door Closer 7700 Series Power Track combine the functions of a single point electromechanical door holder with the proven reliability of a 7700 Series Door Closer. The track assembly contains an arm slide and solenoid operated hold open mechanism and is available with or without an integral smoke detector. The closer is mounted on the door. The Power Track and hook-up box are mounted to the frame face for pull side installations or the frame soffit for push side installations.
Two versions, the Master Unit (PTDO) and the Support Unit (PTO). The PTDO has an integral smoke detector. The PTO can be plugged into the PTDO or into your existing fire alarm system. Both units can be mount pull side of the closed door, or the push side, please specify when ordering. Specify voltage (24 volt or 120 volt) and color (aluminum or dark brown). Dark Brown is a 3 week lead time, Aluminum is in stock.

The PTDO Master Unit is no longer available, they were discontinued in the 2024.

The 590 is made of solid brass and ships with matching screws.  The faceplate measures 1 x 6-3/4 inches, the strike is 15/16 x 2-1/4 inches and comes standard with a 12 inch rod.  The mountng screws are 1 x 6-1/4 inches on centers.

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

The Falcon / Doromatic Door Closer SC81 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 12”, which is the same hole spacing as the Norton 8301, 8501 and the Yale 3301, 3501 Door Closers.  We ship the SC81 Rw/PA.

The Corner Guard 311 are a great way to protect corners in areas of high traffic and high abuse, such as warehouses and hospitals.  Fabricated from 16 gauge (.050") thick metal they measure 2" on both arms, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. They come standard with screw mounting, but other options are available.

 Screws included for mounting

Finishes

LCN Sentronic Door Closer Arm - 4110SE-3077T

LCN part # 4110SE-3077T

This arm will only work on the 4110SE. If you have another LCN Sentronic Model, we can order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door, see diagram

The arm shown in the picture is a 4040SE arm, the 4110SE arm is the same, but the shaft hole is an oval.

Full Mortise Double Swinging Spring Hinge

Used mainly for commercial kitchen doors,  or any commercial double swinging door.   Sold in sets of 2 hinges, they will handle doors up to 75 lbs that are 1-3/4" thick.   If you door weighs between 75 and 107 lbs, you should use 3 hinges.  The door flange is designed for a standard 4-1/2" x 4-1/2" template mortise.   Hinges ship with wood and metal mounting screws. They come in a standard Painted Primed Finish Gray.

The jamb flange is .100" thick, the door flange is .134" thick and the barrel diameter is 1.18".

Von Duprin 373L 88 Lever Trim

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Corbin Russwin ED4000/5000 N9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

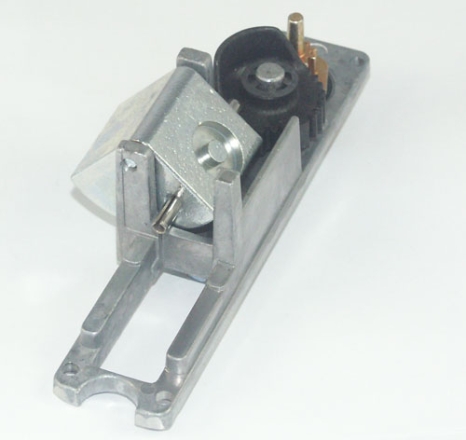

The Dor-o-Matic 2090 Backplate Assembly PB89 has been around since the early 1970's.  It is now called the Falcon 2090 Back Plate Sub Assembly, but it is the same thing, just different owners of the company.  This piece includes the plate casting, latch bolt, pinion gear, and retractor.

Doromatic Part # 4270902974 Right Hand
Doromatic Part # 4270902968 Left Hand

LEFT HAND BACKPLATE SHOWN

The Floor Door Stop FS434 is another one the old Ives parts that has been around for about 40 plus years.   The FS434 is constructed of burnished wrought steel, with a soft, resilient gray rubber shoe.  The shoe is replaceable and is under related products.  The stop measures 2-5/8" overall height, and the base measures 1-1/2" wide by 2-3/4" long.  This door stop ships with all the fasteners and anchors needed.

The Push Bar w/Handle 422X26 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

Corbin Russwin ED4000/5000 C9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.

The same as the Falcon / Dor-o-Matic 1690 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.

Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Strikes: PB48 top.
Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.

Replacement parts are also available

Shipped with all screws and strikes.

The Falcon / Doromatic Door Closer SC91 is an affordable, high quality closer for residential or light commercial applications.  They used to be know as the Doromatic SC90, but in about 2008, they changed it to the Falcon SC91.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 3 closer, which is the lightest grade you can get.   The hole spacing is 3/4” x 6-3/8”.  We ship the SC91 Rw/PA.

The Yale 2701 is a non handed door closer that can be mounted push, pull or top jamb. The closer is adjustable 1-6 sizing, so it will work on any size door, interior or exterior.  The closer ships with a full cover, and all the mounting screws. This a Grade 1 closer, which is the highest rating possible. The mounting is 3/4 x 12 inches on centers.

Jackson 2095 Exit Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.

For use on commercial applications.
• Exceeds OSHA and BHMA strength test requirements.
• Packed with square head iron lag screw, expansion shield and screws.
• Cast Aluminum construction.

Dimensions
Base Diameter: 3-1/8"
Base to Rail Center: 3-1/8"

3" Kickdown Door Holder / Stop Zinc Plated Mickey

Zinc plated cold rolled steel,
Made in the USA
3" Arm Length

made by Grand Specialties

The Cal Royal Products 900 Series Door Closer is a unique one, it is the only closer that has the 3/4" x 11-1/8" hole spacing.  We have seen a few versions of this closer, some have 6 mounting holes, and some have 4.  If your closer has a spacing of 11-1/8", and has 3 holes on each size, this is the only closer I know of that is like that.  The 900 Series is a Grade 1 closer, the heaviest duty rating possible.  The door closer has adjustable spring tension, closing, latching and back check valves and is Barrier Free rated.  The package comes with all of the  mounting screws and a parallel arm bracket, so it can be mounted on the left, right, push, pull or top jamb for mounting.

Universal Intermediate Storefront Door Pivot.  Comes with all the screws need to install right out of the box.

Reinforcing Pivot Hinge 4" - for use with a 4" wide butt hinge

1/2" to center line of 4" hinge.
Used to strengthen and reduce vibration
to your current full mortise butt hinges.
Made of Zinc Plated Steel

These hinges are not longer handed. Please select hand when checking out, until our system is updated.

This package connects to the rods on the Dorma 9400 Surface Vertical Rod Devices. Plate measures 3/4 x 1/2 inch, finger sticks up 3/4 of an inch. Package includes 2 plates and 2 screws.

1285 Series exit device blends the reliability of the 10 series with the sleek, contemporry style of the today's push-pad exit devices. Easy to retrofit existing 10 Series exits. Made of extruded aluminum.

Adams Rite 8600 Strike Plate Assembly

The 31-0945 has a 1" outer diameter.

Adams Rite Part # 31-0945

Jackson 2085 Panic Device

Certified ANSI 156.3 Grade 1. Made of extruded aluminum, with stainless steel and hardened steel mechanical components.  This device is for 36" doors.

Detex EAX-500W Weatherized Battery Powered Door Exit Alarm

The Detex EAX-500W Series is designed for applications requiring a battery-powered alarm on secured doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The redesigned shape and smaller size of the EAX-500W makes it the ideal choice for quick and easy installations on emergency exit and restricted doors.  The weatherized version is for use on out swinging doors that may get wet due to rain, or wet environments.

Gray Only

Mortise cylinder sold separately
Uses a standard 9 volt batthery

Detex EAX-500 Installation Instructions

The Von Duprin Panic Device 210DT Trim is part of there economy series trims.  This trim is just a pull, but will line up with the chassis mounting holes of the 22 and 2227 devices.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Cal-Royal 6660 Surface Vertical Rod Device is a Grade 1 exit device.  It is designed for doors that have at least a 3-3/4 inch stile width. The 36 inch device has a 32 inch actual length and can cut down 6" (24 inch actual). The 48 inch device has an actual length of 44 inches and can be cut down 12 inch (34 inch actual).  Devices ships with 938 Strike and all the mounting screws.

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The Detex V40xNS is designed for Narrow Stile Doors with a stile width of at least 2". The 36 inch is 34-7/8 inches wide overall, and the 48 inch device is 46-7/8 overall.

Corbin Russwin ED4000/5000 L9 Trim

Passage -Entrance by knob or lever. Door is always unlocked.
Classroom-Entrance by knob or lever. Key locks or unlocks knob or lever.
