LCN Sentronic Door Closer Rod 82

This LCN Rod will work on most Sentronic Door Closers.
LCN part # 4040SE-82

The Sargent Door Closer 351 is the most heavy duty closer made by Sargent.  This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed. It ships with arm, plastic cover, parallel arm bracket and all of the fasteners.  The hole spacing is 2-1/2" x 9"

The International Door Closer Arm and Track 3020-VO is for offset top arm assemblies, with the track mortised in the top of the door.  This track and arm are for the 7/8" depth of top rail application.  Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.  For use with the 2000, 3000 and 5000 series concealed closers.

Sargent 25-CPSH Heavy Duty Compression Holder Arm

Forged Steel Arm 11-1/4" long, non handed, will work left or right for Parallel Armed Sargent Closers.  Permits 105 degree opening with built in compression stop and holder mechanism.

Sargent Part # 25-CPSH

The Doromatic 1990 Panic Device has a long history of reliable performance.  Although it is now called the Falcon 1990, they are the same device.  This device is non handed, meaning it can go on left hand or right hand door.  The standard included 41" crossbar will work on doors up 3'8" wide, and the stardard rods will work on a 7' door.  It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.  The package includes all of the mounting screws and strikes.

Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.
Cylinder: Rim, key entry (NL) or hold back (HB) available
(field selectable)
Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.
Doors: 1-3/4" thick metal doors.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

The International Door Closer Arm 3010-K is for end loading top arm assembly (5/8" depth top rail). All screws included with package.  This arm is for center hung concealed closer applications.   For use with the 2000, 3000 and 5000 series International Door Closers.

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

Sargent Door Closer Covers

Replacement Sargent Door Closer Covers, made of impact resistance plastic.  Covers are available for the 281, 350, and 1430 Door Closers.

The Corbin Russwin Regular Arm Parallel Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is required if your are going to use a parallel arm mounting, which is when you have the closer mounted on the door, on the push side of the door.  Corbin Russwin part # 188F41-8.

Sargent replacement spindle

Sargent Part # 1178L

Hager 5100 Series Door Closer

Hager 5100 Series Grade 1 door closer is constructed of cast iron, which makes it ideal for heavy duty, high use and abusive environments. Hager door closers are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty.

The 5100 matches the hole spacing of the LCN 4040 or 4040XP

The International Door Closer Arm and Track 3010-JO for Offset Top Arm Assembly Mortised Type (9/16" Depth of Top Rail) installations. Track measures 15-1/4" long by 3/4" high by 15/16" wide.  For use with the 2000, 3000, and 5000 series concealed door closers.

The International Door Closer 3010-S Side Load Arm is used with the 200, 300 and 500 Series Concealed Overhead Door Closer for Center Hung Doors.   The arm is constructed of cast iron and measures 10" long, and 7/16" thick.   The package includes all the mounting screws.

The Jackson Door Closer Center hung Arm - 20-400B is used with the 20-330 door closer.  This arm is for use with double acting, center hung doors.  The arm measures 10" long by a 1-1/2" wide and 1/2" thick.

Jackson Part # 20-400B

The LCN Sentronic Door Closer Roller - 3034 is used on all of the LCN Track Closers, and Sentronic Closers. Nylon wheel is 1-1/16" diameter by 3/8" thick. The shaft is has a 1/2" diameter by 1-1/8" long.  However in November of 2015 they started shipping the roller with the Slider 168 attached to it, with a retaining ring. LCN Started using this Roller Assembly in December 2018.

LCN part # 4040SE-3034

The Jackson Door Closer Center Hung Arm 20-2085 is for double acting center hung doors for use with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide by 19/32" thick.

Jackson Part # 20-2085

Dorma 8616 Door Closer

The Dorma 8616 door closer series is a non-handed surface applied door closer with adjustable spring power and back check positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

• Through-bolted: 1-3/4" (44mm) door standard. For doors through 2-1/4" (54mm)
• Plate Dimensions: 3-1/2" x 3-3/4" x 3/32" (89mm x 95mm x 3mm)
• Finger Pull Dimensions: 3-1/2" x 6-3/4" x 1/8" (89mm x 171mm x 3mm)

Application
includes 180 top pivot
Interior Doors
Weight to 300 lbs.*
Door Width up to 3'6"(1067mm)
Handed

Handing diagram

The Sargent 281 Door Closer is also known as the Powerglide, This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed.  This closer is the replacement for the 1250 and 1251 series closers.  This closer has been the replacement for the 1250 since about 2000.  It is manufactured of an aluminum alloy.

Replaces the older Sargent 1250 and 1251 door closers, mounting holes will match

• Not load-bearing
• Maintains door alignment
• Non-ferrous base metal
• 3/4"(19mm) offset
• Furnished with wood and machine screws

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

Hager 5200 Series Door Closer

Hager 5200 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5200 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5200 Door Closer body has a hole spacing of 3/4" x 12"

The Jackson Door Closer Offset Arm - 20-1312-LC is the replacement arm and track for the Jackson 20-330 Door Closer.  The track measures 12-7/8" long by 1/2" thick, and the arm has an overall length of 12-15/16" long with an offset of .826".  This set is for use with single acting doors with a 3/4" offset.  Package includes the arm and track.

Jackson part # 20-1312-LC

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

Dorma 8916 Door Closer

The Dorma 8916 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and back check, along with a narrow projection full cover and flatform style arm.

 Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

American Exit Device 60 Series and Dorma 8000 Series Dogging Assembly

This is the assembly that keeps the latch bolt retracted when the hex key is tightened.

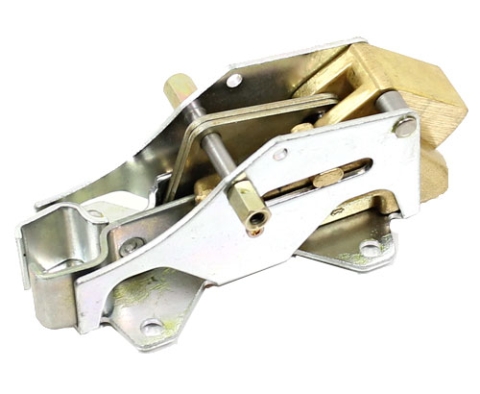

The Von Duprin 8827 Top Latch Case 050460 is for non fire rated doors. A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  This is the part that may be causing your bottom latch to drag on the floor. The Top Latch does all the work on the Von Duprin 8827. When the Top Latch is retracted, it holds the rods in the retracted position.

Von Duprin part # 050460
Old Part # 101750

Dor-o-Matic spring retainer. The retainer fits under the housing, by the dog screw and holds one end of the spring. The spring pin holds the other side.

Doromatic part # RETAIN.102

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Corbin Russwin DC3210 Door Closer

The mid-priced, cost-effective choice for high-traffic situations. Corbin Russwin DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

Fits on the same mounting bracket as the 100, 110, 120, 2800, 2810 and 2820 Corbin Russwin Door Closers

Idea for interior doors.

The Jackson Door Closer Center Hung Arm - 20-2000 is used on double acting doors with the 20-330 concealed door closer.  The arm measures 9-1/2" long by 15/16" thick.

Jackson Part # 20-2000

LCN 4630 replacement arm, LCN part # 4630-3077T

Hager 5400 Series Door Closer

This Hager Door Closer is a Grade 2 closer.  The hole spacing is 3/4" x 9-1/16" center to center.  The closer comes with the ability to go left or right, push, pull or top jamb mounting.

We ship the 5400MLT04, aluminum is in stock, Dark Bronze has a 3 week lead time

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

The Russwin 2800, 2810 and 2820 are no longer available. They have been replaced by the Corbin Russwin DC6210, which has the same hole spacings and arm. You will not have to redrill or modify your door to make the DC6210 work in place of your existing 2800, 2810 or 2820 door closers. The Corbin Russwin DC6210 has a little bit larger body due to the increased functionality of this closer. This new closer will meet all the ADA requirements.

Corbin Russwin’s history combines high-quality product and innovative design. That tradition continues with the new Grade 1 DC6000 Series door closer, designed and engineered with quality features such as captured valves and a complete range of new arms. The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire openings.
Uses the same mounting bracket as the 100, and 2800 series.

Older models may have SL72 or MS93 cast on the cylinders. You may also find Clarksdale, MS cast on the cylinder also.
