The Von Duprin Strike 1409 Blade Stop is used on just about every Von Duprin Rim Device when door frame protection is needed.  We see this strike on many Narrow Stile door setups.  The strike measures 1-7/8" by 1-3/4" outside dimension. The strike has a projection of 1/2".  The strike is constructed die cast metal and the blade is made of stainless steel.

Von Duprin Part # 1409

The Von Duprin 050135 Top Fitting and Cover is for use on there 5654 / 5754 Mullions.  Package includes the Top Fitting and Cover, and all of the fasteners.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8"

Von Duprin Part # 050135

The Sargent Door Closer 1431 is also known as the Powerglide.  This closer meets ADA requirements and has a capability to be mounted on the push, pull or top jamb, and is non handed.  This closer can be used as a direct replacement for the older version 1230 or 1231 Sargent Closers without having to re drill the mounting holes.  This closer has been the replacement for the 1230 since about 2000.  It is manufactured of an aluminum alloy.

Retrofits existing SARGENT 1230/1231 Series Closer installations

The Von Duprin Strike 299 is used on the 22, 88, 98, and 99 Rim Devices and also as a Top Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  Ships with shim and mounting screws.

Von Duprin 8827-F Bottom Latch Kit 050463 is the Bottom Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted position.

Von Duprin Part # 050463
Old Part # 102681

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

The Cal Royal Products 300 Series Door Closer comes in two versions.   One version is the size 3 to 6 spring, which would be for larger exterior doors.  The 3 to 6 spring size is for doors 36" to 48" wide.  The second version is the size 1 to 4 spring size.  The 1 to 4 is considered a Barrier Free door closer, because the spring tension can be turned down to less than 8 pounds of resistance, making the door easy to open.  The 1 to 4 should be used on interior doors and smaller, less than 36" wide exterior doors.  This door closer is a standard template closer with a hole spacing of 3/4" x 9-1/16" center to center, which is what we find on many aluminum framed glass storefront doors.   This closer has a 5 year warranty and is considered a Grade 1 closer, the heaviest duty rating possible.

Corbin Russwin 677F08-5 Spring Retainer Hub, this is also known as the Yale 60-7000-6217-082 Hub, Lever.

The Von Duprin 050190 Bottom Fitting is for the 5654 / 5754 Mullions.  The package includes the bottom fitting and all of the fasteners.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-7/8"

Von Duprin part # 050190

Von Duprin 050519 33/3547A/48A Adjustable Top Rod

Replacement Von Duprin 33/3547A/48A Adjustable Top Rod for 6'8" to 8'4" doors.

Von Duprin Part # 050519

The Von Duprin 499F is used on the 22, 98 and 99 Series Fire Rated Rim Devices when used with the 9954 Mullion.  A Fire Rated Device is one that does not have a dogging pin or screw to lock the door in the open position.

Von Duprin Part # 499F

The Von Duprin Panic Device 210K  Knob Trim is for use on the 22 Rim and 2227 Surface Vertical Rod devices.  Key in knob can lock and unlock the knob.  Since the enforcement of local ADA standards, this knob is probably at the end of this life, no one seems to want these anymore.  The mounting plate measures 3" wide by 4-25/32", and is 3-32" thick.  We do have parts on this Knob, but at this point they are not on the website.

The Von Duprin 050671 and 050814 solenoid have been discontinued.  All of our stock is gone.  Von Duprin has come out with a retrofit kit to update your E996 Lever to the M996 Lever. The kit changes out the solenoid for a mortorized version, more robust and uses less current. The newer version can be found by searching for M996.

This solenoid is used on the E996 Electrified Lever Trim.  The Solenoid body measures 1-3/8” x 9/16” diameter, mounting bracket has a 3/4” on center hole spacing.  The wiring harness has a two wire plug.  We some times fine the number 991342 on the solenoid.

New for 2024 Von Duprin has come up with a Mechanical Electrified Conversion kit. This kit converts the EL Solenoid to a Mechanical Electrified Trim.  More information can be found @ https://www.robertbrooke.com/von-duprin-m996l-retrofit-kit.html

Von Duprin Part # 050814
Von Duprin Part # 050671

The Von Duprin 8827-F Top Latch Kit 050462 is the Top Latch Kit for the Von Duprin 8827-F. The 8827-F is the Fire Rated Surface Vertical Rod device usually used on interior doors to contain a fire. The Fire Rated version would not have dog screws to lock the device in the retracted postion.

Von Duprin Part # 050462
Old Part # 102676

Sargent Latch Bolt Spring.

Used to put tension on the latch bolt of the 20, 30, 60, and 80 Series Sargent exit devices

Sargent Part # 98-0028

The Norton Door Closer 1601BF Barrier Free has been around for about 10 years. With the advent of aluminum framed glass doors, Norton was one of the first manufactures to come up with a narrow stile door closer. Because of this, it is still one of the most popular door closer models out there. It is a Grade 1 closer and has adjustable closing, latching, and back check speeds. The Barrier Free version just means you can turn the spring tension down to a size 1 spring, which will meet the ADA codes (less than 5 pounds of resistance). The model we ship also has adjustable spring tension to work on a wider range of doors. The hole spacing is 3/4” x 9-1/16”.

Norton 1600 Installation Instructions

Monarch / Falcon 24-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

• Hand: Non-handed.
• Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
  US32 (629); US32D (630); US28 (628), 313AN.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-3⁄4" maximum, 2” dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine
  screws standard.
• ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
• Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

5" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 4-3/8" to the Floor when mounted.

made by Grand Specialties 605z 605b

Dor-o-Matic 1490/1590 Dogging Compression Spring

Doromatic part # 4299101020 or PB224

Doromatic Mounting Stud. Male stud mounts to the door and the housing slides over.

Doromatic part # PB2 and also STUD.101

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

Doromatic Exit Device 1490/1590 Act. Rod Spring Stop

Doromatic/Falcon/Allegion Part # 971660-79

Dor-o-Matic 1690, 1790 and 2390 Dogging Spring

Doromatic part # 971493-76 or PB323

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Monarch / Falcon 25-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

Hand: Non-handed.
Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
US32 (629); US32D (630); US28 (628), 313AN.
Strikes: 299 strike standard.
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking Latchbolt: Standard.
Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out..
Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
Projection: 2-3⁄4" maximum, 2" dogged.
Mounting Height: 40-1⁄4" from CL to finished floor.
Fasteners: All mounting screws are concealed, sheet metal screws and machine
screws standard.
ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

International 8052-TP Delayed Action Door Closer

The International 8052-TP Delayed Action Door Closer is same  as the 8050 Series or 8051-TP, but with Delayed Action. Delayed Action is a function of the Door Closer hydraulic cylinder. The hydraulic cylinder will hold the door open for up to 30 seconds to allow physically challenged individuals time to get through the door way. Adjustable spring power with separate valves for closing, latching and delay

International Door Closer model # 8052-TP DU or 8052-TP AL

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

The Von Duprin 88 and 55 Cross Bar 967738 has been in use since the 1950's.  The bar is 1" in diameter and is 42" long and can be cut down in the field.  One side of the bar will be cut for the wedge tite screw opening.

Von Duprin Part # 050004
Old Part # 967738

The Von Duprin 22 End Cap Only 968601 is the end cap that goes on the hinge side of the door. When the cap breaks off the Dogging Cover Plate just slides off. Works on all of the Von Duprin 22 exit devices. If you need the bracket also, please order part # G22R10. Black plastic construction. As of October 1, 2014, Von Duprin no longer sells just the Plastic Cap Only. The complete End Cap and Bracket 900981 will be shipped in its place.

Von Duprin Part # 968601

The Von Duprin 88 Tube Attaching Ring 090021 is also used on the Von Duprin 55.  The ring fits over the device lever arm, and is expanded by the Wedge (88R90) and the Wedge Tite Screw (88R100).  When the Wedge Tite Screw is tightened the Ring expands and keeps the crossbar parallel to the door.  Measures 15/16" long by 13/16" diameter.

Von Duprin Part #090021
Old Part # 965676

8" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder  you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed shoe can be adjusted down as the rubber wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 7-3/8" to the Floor when mounted.

 Made by Grand Specialties 608z

12" Kickdown Door Holder Grand Standard

Frequently we are asked, “What is the heaviest duty kick down holder you sell?”  The answer to that question is any of  Grand Specialty door holders.  These door stops are American made and simply the best out there.   They have a shoe that is held in place by a screw, a rivet instead of a roll pin for the hinging mechanism, and a “wedge” instead of a piece of spring steel to hold up the leg.  They are constructed of steel, and not cast like all of the other door holders made.

Another feature is their well constructed rubber shoe can be adjusted down as the rubber shoe wears making the holder last way longer than their competitors. Another use for them is as a door floor lock if mounted on the other side of the door. Once kicked down there's no entry possible unless you slide a flat item under the door to lift the door holder leg out of the way and push the door open. It can be opened from the inside as normal with your foot or hand. A very inexpensive security lock.

• No roll pin at pivot point
• Mallable with a pair of pliers
• Rubber shoe held on by a screw
• American Made
• Zinc plated steel

 The bottom mounting screws holes would be 11-3/8" to the Floor when mounted.

 Made by Grand Specialties in USA Part # 612z

The Cal Royal Products 800 Door Closer is one of there newer closers.  The CR801 has a hole spacing of 3/4" x 12" and ships with either a full cover or slim cover.  The full cover will hide both spindles, were as the slim cover will not.  This closer is a Grade 1 closer, the heaviest rating possible.  The cylinder has adjustable spring tension, closing, latching and back check speeds.   It can be mounted on the push, pull or top jamb.  The CR801 will work in place of the Norton 8000 and Yale 3000 series door closers, with no new drilling.

CR801S - SLIM COVER

CR801 - FULL COVER

Ships within 24 hours from California.

The Falcon OHC100 and OHC101 Door Closer Body Only are designed for a wide variety of Doors.   The OHC100 is for use on larger exterior doors and has spring size adjustments of 3-5.   The OHC101 is designed for smaller or interior vestibule doors, with an adjustable spring size of 1-3.

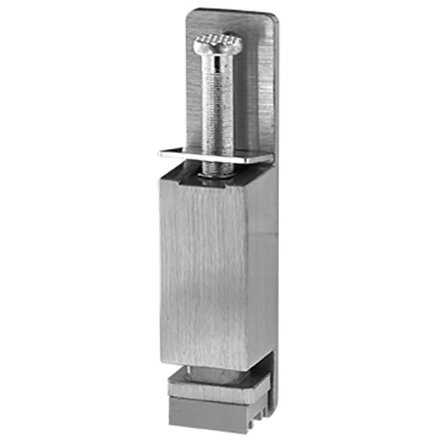

The Ives Plunger Door Holder / Stop FS1153 is manufactured by H.B. Ives and features a contemporary yet economical method of positive Hold-Open.  This was another one of the Glynn-Johnson door stops that was merged in the H.B. Iver product line in the 1990's, and went by the 1153 part number.  This door stop is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The stop has a 1-5/8" throw or projection for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.  These are sometimes called pop-up or push down stops.  Ships with mounting screws.

Aluminum finish only
