Corbin Russwin ED5400 Bottom Latch, Corbin Russwin part # 650F58-8

The Dorma RTS88 Door Closer is an overhead concealed closer for both single and double-acting doors.  It is one of the more popular overhead concealed closers on the market today.  The RTS88 will consist of a steel cam, rollers, and springs housed in a compact cast iron body.  Closers will be capable of being installed in minimum 1-3/4" x 4" headers. RTS88 will have maximum door opening to 90º or 105º, trim conditions permitting. Sweep and latch speed will be controlled by two noncritical adjustment valves from 90º or 105º to closed. Built-in pressure relief valve will protect the closer from abuse caused by forced closing. A mechanical backcheck combined with a positive stop at 90º or 105º will be provided to protect the door and frame. The RTS88 closer will be available with hold open at 90º or 105º, or without hold open. The product shown here is just the replacement cylinder.

The Falcon 650388 Latch Cover is for use on the Monarch and Falcon 19-V Series.  The latch is made of high impact black plastic and ships with the mounting screws.  The manufactures part number is 650388, the old Monarch part number was 3781.

The Von Duprin 9927 Bottom Latch 050090 replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050401. Mounting screws and bracket are included.

Von Duprin Part # 050090

Falcon 650202 19-24-25-XX Latch Cover

This Latch Cover is used on the Monarch Falcon 19, XX, 24 and 25 series devices.  Used to go by then number 3781, but the factory is now using the number 650202.

Falcon Part # 650202
Old Monarch Part # 3781

Von Duprin 88 Latch Tail Springs

This is the spring that pushes the latch bolt out. Used on all Von Duprin 88 Rim Devices. The spring measures 2-5/8" long by 3/16" diameter.

Sold in packages of 2.

Von Duprin Part #050393

The International FG-1200 Flushbolt Guide is the piece that fits into the top or bottom of the door and acts as a guide for the Flushbolt Rod.  The piece measures 1-3/8" x 1-1/2".  The square hole in the piece is a 1/2" square.  The manufacture part number is FG-1200.

Cal Royal 5000 Night Latch Trim

3" X 7-3/4"

The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position.  This shaft is used on the 1690, 1790, and 2390 device.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.

To remove the old shaft just pull with a pair of Channel Locks or Pliers.  To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this.  The manufacture part number on this is SHAFT.101.

Dor-o-Matic 1490 LHR/ 1590 RHR Push Label
1-7/16" x 4-7/8"

Doromatic part # 4270107323 or PB213 Black-No longer available
Doromatic part # 4270107322 or PB215 Gold

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

Dor-o-Matic 1490 RHR/1590 LHR Push Label
4-7/8" x 1-7/16"

Doromatic part # 4270107321 or PB212 Black-No longer available
Doromatic part # 4270107320 or PB214 Gold

The Jackson 30-1345 Top Strike Package for the 2085-3185  is mounted on the frame of the door were the top latch can engage it.   The Package includes the Strike, Plate, Latch Adjusting Wrench and the Mounting Screws.   Jackson Part Number 30-1345.

No longer available

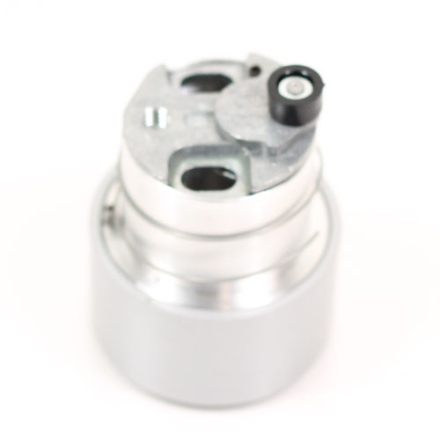

Doromatic 1590 Cylinder Assembly 159CA-NL

Doromatic part # 159CA-NL

The Doromatic 2390 Anchor Block Assembly is used to connect the push bar to the device channel.

Discontinued December 2024

Doromatic 1490 PB56 Lift Bracket

7-1/2" x 1" wide

Doromatic part # PB56 or 4270106796

The Falcon / Doromatic Door Closer SC61 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 9-1/16”, which is the most common mounting template out in industry today.  They used to be know as the Doromatic SC60, but in about 2008, they changed it to the Falcon SC61.  We ship the SC61 Rw/PA.

The Adams Rite 41-0131-119 Metal End Cap Assembly is used on the Latching Side of the device. It is used on the P8700 and P8800 Narrow Stile Pullman Exit Device.

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

Sargent Latch Bolt Spring.

Used to put tension on the latch bolt of the 20, 30, 60, and 80 Series Sargent exit devices

Sargent Part # 98-0028

Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

Yale 7200 Latch Assembly, used on the Narrow Stile Exit Device.

Yale Part # 60-7200-0354-048

Note the position of the hub on this latch is the 7200

The Dor-o-Matic 1990/2090 Cross Bar CBAR is used on the 990, 1090, 1990 and 2090 Dor-o-Matic and Falcon panic hardware.  The bar is 41" and 48" long and is easily cut in the field with a chop or hack saw.  The bar is constructed of extruded aluminum and then anodized to the correct finish.  The slot where the screw threads in is not threaded, but the screws, sold separately, are thread forming screws. The 41" bars are in stock, the 48" bars have a 3 week lead time

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Doromatic part # CBAR/  47285197 for the 41" bars, and 47286482 for the 48" bars.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Command Access MLRK-VD Motorized Latch Retraction is for use on the 33,35, 98 or 99 Von Duprin Exit Devices. This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD is a cost-effective and straightforward way to upgrade your Von Duprin 33/35 & 98/99 series device to motor-driven latch retraction in the field. For AX devices, see the MLRK1-VDAX listed on the cutsheet below. UL Listed + 3 Year Warranty

Von Duprin Exit Device 47 Bottom Latch Kit 050493

This Von Duprin Concealed Bottom Latch is used on the 33A, 35A, 98 and 99 exit devices.

Von Duprin Part # 050493
Von Duprin Old Part # 106780

International 58L Escutcheon Trim for the 5000 Series Devices

Non-handed, easily install with exit device Escutcheon plate measures 8-1/16" tall by 2-5/8" wide by 29/32" thick. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle-Most Popular
Passage - no cylinder hole, lever always active
Night Latch (Storeroom) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

Center Hung Door Closer

• Available (NHO) non-hold open, or (SHO) selective
hold open. Specify degree (90 or 105°)
• Standard top pivot: 340 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond desired opening
degree
• Vertical and horizontal door adjustment
• Arm centering adjustment

Corbin Russwin ED4200S Latch Assembly

The Corbin Russwin ED4200S 681F618 Latch Assembly is used on the Narrow Stile SecureBolt Exit Device.  The difference between the ED5200S and ED4200S Latch Assembly is the location of the Hub.  Hub on the ED4200S Latch Assembly is located on the center line of the Assembly Mounting Screws.

Corbin Russwin Part # 651F618

The Hub Position on this Latch is the ED4200

The Jackson 1085 Panic Device is one of a few original manufactures of Panic Hardware for aluminum framed glass doors, or storefront doors.  The 1085, 1095 along with their door closer the 20-330 were installed on about half of these doors in the 1970's and 1980's.  They were installed on Vistawall and Kawneer doors just to name a few.  Universally recognized as the standard for aluminum storefront hardware it is made of high tensile strength aluminum.  The device is Non Handed, Comes with 45" cross bar that is easily cut in the field.  Also includes the Concealed Vertical Rods, Screws and Strikes.

Replacement parts are available, in stock!

The Adams Rite 31-0944-IP is the fixture that latches on to the Top Strike Plate Assembly 31-0945.

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

When Less All Parts is selected only the Cylinder is shipped, just the replacement hydraulic cylinder will be shipped

No longer available, we do have some of the GPB116 Cam Assemblies left.

Doromatic 1490 Cylinder Assembly 149CA-HB

Doromatic part # 149CA-HB

The Von Duprin Strike 299 is used on the 22, 88, 98, and 99 Rim Devices and also as a Top Strike on the 2227, 8827, 9927, and 9827 Surface Vertical Rod Panic Devices. The 299 strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16".  Ships with shim and mounting screws.

The Sargent 624 Bottom Surface Strike is used on the 20, 30, 60, 80 and 90 Series Surface Vertical Rod Panic Hardware.  The Strike is mounted on the floor and the bottom latch locks on to it.   Strike measures 9/16" x 2-1/2" with a 3/8" projection.   Strike features a black coated epoxy.

Sargent Part #624
