Norton Unitrol Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-1 28-32"
6100-3 33-41"
6100-4 42-48"

The Dor-o-Matic 1990 and 2090 Set Screw PB38. This set screw goes in the housing to secure it on the mounting studs.  There is 3 of these screws on each housing, two on the left and right side toward the top, and one on the bottom.   The manufacture is now Falcon.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

LCN Drop Plate for Parallel Arm Mounting

The 18PA LCN Drop Plates are designed to lower the mounting holes on doors with glass at the top of the door. If your door has a narrow stile at the top of it surrounded by a metal frame, mount the door closer on this plate.

LCN Part #'s
1260-18PA
1460-18PA
4040-18PA
4040XP-18PA
4110-18PA

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

Global Stout Door Closer Bottom Pivot Set

The bottom pivot set is shipped with all the mounting screws and fasteners.

The Door Sweep 1" Long Rubber has an over height of 1-7/8", with 1" of it being the gray rubber seal.  The mounting rail is constructed of extruded aluminum and is available in aluminum or dark brown finishes.  This sweep ships with screws.

International Part # IDC-97V

LCN Drop Plate for Top Jamb Mounting

Use the LCN Top Jamb Mounting Plate for applications where the door closer body is mounted on a narrow overhead jamb.

LCN Part #'s
1260-18TJ
1460-18TJ
4020-18TJ
4040-18TJ

The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series.  It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color.  LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825

The Dor-O-Matic 1690/1790/1990/2090 Cylinder Bushing BUSH.102 fits around the Pinion gear to take up slack and reduce friction.  This piece is now known as the Falcon Panic Hardware BUSH.102, but for many years was called the Dor-o-Matic PB46.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

International 53K01 Lever Trim

The International 53K01 Lever Trim is for the 5000 Series International Door Closer exit device.  The rose diameter is 3-3/8", with a lever length of 4",  and the projection is 3".  Available in Aluminum or Dark Bronze colors.   Available in Dummy, Passage, Classroom and Storeroom functions.   Classroom function the  key locks and unlocks the Lever Handle, if you turn the key one way it is  only unlocked for that one passage, if you turn the key the other way, the Lever is unlocked until it is locked again.   Storeroom/Night Latch function the Lever is always locked. Passage the lever is always free to open the door, it is never locked.  Dummy the lever is stiff and only acts as a pull.

53K01A Classroom/Cylinder
53K01B Passage/Blank
53K01C Storeroom/Nightlatch
53K01D Dummy

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

SEM7850-828 Armature for LCN Electro Magnetic Door Holder features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

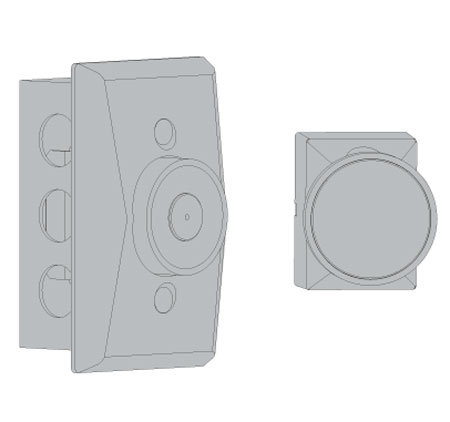

The SEM7850 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 3-5/8". Available in an aluminum or dark bronze color.   Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7850

The SEM7820 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface mounted on the floor. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 5-1/8" long x 4-9/16" wide and 3-7/16" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 6-3/4". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

LCN Part # SEM7820

The International 8600 Series End Cap is used on the hinge side of the the exit device.  This cap includes the mounting bracket and the mounting screws.   It is constructed of a die cast metal for years of service.  The piece measures 2-3/8" by 2-1/4" by 1-1/2".  This end cap is used on the International Door Closer models, 8510S, 8610S, 8710S, 8810S, 8620S, 8530S, and 8650S devices, along with the same devices ending in F.

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

Sargent H.D. Holder Stop Arm

Sargent part #25-PSH

The International Door Closer (IDC) 8710S is a narrow design rim device. The minimum stile width has to be 2-19/32 inches. The device features a 3/4 inch throw deadlocking latchbolt, hex key dogging, and ships with machine screws and strike. The device is Grade 1 Rated, which is the highest rating possible. The 36 inch device is 33-15/32 long and the 48 is 44-3/4 inches.

The SEM7840 LCN Electro Magnetic Door Holder features a metal die cast housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.  Outlet box not included

LCN Part # SEM7840

The Door Pull Offset 1" Diameter PH-4000 is usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.  This handle projects 3-1/4", has a 2-1/4" door clearance, comes in 9", 10" and 12" centers.  One of the most popular handles we sell.

The International Door Closer 8730S is designed for narrow stiles. The minimum stile width is 2-19/32 inches. It will not work on a true narrow stile door witch is usually 1-3/4 inch. The 36 inch version is 33-15/32 inches and the 48 inch version is 44-3/4 inches. The device is rated Grade 1, which is the highest rating. Rods are 1/2 inch diameter tubular with rod guides. The exit ships will all screws and strikes need for instillation.

The Corbin Russwin 188F03 Quik-Install Mounting Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is what you mount on the door or door frame and the door closer cylinder mounts to.  Corbin Russwin part # 188F03.

Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)
Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

Replacement LCN 4640 (4642) Door Closer Arm. Arm is Non handed and ships with screws.

LCN Part # 4640-3077

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

The SEM7800 LCN Electro Magnetic Door Holder Metal Cover is constructed of a metal die cast. This cover will work on the SEM7830, SEM7840 and SEM7850. Available in aluminum and dark bronze finishes.

LCN Part # SEM7830-72, SEM7840-72 and SEM7850-72

The Norton 7700SLD Slider for replacement of the 7700PT Series Power Track Closers.  This is the piece that slides in the track and the arm attaches to.  The unit measures 2-1/16" long by 1-1/4" wide and 5/8" thick, not including the metal clip on the back.

Jack Nut 10-24

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

Jack Nut 1/4-20

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

This replacement tip is used on the WB11, WB12, WS20 and WS33.
5/8" insert diameter
7/8" head diameter
1" overall length

• Designed for use on all Type 161 Cylindrical Locks (ANSI 156.2 Series 2000)
Monolock and Unilock.
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
opening between door and frame at latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

1-1/2" Wide x 7" High
Stud center to center: 4-1/2"

Hager Parallel Arm Bracket

Hager Closer Std. Pa Bracket-52/53/54 Series

Hager Door Closer Standard Parallel Arm Bracket - 52/53/54 Series

Hager part # 5900

• Not load-bearing
• Available 3/4"(19mm) offset only
• Non-ferrous base material
• Used with 117, 117-1/4, 195, UNI closers,
127 closer
• Maintains door alignment
• Furnished with wood and machine screws

Handing diagram

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

The Full Mortise Regular Weight Hinge are for lighter weight interior doors without a door closer.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed brass

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)
