ADA Sliding and Barn Door Push/Pull Set. Pull handle is 3/4" round stock with 6" center to centers and 2-1/2 inch clearance.  The flush pull is 4" x 7" x 1-1/8 inch ADA.

The Dorma 8812 Offset Slide Arm for RTS88 is used on in the RST31, RST30, RTS29, RST28, RST27, RTS26 and RTS25 packages.  This arm is used on Single Acting Doors.  The track measures 13" long by 1-3/16" wide by 7/16" thick.   This is the arm you probably have if you are using 3/4" offset hinges or 4-1/2" wide butt hinges.

Dorma Part # 8812

Floor Dome Door Stop 1" Height FS436

We ship the H.B. Ives FS436 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1" and a base height of 3/16".

Floor Door Stop Dome 1-3/8" FS438

We ship the H.B. Ives FS438 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1-3/8" and a base height of 9/16".

The Dorma RTS88 Door Closer is an overhead concealed closer for both single and double-acting doors.  It is one of the more popular overhead concealed closers on the market today.  The RTS88 will consist of a steel cam, rollers, and springs housed in a compact cast iron body.  Closers will be capable of being installed in minimum 1-3/4" x 4" headers. RTS88 will have maximum door opening to 90º or 105º, trim conditions permitting. Sweep and latch speed will be controlled by two noncritical adjustment valves from 90º or 105º to closed. Built-in pressure relief valve will protect the closer from abuse caused by forced closing. A mechanical backcheck combined with a positive stop at 90º or 105º will be provided to protect the door and frame. The RTS88 closer will be available with hold open at 90º or 105º, or without hold open. The product shown here is just the replacement cylinder.

The Von Duprin 99 Mechanism End Cap 050014, also known as 33A/35A/98/99/330/350 Impact Resistant End Cap Kit.  Replaces all of the old versions of the 98/99 End Caps, the mounting holes may be different.  Includes end cap, bracket and all screws

Von Duprin Part # 050014

Dorma 8916 Door Closer

The Dorma 8916 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and back check, along with a narrow projection full cover and flatform style arm.

 Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8916-AF89P

2-1/8" x 5" hole spacing

Dome Door Stop 1-5/8" Height 521

The 521 is a larger version of the other dome stops we offer.  It offers forged brass construction with a gray rubber bumper.  The base measures 1-3/4" diameter x 1-5/8" High, with a 1/4"  thickness.  That this point only US26D-Brushed Satin Chrome is available.  It ships with wood screws and machine screws  and floor anchors.

Dorma 7414 Door Closer

The Dorma 7414 Series door closer features back check and adjustable spring sizing and is the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install. The 7414 Series offers a compact design and is available in a variety of sprayed finishes to complement any opening’s decor.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

Floor Door Stop Dome 1" Height 522

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1" tall.  The base is 5/16" thick.  This door stop ships with wood and machine screws and all of the anchors.

Floor Door Stop Dome 1-1/4" Height 523

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1-1/4" tall.  The base is 1/2" thick.  This door stop ships with wood and machine screws and all of the anchors.

Dorma 8616 Door Closer

The Dorma 8616 door closer series is a non-handed surface applied door closer with adjustable spring power and back check positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

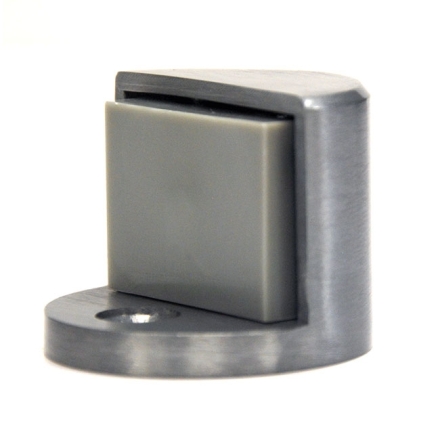

The Ives Universal Dome Floor Stop FS439 is constructed of cast zinc or stainless steel, depending on the finish.   The stop measures 1-1/2" high, with a base height of 1/4" and base diameter of 1-7/8".   The pad has a height of 1-1/8" from the floor.

Ives Part Number FS439

Replacement Chassis Cover for the Dorma 9300 Rim Device

The Dorma 8831 Top Arm for RTS88 is for use on Single and Double Acting doors.  This arm is known as a side load arm, and usually has a notch in the door at the top to access the arm fastening block.  This piece measures 10-1/2" long by 1-3/8" wide at the widest part, and is 1/2" thick.  This is the standard arm in the RST01 and RST02 Packages.

Dorma Part # 8831

Replacement Dorma 9000 Series End Cap, sometimes know as the EC9

Shown in Dark Bronze

The Dorma 8400 Center Case Cover is used the 8000 Series Surface Vertical Rod Devices.  The cover is black plastic, the screws are not included.   Dorma Part # CHCOV84

Dorma 8400 Surface Vertical Rod Exit Device minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. 5 year limited warranty.

The Dorma 4 Loop Torsion Spring is used on the 9000 Series Exit Device Escutheon Lever Trims. Spring measures 1 inch diameter by 5/16 thick.

Dorma Part # 780367270 or 6000-717-500

The Cal-Royal CRCODE204 is for use with the 2200, 7700 and 9800 Rim and Surface Vertical Rod Devices. The Lever Mechanism features a Break Away Lever, for use with 1-3/4 inch to 2 inch thick doors, non-handed, Single Code User, Key Override, easy on the door code change, weather resistant, and more than 8000 non-sequential possible code combinations.

Installation and Programming Instructions

The Dorma 95059481 Lever Trim Return Spring is used on the 8000 series Lever Handles.   The spring has a 2-3/16" diameter.

The Dorma 9DRKIT Dogging Assembly is used on the 5000 and 9000 Series non Fire Rated hardware.

Escutcheon with R Lever Trim for Dorma 9300 Rim Device, Classroom Function, Key Locks or Unlocks Lever.

The Dorma Rim Device Strike 463 is used on the 8300, 8300F, 9300 and 9300F exit devices. Mounting screws included.

Dorma 9400 Rod Guide and Screw Package, featuring two rod guides in the Stainless Steel finish.

The Dorma 8300 Center Case Cover is used the 8000 Series Rim Devices.  The cover is black plastic, the screws are not included.   Dorma Part # 18002177

Dorma R08 Lever Trim, Key-In-Rectangular Lever Entrance by Lever Includes DORMA Key-In-Lever Cylinder 7013SC

The Dorma 8835 Top Arm for RTS88 is for use on Double or Single Acting doors that have a 1" top rail.  This arm is used on aluminum framed glass storefront doors. The arm is 10-7/8" long and 1-3/8" wide.  The spindle lug 1" thick.  This is the standard arm on the RST07 and RST10 packages.

Dorma Part # 8835

DORMA 8300 Series Exit Devices minimize forced entry while offering a low-cost solution to life safety requirements. Certified/listed to ANSI/BHMA 156.3 Grade 1 for exit devices. Package includes all the mounting screws and brackets, and the surface strike.  5 year limited warranty.

The Handicap ADA Hands-Free Door Pull BM4511 is an ADA compliant. You can hook your forearm/wrist into the open end to open a non-latching door. The pull is constructed of stainless steel and is available in brushed stainless steel, powder coated flat black or powder coated dark bronze. The plate measures 4 x 16 inches and the grip is tack-welded to the plate and also has a 5/16-18 thread for thru bolting. The grip is 1-1/4 diameter by 8 inches. Ships with 6 mounting screws and one 5/16-18 thru bolt with finished washer in matching finish.

Sargent ET Locking Slide Kit for 706 Controls

Kit includes everything shown in picture.  Separate components are not sold separately.

Sargent Part # 607-2

The Dorma 8832 Top Arm with Channel for RTS88 is for use on Double and Single Acting Doors.   We usually find this arm on wood doors.  This arm is 10-5/8" long by 1-1/2" wide at the widest point, and is 5/8" thick.  It is the standard arm in the RST04, RST05 and RST06 packages.

Dorma Part # 8832

The Von Duprin 22 End Cap Only 968601 is the end cap that goes on the hinge side of the door. When the cap breaks off the Dogging Cover Plate just slides off. Works on all of the Von Duprin 22 exit devices. If you need the bracket also, please order part # G22R10. Black plastic construction. As of October 1, 2014, Von Duprin no longer sells just the Plastic Cap Only. The complete End Cap and Bracket 900981 will be shipped in its place.

Von Duprin Part # 968601

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

Dorma Conversion Plate BP86C

use this plate with the 8616 to convert the old style 7601 and 7801. By using this plate you will not have to redrill holes
