Electrically Operated Holder Parts| LCN Door Closer

For the past 45 years we have been selling the LCN SEM Magnetic Door Holders.  We are now offering online the replacement components for these holders.  We have the Armatures (door mount part), Magnetic Cores, Cover Plates, Extensions and the Ball Pinot Connection Link.   These components are  in stock for quick delivery.  If you do not see the piece you are looking for, contact us and we will send you a parts manual.  We do not have the Rixson pieces up yet, but they are also available.

Filter
View as Grid List

9 Items

per page
Set Descending Direction
  1. LCN SEM7810 Extensions

    These standard metal extensions can be used with the LCN SEM magnet door holders to increase the holder projection. The treads on this piece are 3/8-16.

    LCN Part #'s
    SEM7810-E050 1/2"
    SEM7810-E075 3/4"
    SEM7810-E100 1"
    SEM7810-E200 2"
    SEM7810-E400 4"

    SEM7810
    As low as $36.61
  2. SEM7810-514 LCN Ball Pivot Connection Link

    The SEM7810-514 LCN Ball Pivot Connection Link Coupler Assembly Kit, is required for each door needing extension(s). Kit includes coupler link and ball pivot (alone serves as an 1-1/2" extenison). The threaded end is 3/8-16.

    LCN Part # SEM7810-514





    SEM7810-514-
    As low as $42.80
  3. SEM-7800-825 Armature for LCN Electro Magnetic Door Holder

    The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series.  It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color.  LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825

    SEM7820-825-
    As low as $146.73
  4. LCN SEM7850-515 Magnet Hardware Package

    LCN SEM7850-515 Magnet Hardware Package is used to mount the Armature or the Door Mounted part of the Magnetic Door Holders.   If you are currently using LCN door holders, you will not need to purchase this.   However, if you are using another brand and they have gone missing, you will need to purchase this component.

    SEM7850-515
    $28.16
  5. SEM7830-516 LCN Magnet Core Assembly

    The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

    LCN part number SEM7830-516

    SEM7830-516
    $187.24
  6. SEM7800 LCN Electro Magnetic Door Holder Metal Cover

    The SEM7800 LCN Electro Magnetic Door Holder Metal Cover is constructed of a metal die cast. This cover will work on the SEM7830, SEM7840 and SEM7850. Available in aluminum and dark bronze finishes.

    LCN Part # SEM7830-72, SEM7840-72 and SEM7850-72

    SEM7830-72-
    As low as $110.94

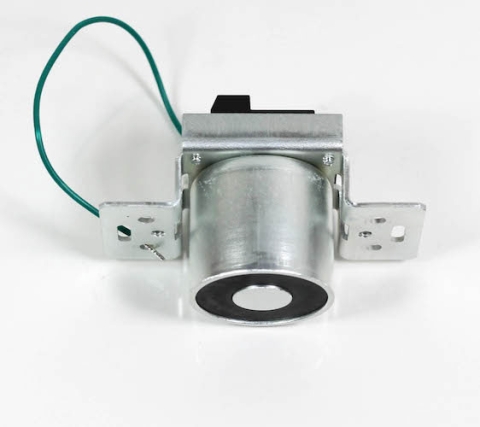

  7. SEM7840-516 LCN Magnet Core Assembly

    The SEM7840-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC. Cylinder is 1-3/4" diameter and projects out 7/8" out from the mounting plate.

    LCN part number SEM7840-516

    SEM7840-516
    $187.24
  8. SEM7850-828 Armature for LCN Electro Magnetic Door Holder

    SEM7850-828 Armature for LCN Electro Magnetic Door Holder features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 2-5/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

    LCN Part # SEM7850-828

    SEM7850-828-
    As low as $214.74
  9. SEM7820-516 LCN Magnet Core Assembly

    The SEM7830-516 LCN Magnet Core Assembly is just the Tri Voltage Magnet Core. This core is used on the Floor Mounted SEM7830.  It has 35 pounds of holding force at nominal input voltage. Maximum current draw is .020 A @ 24 volt and 120 volt, and .030 A @ 12VDC.

    LCN part number SEM7820-516

    SEM Parts Manual

    SEM7820-516
    $202.22
