The 460 ADA Flush Pull measures 5 inches by 5 inches  and is made of 1/8 inch material.  The opening size is 3-1/2 inches by 3 inches. The pull is fastened to the door with 10-24 by 5/8 inch security torx with barrel nuts.  The pull is designed for 1-3/4 thick doors, please specify if your door is thicker than 1-3/4 inches.  Available in Brushed and Polished Stainless Steel and also Powder Coated Flat Black and Dark Bronze.

The Door Pull Handle 22 features an opened end and a closed end pull. This Door Pull is also known as a Door Handle or Door Grip. The dimensions are 14" overall length, 8" centers, with a 3/8" by 1-1/4" handle cross section.   The mounting posts have a 1" diameter, and the handle projects out 1-7/8".  The handle ships with thru bolts and finish washers.  It is constructed of aluminum, stainless steel or brass depending on the finish you are looking for.

With the Handicap Door Pull 119 you are able to get a closed fist behind the pull, which makes it a great ADA Door Pull. Also known as the Double Arm Pull it is constructed of aluminum, brass or stainless steel stock.   It measures 8-1/2" overall length and has 5-1/4" centers on the mounting screws.  The flat bar stock is 3/8" x 1", and the round mounting post is 3/4" diameter.  Shipped with screws and finish washers. Also known as a Handicap Grip, ADA Door Pull or Handle.

The Door Pull Offset 3/4" Diameter #29 is constructed of either solid, Aluminum, Brass or Stainless Steel. The handle 3/4" diameter tubing with a 2-1/2" projection and 2-1/2" offset.  We find these on narrow stile aluminum framed glass storefront doors.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

The Door Pull 25 is made of 3/4" round stock in either solid, Aluminum, Brass or Stainless Steel. The handle has a 2-3/8" projection from the door, and 1-5/8" clearance from the door to the back of the handle.  It comes standard with thru bolts and finish washers, but can be special ordered if you would like the handle mounted back to back or surface mounted. Also known as a Door Handle or Door Grip.

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

Door Pull 47

7-3/4" overall
7" centers
3/4" x 1" base
2-3/8" projection

Floor Door Stop / Holder Heavy Duty 541

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 3" high.  Uses a 3/4" diameter hole for the lag sheild.

The 598-12 or 5599-24 feature heavy duty steel construction to ensure maximum strength and security. The bolt measures 1/4 x 3/4 x 12 or 24 inches and ships with strikes and mounting screws. The finish in Brushed Chrome. This bolt is UL approved.

The Door Pull Handle 15 features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

Trim Protector Bar

A great product for applications were your door knobs and levers are getting damaged due to hand carts and other items hitting door trim. Mount this product above or below existing items on walls and doors to protect and sheild them from damage.

Material: Brass, Bronze, Stainless Steel
Material Size: 3/8" x 1-1/2"
Base: 1-3/4" x 3-1/2"
Projection: 3-1/4"

The Door Pull Handle 16 has an overall length of 7-1/2". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

Door Pull 30

10" centers
11" overall
2-7/8" projection
1-3/4" offset

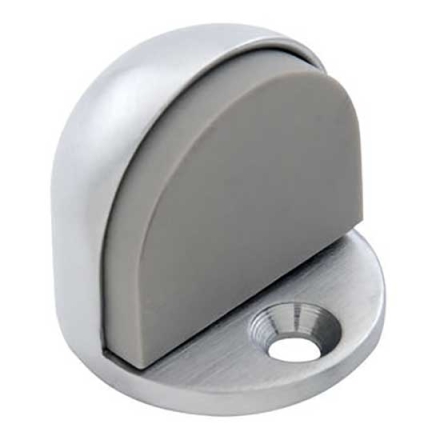

Dome Door Stop 1-5/8" Height 521

The 521 is a larger version of the other dome stops we offer.  It offers forged brass construction with a gray rubber bumper.  The base measures 1-3/4" diameter x 1-5/8" High, with a 1/4"  thickness.  That this point only US26D-Brushed Satin Chrome is available.  It ships with wood screws and machine screws  and floor anchors.

The Hands-Free/Foot Door Pull BM46 can be used as a ADA compliant hands-free door pull when mounted 42" above the finished floor. Or as foot pull when mounted at the bottom of the door. The Pull is 4" x 5" and is made of .090 thick stainless steel. Ships with sex bolts and screws for 1-3/4" door. Available in Brushed Stainless Steel, Flat Black Powder Coat and Dark Bronze Powder Coat.

The Door Pull Handle 14 has 5-1/2" centers on the mounting screws. And has a 2" diameter base. It features a 2-1/4" projection with a 1-1/2" clearance. Also known as a Door Handle or Door Grip. The handle ships with thru bolts and finish washers.

The C Shaped Offset Pull has 12 inch centers and has a 13 inches overall lenght. The clearance is 1-1/2 inches with a 2-1/2 inch projections. The handle is constructed on 1 inch diameter stock, the offset is 7 inches. The base is 7/8 inch round stock. The handle is furnished with thru bolts and finish washers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Floor Door Stop Heavy Duty 540

This Floor Mounted Door Stop is a personal favorite. It is extremely heavy duty, and is ideal for areas of high vandalism. Includes the 4-1/2" lag bolt & lag shield. The rubber base is 3" in diameter and is 2-5/8" high.  Uses a 3/4" diameter hole for the lag sheild.

The 459 Flush Door Pull measures 3-3/8 x 4-3/4 x 1/8 inch.  The opening size is 1-3/4 by 3-1/2 inches.  The mortised pocket would need to be 3-3/4 by 2-13/16 and 11/16 deep. The flush pull ships with mounting screws in the matching finish.

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

The Burns 617 Non-Locking Pocket Door Pull Set is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Please allow 7-10 days for shipment.

Finishes

Fabricated from B & S 16 ga. (.050). Standard lengths are 36", 42" and 48". Custom capabilities include variations of all of the above parts including frame protectors and vertical rod protectors.
Custom sizes are available!

Screws included for mounting

Please allow 7-10 for shipment.

Finishes

Solid offset door pull 1-1/4 inch diameter round stock.  Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

This Barn Door Pull Set features back to back handles that are thru-bolt mounted for a hassle-free setup.  The Grip is 6 inches on centers and is constructed of 3/4 inch round stock, and projects out 2-3/8 inch. The flush pull face dimensions are 2-1/2 by 7 inches. The mortise size of the flush pull are 2 x 7/8 deep x 1/4 inch.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Door Pull Handle 17 has an overall length of 10". The base diameters are 2" with three holes each. The handle projects out 2-1/4" and has a clearance of 1-1/2". Also known as a Door Grip or Door Handle. This handle ships with 6 wood/sheet metal screws.

The 1 inch diameter Decorative Cap comes in two different tread sizes 1/4-20 and 5/16-18.  The Cap measures 1 inch diameter by 3/8 inch thick. Stainless Steel base material.

The Door Pull Handle 23 features two closed ends. This Door Pull is also known as a Door Handle or Door Grip. The dimensions are 14" overall length, 8" centers, with a 3/8" by 1-1/4" handle cross section.   The mounting post has a 1" diameter, and the handle projects out 1-7/8".  The handle ships with thru bolts and finish washers.  It is constructed of aluminum, stainless steel or brass depending on the finish you are looking for.

The Door Pull Handle 11  has 8" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 9-1/4". The projection is 2-1/8" and the clearance is 1-1/2". Also known as a 8" Center Door Grip or Door Handle. This handle is shipped with thru bolts and finish washers.

The Door Pull Handle 10 has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

The Corner Guard 310 are a great way to protect corners in areas of high traffic and high abuse, such as warehouses and hospitals.  Fabricated from 16 gauge (.050") thick metal they measure 3-1/2" on both arms, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. They come standard with screw mounting, but other options are available.

 Screws included for mounting

Finishes

The Corner Guard 301 are a great way to protect corners and edges of doors.  Fabricated from 16 gauge (.050") thick metal they measure 1" on one arm and 1-3/4" on the other, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. This product is ideal for high traffic or areas of high abuse.   They come standard with screw mounting, but other options are available.

Screws included for mounting

Finishes

The Corner Guard 311 are a great way to protect corners in areas of high traffic and high abuse, such as warehouses and hospitals.  Fabricated from 16 gauge (.050") thick metal they measure 2" on both arms, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. They come standard with screw mounting, but other options are available.

 Screws included for mounting

Finishes

The Door Pull Handle 24 features a 6" center to center screw spacing. The handle is constructed of aluminum, stainless steel or brass depending on the desired finish.  The handle is 1" solid diameter stock and the mounting posts are 3/4" diameter stock.  It measures 8" overall length and projects from the door 2".  It ships with thru bolts and finish washers. Also known as a Door Handle or Door Grip.

Back to Back mounted handles constructed of 3/4 inch round stock.  One handle will be threaded and the other will have a stud mounting that is secured by a set screw. The connecting stud is for 1-3/4 inch thick doors, if you door is a different thickness let us know in the Comments Section of the Check out process, or email us.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Back to Back mounted Off-Set Door Pull featuring 1-1/4 inch stock diameter stock. Handle has a 4 inch offset with a 2 inch clearance and 3 1/4" projection. Available in 12 or 18 inch centers. Sold as sets, 2 handles and 3/8-24 thread stud.

Back to Back fasteners are for a 1-3/4 inch thick door, if your door is a different thickness, please let us know in the comments.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.
