Search results for: 'heavi coat pull plate grand'

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

The Diamond Plate Aluminum Door Kick Plate are solid aluminum.   They are 1/8" thick and have a gloss or polished finish.  These plates have the Diamond pattern, and the diamonds are 1-1/8" long.  Custom sizes are available, they run about $0.39 per square inch.  The lead time on these plates is about 7-10 days.

The 422 with 49D are constructed of 1 inch solid stock, with the material determined by the finish (color). The push bar has a clearance of 1-1/8 and the handle has a clearance of 1-1/2 inches. The projection is 2-1/8 on the push bar and 2-1/2 inches on the handle. The pull handle is 12 inches on center, with a 7 inch offset. The set comes with two 5/16-18 thru bolts and one 5/16 back to back conehead.

The M422 with M49D are constructed of 1-1/4 inch solid stock, with the material determined by the finish (color). The push bar has a clearance of 1-1/2 and the handle has a clearance of 1-1/2 inches. The projection is 2-3/4 on the push bar and 2-3/4 inches on the handle. The pull handle is 12 inches on center, with a 7 inch offset. The set comes with two 5/16-18 thru bolts and one 5/16 back to back conehead.

Aluminum Kick Plate with Diamond Plate Finish, .063 inch thick.  Same as our 1/8 inch thick plate, but 1/16 inch thick. Plates come with or without screws, the without will not be drilled.

The Door Pull Handle 15 features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

The Door Pull Handle 12 has a 5-1/2" centers hole spacing and is 6" overall. It has 2" projection with 1-3/8" clearance and the base is 5/8" x 1-1/4". Also known as a Door Handle or Door Grip. Shipped with thru bolts and finish washers.

The Gold Aluminum Door Kick Plate are constructed of .040" thick aluminum base material that is then anodized to a polished brass finish. These plates are a great alternative to the Solid Polished Brass and Lifetime Brass kick plates. Custom sizes are available, they run about $0.24 per square inch or less.  Ships with matching Phillips type sheet metal screws..  Please allow 7-10 days for delivery
.

The Lifetime Brushed Brass Door Kick Plates are the same as the Lifetime Polished Brass Door Kick Plates, solid stainless steel base metal, 16 gauge (.050" thick), but the surface is Satin or Brushed.  Because it is an artifical finish they will not tarnish.  Custom sizes available starting around $0.41 per square inch depending quantity.  Kick Plate comes with screws for mounting.  Please allow 1 week shipping time.

The 590 is made of solid brass and ships with matching screws.  The faceplate measures 1 x 6-3/4 inches, the strike is 15/16 x 2-1/4 inches and comes standard with a 12 inch rod.  The mountng screws are 1 x 6-1/4 inches on centers.

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Push Bar w/Handle 422X26 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

The Corner Guard 311 are a great way to protect corners in areas of high traffic and high abuse, such as warehouses and hospitals.  Fabricated from 16 gauge (.050") thick metal they measure 2" on both arms, and can come in any length.  Standard lengths are 36", 42" and 48", but we have the capability to modify to your specifications. They come standard with screw mounting, but other options are available.

 Screws included for mounting

Finishes

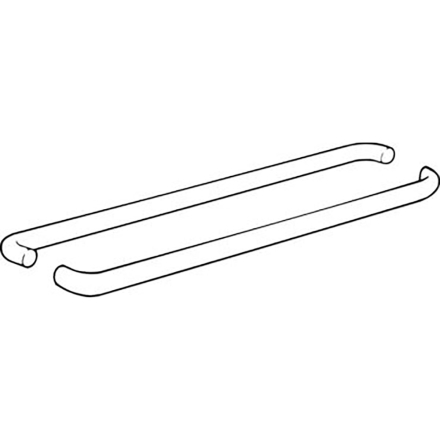

The M422 x M422 Push Bar Set is constructed of 1-1/4 inch diameter solid stock, and is shipped to your specified center to center dimensions. The push bar has a 1-1/2 clearance and 2-3/4 inch projection. The set ships with back to back fasteners.

The Burns 618 Locking Pocket Door Latch is 2-3/4 inches tall by 2-1/2 inches deep. The mortise dimensions are 2-5/16 inches tall by 1-7/8 inch deep. Base metal is Brass or Aluminum depending on the finish.

Push Bar Adjustable 452

Finishes:
US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brass
US5/609 antique brass
US10/612 brushed bronze
US10B/613 dark bronze

Material: Brass
Material Size: 5/8" round tube adjustable to 36"
Base: 5/8" x 8-1/2"
Clearance: 1/2"
Projection: 1-1/8"

Push Bar Adjustable 454

Finishes:
US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brass

Material: Brass
Material Size: 1" round tube adjustable up to 36"
Base: 2" round x 2-1/2"
Clearance: 1-1/2"
Projection: 2-1/2"

Back to Back mounted handles constructed of 3/4 inch round stock.  One handle will be threaded and the other will have a stud mounting that is secured by a set screw. The connecting stud is for 1-3/4 inch thick doors, if you door is a different thickness let us know in the Comments Section of the Check out process, or email us.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The Push Bar W/Offset Grip 422X39 is usually found aluminum framed glass store front doors.  It is constructed of 1" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 8", 10", 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

The Push Bar With Offset Grip M422XM39 is usually found aluminum framed glass store front doors.  It is constructed of 1-1/4" diameter solid aluminum, brass, bronze or stainless steel, depending on the finish.  The handle or grip will have either a 12" or 18" center to center screw spacing.  The push bar center to center length is determined by you, we can do any reasonable size.  Establish the center to center dimension by subtracting the width of one stile from the width of the door. On solid doors, subtract 5" from the width of the door.  All the fasteners are included, and are determined by the material your door is made of (wood or metal).   Please allow 3-4 weeks on the Dark Bronze and Aluminum, and 2 weeks on the other finishes.

Finishes

The 422 x 422 Push Bar Set is constructed of 1 inch diameter solid stock, and is shipped to your specified center to center dimensions. The push bar has a 1-1/8 clearance and 2-1/8 inch projection. The set ships with back to back fasteners.

The Push Bar 1' Diameter 422 can be used on any door, but is usually found on aluminum framed glass store front doors.  They are constructed of 1" diameter solid aluminum, stainless steel, bronze or brass depending on your select finish.  The bar has a 2-1/8" projection and 1-1/8" clearance.  The push bar ships with thru bolts and finish washer in matching finish.  Please allow 4 weeks on Aluminum, Polished Brass, and Oil Rubbed Bronze. Stainless Steel and Polished Stainless Steel take about 2 weeks.

The 598-12 or 5599-24 feature heavy duty steel construction to ensure maximum strength and security. The bolt measures 1/4 x 3/4 x 12 or 24 inches and ships with strikes and mounting screws. The finish in Brushed Chrome. This bolt is UL approved.

Automatic Floor Type Holder and Stop

A replacement holder and stop that has been around for many years.   This style of Holder can be found in many of the schools, churches and hospitals that were built in the 1960's and 1970's.  Cast brass construction, and then chrome plated. Measures 3-11/16" high by 3" wide with a 1-15/16" projection. The strike is 1-3/16" high. Spring loaded brass roller, rolls over the the strike to lock the door in the open position. To release, just give the door a tug.  Designed for doors with a door to floor clearance of less than a 1/2".

The 538 Automatic Door Holder is constructed of cast brass, and then chrome plated. The wall mounted strike has a pivoting head to adjust to different angles. The Holder/Stop measures 3-11/16 x 3 inch base, the stop projects out 1-15/16, and the strike projects out 3-1/4 inches. Holder/Stop ships with fasteners.

Only available in Brushed Chrome Finish.

The Plunger Type Door Holder / Stop 583 is constructed of solid cast brass, that is then plated to the desired finish.  It measures 5-3/8" by 2-1/4" base with a 1-1/4" projection.   The throw is 1-1/4".   These are sometimes called pop-up or push down stops.   This piece will ship with matching finish mounting screws.

Floor Door Stop Dome 1" Height 522

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1" tall.  The base is 5/16" thick.  This door stop ships with wood and machine screws and all of the anchors.

Floor Door Stop Dome 1-1/4" Height 523

This contemporary looking Dome Stop has been a hot selling in the last few years.  The stop is constructed of forged brass, that is then chrome plated and brushed to the satin finish.  At this time, only brushed or satin chrome is available.  The base is 1-11/16" wide by 4" long and 1-1/4" tall.  The base is 1/2" thick.  This door stop ships with wood and machine screws and all of the anchors.

Floor Door Stop / Holder 536

The Stop and Holder 536 is considered a manual door holder.   It is a manual door holder because you have to physically bend over and hook and unhook the holder.  This holder is constructed cast brass or cast bronze and then plated to your desired finish.  The stop measures 2-1/2" in diameter and 3-7/8" overall height, with a center line height of 2-1/2" from the base to the center of the rubber stop.  It ships with all of the fasteners.

Floor Door Stop 524

The 524 Door Stop is one of the more interesting door stops we have.   They are constructed of cast brass that is then plated to your finish.  It measures 1-1/4" in diameter and is 1-1/2" tall.  One of the benefits of this door stop is there are no exposed screws.  The 524 ships with a 12-24 x 1" machine screw, a plastic anchor and a lead anchor.

The Wall Door Holder/Stop 531 features cast brass or bronze finish which is then plated to the desired finish.  This is considered a manually operated door holder, because it does not latch automatically.  It features a 2-1/2" base with 3-5/8" projection, and ships complete with all of the needed fasteners.
