The Falcon TD35 Roller Strike is used with the Dor-o-Matic Falcon 1590, 1790, and 2090 panic device where you are trying to protect the frame when the door closes.   The strike has been manufactured since the 1970's.  This part is also known as a Kawneer 133479 strike.  The strike ships with mounting screws in a painted black finish.   This style of strike is also known as a Blade Strike.

Doromatic Falcon Part # TD35 or 4270107393

Doromatic 2390 Fixed Cover

The Doromatic 2390 Fixed Cover also known as the center case cover. The cover is 1-1/2" wide by 3-7/16" high and projects out 2 inches. The mounting screws are 3" on center.

Doromatic / Falcon Part # COVER.127 or PB341

Dor-o-Matic 1790 Center Case Cover.

Replacement Center Case Cover by Falcon Dor-o-Matic is made of die cast metal, then electro-statically painted black.   Cover includes mounting screws.

Doromatic part # COVER.120 or PB329

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown

The Falcon Dor-O-Matic RM70 Mullion Bracket Kit includes the top and bottom brackets and all of the mounting screws.

Falcon part # 4270108954

Doromatic PB48 Strike Shim Package Of 10 Pieces

This Dor-o-Matic product is for the PB48 Top Strike. This is the shim that goes under the top strike. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. They are only sold in packages of 10.

Doromatic Part # SHIM.112

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB48.

Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

The Dor-o-Matic 1990 and 2090 Set Screw PB38. This set screw goes in the housing to secure it on the mounting studs.  There is 3 of these screws on each housing, two on the left and right side toward the top, and one on the bottom.   The manufacture is now Falcon.

Doromatic part # SCREW.1039 PB38

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware.  This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece.  Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.

LEFT HAND HOUSING SHOWN IN PICTURE

4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead time

1990 parts breakdown

2090 parts breakdown

The Falcon Dor-o-Matic 3049DS Dead Stop Hold Open Arm is used on their SC60, SC70 and SC80 Door closers only. This arm is non-hnaded, stamped, heavy duty, hold-opn parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic and harsh conditions.

Select Color and Function (SC60, SC70 or SC80 Door Closer Model #)

Dor-o-matic bottom rod guide. Fits up inside the door to take up slack in bottom rod. Also known as the GPB134 and G1990134

Doromatic part # 4270107176

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

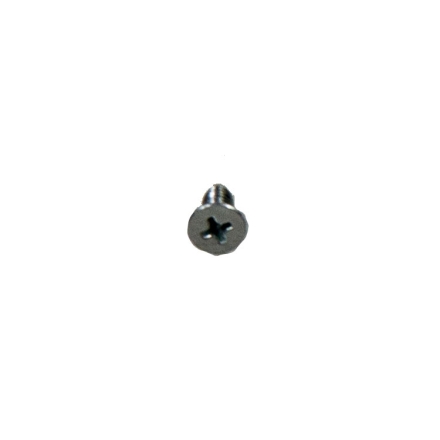

The Falcon Doromatic Latch Screw PB17 is also known as the SCREW.1029 and the GPB17.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Effective December 20, 2024 the 2390 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the 1690.

Doromatic 2390 Exit Device

The Dor-o-Matic 1690/1990 Top Rod Latch Assembly PB130 is also used on the 1390, 1490 and 2390.  This latch has been around since the 1970's,  and is usually the issue if your bottom rod is dragging on the floor.  Although we are calling it Dor-o-Matic, it is actually known as a Falcon SU Top Latch due to a name change 5 or 6 years ago.  This latch rolls over when the device is pressed in and then locks in that position.  When the door closes, the 'U" channel of the latch flips over to a vertical postion and drops the rods.  This latch always uses the PB48 Strike, our part # G199034.  The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008.  They are basically the same device, with the same parts, just a different name plate.  Falcon part # PB130 or 4270101806.
