The Dor-O-Matic 1690/1790/1990/2090 Cylinder Bushing BUSH.102 fits around the Pinion gear to take up slack and reduce friction.  This piece is now known as the Falcon Panic Hardware BUSH.102, but for many years was called the Dor-o-Matic PB46.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Dor-o-Matic 1790

Dor-o-Matic 1790 Repair Parts Breakdown

The Doromatic 1990 Panic Device has a long history of reliable performance.  Although it is now called the Falcon 1990, they are the same device.  This device is non handed, meaning it can go on left hand or right hand door.  The standard included 41" crossbar will work on doors up 3'8" wide, and the stardard rods will work on a 7' door.  It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.  The package includes all of the mounting screws and strikes.

Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.
Cylinder: Rim, key entry (NL) or hold back (HB) available
(field selectable)
Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.
Doors: 1-3/4" thick metal doors.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Dor-o-Matic 990/1090/1990/2090 Cross Bar Screw

Doromatic part # SCREW.1027

1/4-20 x 1" Self Tapping Threads

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

The Falcon / Doromatic Door Closer SC81 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 12”, which is the same hole spacing as the Norton 8301, 8501 and the Yale 3301, 3501 Door Closers.  We ship the SC81 Rw/PA.

The Falcon / Doromatic Door Closer SC91 is an affordable, high quality closer for residential or light commercial applications.  They used to be know as the Doromatic SC90, but in about 2008, they changed it to the Falcon SC91.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 3 closer, which is the lightest grade you can get.   The hole spacing is 3/4” x 6-3/8”.  We ship the SC91 Rw/PA.

The Falcon SC71 Door Closer used to go by the Doromatic SC71. This is a higher quality door closer at a more affordable price. This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension. It has the ability to be mounted on the push, pull or top jamb and is non handed. This closer is considered a Grade 1 closer, which is the highest grade you can get. The hole spacing is 2-3/8” x 6-3/4”, which is the same hole spacing as the Norton 7500 and Yale 4400 door closers. We ship the SC71 Rw/PA

The Falcon / Doromatic Door Closer SC61 is an affordable, higher quality, standard template closer.  This closer offers adjustable closing, latching and back check speeds, along with adjustable spring tension.  It has the ability to be mounted on the push, pull or top jamb and is non handed.  This closer is considered a Grade 1 closer, which is the highest grade you can get.  The hole spacing is 3/4” x 9-1/16”, which is the most common mounting template out in industry today.  They used to be know as the Doromatic SC60, but in about 2008, they changed it to the Falcon SC61.  We ship the SC61 Rw/PA.

Falcon Dor-O-Matic STK45 Surface Strike

This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.

US19-Black finish

The Falcon OHC100 and OHC101 Door Closer Body Only are designed for a wide variety of Doors.   The OHC100 is for use on larger exterior doors and has spring size adjustments of 3-5.   The OHC101 is designed for smaller or interior vestibule doors, with an adjustable spring size of 1-3.

Doromatic Door Closer Hold Open Arm Only

Doromatic Door Closer Hold Open Arm. Includes everything is the image. Can be used to convert you regular non hold arm to a Hold Open Door Closer. Arm holds the door open when door is rotated open. The hold open postion is adjustable. This is the hold open arm for the SC61 Hw/PA, SC71 Hw/PA, and the SC81 Hw/PA.

Doromatic Part numbers:
SC60 - SC60-3049/PA , SC70 - SC70-3049/PA , SC80 - SC80-3049/PA

Dor-o-Matic Door Closer Regular Arm Only. This is the standard regular arm for the SC60, SC70, and SC80 Doromatic Door Closers

Doromatic part # SC60 - SC60-3077/PA, SC70 - SC70-3077/PA, SC80 - SC80-3077/PA

Choose Color and Doromatic Falcon Model Number (Function)

Falcon Spring-n-Stop Hold Open Arm, non handed, extra duty forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or abusive conditions.

Function is the Doromatic/Falcon Door Closer Model

The Dor-O-Matic 2090 Panic Device has been around since the early 1970's.   Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device.  The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required.  The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.

Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.

Replacement parts are also available

Effective December 20, 2024 Falcon Doromatic has discontinued this exit device.  They are currently working on retro-fit plates to make transitioning to 1790EO more easily.

The Doromatic 1590 is our heaviest device and offers a clean appearance with pushpad styling and a variety of practical features. The Doromatic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Replacement parts are also available

Shipped with all screws and strikes.

Effective December 20, 2024 the EL1590 has been discontinued.  Falcon Doromatic is working on retro-fit plates to work with the MEL1690.

Dor-o-Matic/Falcon EL1590 Panic Device with Electric Latch Retraction

The Dor-o-matic 1590 is our heaviest device and offers a clean appearance with push pad styling and a variety of practical features. The Dor-o-matic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Requires a Power Supply

Replacement parts are also available

Shipped with all screws and strikes.

The Falcon Doromatic Latch Screw PB17 is also known as the SCREW.1029 and the GPB17.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

Can be used with all Doromatic devices. Comes complete with mounting studs (G199002S)
9-1/4" center to center
2-7/8" projection
1-3/4" clearance

Dor-o-Matic lever arm spring. This spring pulls the cross bar back to the closed postion. The tension spring measures 1-1/4" long by 1/4" diameter.

Doromatic part # SPRING.103

Dor-o-matic 1690 Lock Stile Screw

1/4-20 Phillips Head Screw, a liite less than 1/2" overall lenght.

Doromatic part # SCREW.1069 or PB114

Dor-o-Matic 1690 Repair Parts Breakdown

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.

Doromatic 2390 Lift Bracket

This cadium plated bracket attaches to the concealed vertical rods. When the push bar is depress, it raises and lowers the brackets and the rods. The bracket measures 2-7/8" long by 5/8" wide and has an overall projection of 3/4"

Falcon / Doromatic Part # BRKT.143

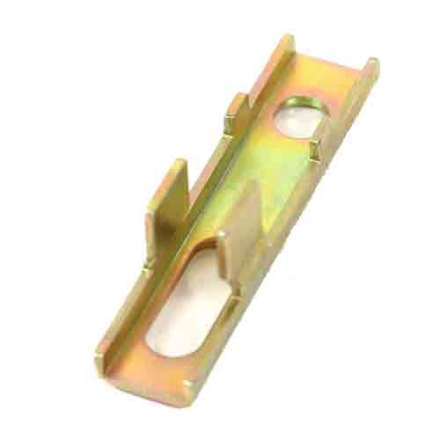

Dor-o-Matic Falcon 1690/1990 Traveler Assembly PB88

Doromatic 1990/1690 traveler assembly. The Traveler Assembly measures about 4-1/8" long, by 7/8" wide and 1/4" thick.  This bracket connects the rods to the exit device Doromatic Part # 4270100013 or PB88

Dor-o-Matic 1490 LHR/ 1590 RHR Push Label
1-7/16" x 4-7/8"

Doromatic part # 4270107323 or PB213 Black-No longer available
Doromatic part # 4270107322 or PB215 Gold

Discontinued December 2024

Doromatic 2390 Moving Pushbar End Cap

Doromatic 2390 Moving Pushbar End Cap is the piece that fits on the end of the pushbar. The Endcap is 3-3/8" high by 1/4" thick, with an 1-7/8" projection. The Pushbar End Cap is constructed of die cast metal that is painted black.

Doromatic / Falcon Part # PB342 or ECAP.143

The Dor-O-Matic STK170 are the strikes used on their RM170.  The are sold as a kit and include both plates, enough for one mullion.  They 2-7/8 inches tall by 1-3/4 inches wide and 1 inch thick.

The Panic Hex Key 7/32" is used on Dor-O-Matic Falcon and Sargent Panic Hardware to name a few.  The key measures 7/32" hex by 3-1/4" long.   Also known as a Hex Key, Dog Key, Allen Key or Dogging Key.

Dor-o-Matic 1690 Hex Socket Set Screw-PB317

1/4-20 x 3/8"

Doromatic part # SCREW.1067 or PB317

Dor-o-Matic 1690 Repair Parts Breakdown

The Dor-o-Matic 1690/1990 Retractor PB35 has been used since the 1970's.  The manufacture has changed names in the last 5 years and now goes by Falcon Panic Hardware. This piece is used the 990, 1690 and 1990 devices.  The pinion rides inside this bracket to raise and lower the internal rods. Parts used with the retractor are the Pinion (G199005), Traveller (G199028) and the Pinion Bushing (G199046). Retractor measures 1-7/8" long by 7/8" wide by 1/4" thick.

Doromatic part # PB35 or RETRACT.101

The Doromatic 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The Doromatic 1790 may also be used to retrofit a Doromatic 2090 series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. If you wish to use a key cylinder on the exterior, you will need the 1790 NL/HB Cylinder Assembly, 179CA.

The Falcon / Dor-o-Matic Panic Device 2090 / 1790 Standard Strike is the strike shipped with all new Falcon 2090 and 1790 exit devices.  The strike measures 1-3/4" high, 1-3/4" deep and only comes in a Black Matte color.  This strike was known for a long time as the Dor-o-Matic SD36 Strike, but after changing there name to Falcon in about 2008, it is know known as the Falcon SD36 Strike.

Doromatic EL1490 Lift Bracket

As known as a Falcon EL1490 Lift Bracket. This bracket connects the exit device to the rods. The bracket measures 7-1/4" long by 1" wide.

Dor-o-Matic Falcon Part # PB57 or 4270107495

Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller Assy

Doromatic part # 4270902091 or PBX-2

1990 parts breakdown

Doromatic PB48 Strike Shim Package Of 10 Pieces

This Dor-o-Matic product is for the PB48 Top Strike. This is the shim that goes under the top strike. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. They are only sold in packages of 10.

Doromatic Part # SHIM.112

The Dor-O-Matic 2390 231CA Cylinder Kit converts your 2390 exit only to a Night Latch or Hold Back function key lock.  All the hardware is included in the package to convert your device, except for the Mortise Cylinder.  Housing measures 4-1/2" tall by 1-11/16" wide with a 1-1/8" projection.  We send the 231CA which includes the Schlage B502-191 Cam.   The 239CA is the same kit, but without the Schlage Cam.

Discontinued item, we only have a few left in Dark Bronze.
