Kickdown Door Stop / Holder Rubber Shoe

Rubber Shoe for old style GJL444/555 and old style style GJ44's

1" base diameter
13/16" over all height
5/8" outside thread diameter

Floor Door Stop Dome 1-3/8" FS438

We ship the H.B. Ives FS438 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1-3/8" and a base height of 9/16".

The Ives Wall Door Stop / Holder WS45 was introduced about 50 years ago as the Glynn-Johnson W45A or GJW45A.  When they were purchased by H.B. Ives, it became the WS45.  They are constructed of cast Brass or Bronze and then plated to the desired finish.  This door stop is unique because the wall does not have to be parallel to the door for it to latch and hold the door open.  Spring loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position.  A heavy rubber pad cushions the shock and absorbs the sound.  With unit mounted on door and the strike on wall, vertical adjustment is available on body.  The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date.  WS45 strike is furnished with wood screws for drywall mounting.

4" Kickdown Door Holder FS455

The H.B. Ives FS455 is what people think about when they say Kick Down Door Stop.  This design has been around for almost 50 years and is try and true.   Durable and ascetically pleasing to look at.  This door holder features a simple hold and release, activated with a touch of the foot.  They are constructed of cast brass or aluminum depending on the finish that you are looking for.  The rubber tip is a non-marring and is corrugated on the bottom so it will not slide on the floor, and is easily replaceable, look under related products for the replacement shoe.  This holder is for door to floor clearances of less than 2".  This is an ideal door holder for the home, office, church or school.

Made by H.B. Ives



Floor Dome Door Stop 1" Height FS436

We ship the H.B. Ives FS436 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1" and a base height of 3/16".





The Ives Wall Door Stop WS65 is one of the most economical door stops we sell that is still commercial quality.  They are constructed of burnished cast aluminum.  The WS65 has a base diameter of 1-5/8" and a 3-3/4" projection. The rubber tip is replaceable.   This stop comes with the mounting screws.

Floor Door Stop-Security  FS18 is designed for areas of high vandalism.   The molded rubber is flame resistant and mounted to a 5/8" threaded mounting shaft.  Once the 7/8" diameter hole is drilled to a depth of 2-1/2" it can be grouted in concrete and leaves no exposed fasteners.  The recommended grout is Thorogrip.  They are ideal for jail or security cell areas.  There are two versions of this door stop one projects 1-1/2" (FS18S) out of the floor and the other 3" (FS18L).

5" Kickdown Door Holder FS555

The H.B. Ives FS555 Kick Down Door Holder has been a staple in schools for many years due to its heavy duty construction and inexpensive price.  It is constructed of durable cast iron, which has great strength characteristics.  The shoe is made of a non-marring rubber, which is replaceable.  The shoe is also held in place with a screw, which makes it a great option in schools and area of high vandalism.  This holder will work on door to floor clearances of 3" or less.  The hole spacing is 7/8" x 1-9/16".

Made by H.B. Ives



Replacement Rubber Door Stop Tip

Grey rubber door stop tip.

For use on metal frames featuring
pneumatic design that, once installed,
forms an air pocket to absorb sound and
reduce noise of door closing.

Diameter: 1/2"
Thickness: 1/8"

The Lock Guard with Security Pin is ideal to cover the latchbolt area of the door, lock and frame, with the added protection of a security pin to prevent separation of the door and door frame.  The plate is through bolted with carriage bolts and nuts, which are included with the guard.  The plate is constructed of 13 gauge stainless steel.  The plate measures 3" wide and 11-1/2" high, with a center to center on the mounting bolts of 10-1/2".

Ives Part Number LG1-US32D

Gravity Door Coordinator Nylon Wheel and Screw

Nylon wheel measures 7/8" outside diameter by 3/8" inside diameter by 1/4" thick. Screw measures 5/8" overall lenth by 3/8" shaft diamter by 1/4-26 thread with a 1/2" hex head.

Ives part # CORPART.1024

The Ives WS402CVX Wall Door Stop is our heaviest duty wall stop of this design.  They are constructed of a heavy duty cast brass base that is then plated to your desired finish.   The wall stop is 2-1/2" in diameter and has a 1" projection.  It features a special retainer cup that makes the rubber tamper resistant.  This stop ships with screw and drywall anchor.

The Ives WS401CCV Wall Door Stop is our heaviest duty wall stop of this design.  They are constructed of a heavy duty cast brass base that is then plated to your desired finish.   The wall stop is 2-1/2" in diameter and has a 1" projection.  It features a special retainer cup that makes the rubber tamper resistant.  This stop ships with screw and drywall anchor.

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

The Ives Wall Bumper Stop WS407-CVX our economically price convex wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

The Ives 112HD Continuous Full Mortise Hinge Geared Hinge measures 83" long and is constructed of extruded aluminum.  This hinge is non handed, and will work on doors up to 48" wide and 450 pounds.  You can easily cut this hinge in the field if your door is less than 83" high.

The Ives Wall Bumper Stop WS407-CCV our economically price concave wall bumper.  The metal ring is a wrought stainless steel, otherwise known as stamping.  It features a concealed tamper-proof mounting, and is shipped pre-assembled to the back plate is reduce installation time.   Installation is easy, just insert the screw driver through the pin hole in the rubber and tighten.  The bumper is 2-1/2" in diameter and projects out 1".

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

The Ives 157XY Continuous Full Surface Geared Hinge is an ideal solution for the replacement or worn or broken storefront door pivots, which we run across quite often. I our opinion this is the best solution if you can not find a compatable replacement pivot. The geared hinge will not allow the door to twist, which makes your door more sturdy in the frame. This hinge measures 83" long and is 3-7/16" wide included the cover which hides the screw mounting. A patented easy to install, heavy duty hinge which offers lateral and vertical adjustablility whle the door is still hanging. The hinge is non handed, will mount on a narrow frame, can be cut down in the field and will work on doors up to 550 pounds. 12-24 x 1/2" steel self drilling and tapping screws are included.

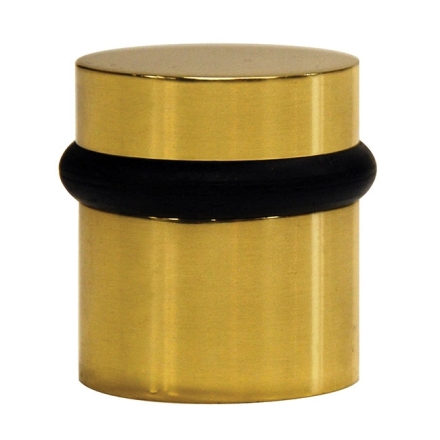

The Ives Decorative Floor Stop FS410 is constructed of cast brass.   It measures 1-1/2" high with a 1-1/4" diameter.  Manufacture part FS410 x Finish.

Shown in Brass

The Replacement Rubber Shoe For GJ1153M or Ives FS1153. Constructed of rubber.  Ives part # FSPART.1060

The Ives Roller Bumper Offset RB470 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 5" and the base has a 1-11/16" x 2-1/4".   The device was just like the Glynn-Johnson RB3 or GJRB3.

The Ives Roller Bumper Straight Arm 6" RB472 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 6" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB6 or GJRB6.

The Ives Universal Dome Floor Stop FS439 is constructed of cast zinc or stainless steel, depending on the finish.   The stop measures 1-1/2" high, with a base height of 1/4" and base diameter of 1-7/8".   The pad has a height of 1-1/8" from the floor.

Ives Part Number FS439

Ives Replacement Rubber Shoe 09-316

Used as a replacement shoe for the FS444, FS446, WS443, WS445,GJF26, GJW27, RB444HD, and RB443
The rubber shoe measures 7/8" diameter x 1-1/2" long

Ives part # 09-316

The Ives Roller Bumper Straight Arm 4" RB471 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 4-1/2" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB4 or GJRB4.

Ives RLPART.1045 RL32 Nylon Roller

This replacement Nylon Roller and Rivet Package is for the Ives RL32 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 15/16" long and is threaded on one side.

Ives Part # RLPART.1045

Ives RLPART.1025 Roller and Rivet for RL30/RL1152

This replacement Nylon Roller and Rivet Package is for the Ives RL30 and RL1152 Roller Latches.  The Roller measures 3/4" high by 5/8" diameter.  The Rivet measures 1-1/16" long and is threaded on one side.

Ives Part # RLPART.1025

The Ives Surface Bolt 8" SB453 has a 1-3/16" throw.  The bar has a cross section measurement of 3/4" wide by 1/4" thick.  It features a strong tension springs to prevent the bolt from creeping.  The bolt is shipped with all of the fasteners and a universal top and a standard mortise strike.  It is constructed of heavy duty steel that is then cadmium plated.

Ives part # SB453-8-TB-2C
