Sargent Exit Device 80 Series Plastic End Cap And Bracket

includes the end cap, bracket and mounting screws. This plastic end cap always breaks. You might want to consider trying the new impact resistant end cap shown in the related products, on the right hand margin of the page.

Used on the Sargent 80 Series Exit Devices

Part #'s 68-0561, 68-0511 and 97-0052

Sargent Panic 97-0008 End Plug

Sargent 97-0008 End Plug and 01-001 End Plug Screw.  Fits the 90 series cross bar panic devices.

Sargent Exit Device 80 Series Metal End Cap And Bracket

Use this end cap to replace all older versions and plastic end caps. It is much stronger then the orginals, more impact resistant.

sargent part # 565

Sargent 3828 Series Exit Device

The 3828 is a rugged exit device in a rim design. The 3828 Non Configured Rim Exit Device has 7 functions, 4 available trims and is easy to mix and match the device and trim. Aluminum finish only.

Sargent Exit Device 80 Series Bracket

Used on to hold exit device on door, plastic end cap mounts to it.

Sargent part # 68-0511

Sargent Exit Device 80 Series Plastic End Cap

This part is the weak link in this exit device. When the end cap falls off the Dogging Cover Plate falls out also! The end cap is 1-1/8" wide by 2-7/16" tall and projects out 1-7/8".

Sargent Part # 68-0561

Sargent Exit Device 90 Series Mouse Trap Spring

Used on the Sargent 9898 Rim Device on the opposite side of the case as the latch bolt.  The plate measure 1-3/16" by 1-1/2"

Sargent part # 98-2159

The Sargent Exit Device 20/30/60 End Cap And Bracket is a part we put together here for your convenience.  Sargent only sells these components separately.  Usually only the cap goes missing, but every once and while the bracket goes missing also.  The package is used on the all of the 20, 30 and obsolete 60 series devices.

Sargent Part # 68-0434, 68-2141, and 97-0052

Sargent 80 Series Lever Trim

Sargent 80 Series Lexan Touch Pad Kit

Sargent 80 series Lexan Touch Pad Kit replaces old and or broken touch pad inserts. On the Sargent part break downs this would be Touch Bar part number 68-0607 and Base 68-0606. The base is 13-1/2" long with 3 mounting holes 4" apart on center.

Sargent Part # 809 KIT

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

For Doors Wood or metal. 1-3/4"(44mm) and 2-1/4" (57mm) thick
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Non-handed

• For 1-3/4" (44mm) doors standard
• Through-bolted with 3 mortise nuts
• Pulls project 1-1/2" (38mm) from door face
• GTB Design trim will cover a 161 cutout

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty

Sargent 90 Lever Arm Spring

Used on the 9800 series Sargent Exit Devices. 1-3/4" LONG by 9/16" DIAMETER

Sargent Part # 97-0012

Sargent Latch Bolt Spring.

Used to put tension on the latch bolt of the 20, 30, 60, and 80 Series Sargent exit devices

Sargent Part # 98-0028

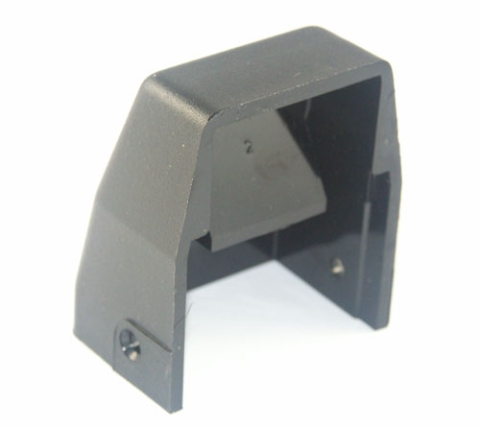

The Sargent 20/30/60  End Cap Bracket is used with the larger end cap.  This end cap has been manufactured for the last 40 years and started its life on the obsolete 60 Series.  The bracket holds the hinge side of the exit device on the door, and the G20300C fits over the top of it.

Sargent part #68-2141

The Sargent 20/30/60/80 Connecting Arm Spring is the spring that pushes the touch pad back out after you push it in.   It is used on the 20, 30, 60 and 80 Series Panic Hardware.

Sargent part # 68-0236

The Sargent 649 Surface Strike is used on the 20, 30, 60 and 90 Series Rim Panic Hardware.  The Strike measures 1-5/32" x 3-11/16"  with a 3/4" projection.   Strike features a black coated epoxy finish.

Sargent Part #649

The Sargent 624 Bottom Surface Strike is used on the 20, 30, 60, 80 and 90 Series Surface Vertical Rod Panic Hardware.  The Strike is mounted on the floor and the bottom latch locks on to it.   Strike measures 9/16" x 2-1/2" with a 3/8" projection.   Strike features a black coated epoxy.

Sargent Part #624

Sargent 60/80 Push Bar Pin Retaining Clip

used on Sargent 60 and 80 series to retain the push bar and channel axles. Use with the 68-0229 and 68-0230.

Sargent part # 01-0098

The Sargent 655 Bottom Surface Strike is for use the 20, 30, 80 and 90 Series Surface Vertical Rod Panic Hardware.  The Strike measures 1-13/16" x 2-3/4" x 3/32" thick.

Sargent Part #655

Simplicity
• Engineered with minimum components and maintenance-free
• Modular design allows for phased component installation. Chassis assembly can be mounted separately to secure the door during construction
• Retrofits to all applications
• One chassis design to accept all available functions/trims
Durability
• Reinforced cast (ZA) alloy chassis – exceptional strength and durability. Withstands 2X more static load forces compared to a stamped steel chassis
• Endures over 4 times the ANSI/BHMA A156.3 2001 Grade 1 cycle testing standard
• Non-handed rim; reversible vertical rod
• Solid stainless steel latch. Meets UL panic test requirements without roller strikes which compromise strength and durability
• Three year warranty

Sargent Exit Device 8800 Chassis Assembly

Chassis for devices after 2/5/2001. Used on the 8804, 8806, 8810, 8813, 8815, 8840, 8843, 8844, 8846, and 8888 Sargent Exit Hardware Devices.

Sargent Part # 68-4261

Replacement spindle for the 8100 and 8200 old style series mortise locks , January 1990 to current.

Includes lever bushings, roll pin and set screws

The Sargent 20/30/60/80 Dogging Kit 68-2596 is used on the Sargent 20, Sargent 30, Sargent 60, and Sargent 80 Series Panic Hardware. This dogging assembly kit has been around since the 1980's.  We only sell the dogging assembly parts as a complete set.

Sargent part # 68-2596

The Sargent 20/60 Plastic End Cap Only 68-0434 will also work on the 30 Series Panic Hardware.   The cap has been manufactured for the last 40 years and is made of high impact plastic.  The end cap measures 1-5/8" wide by 2-3/8" tall and projects out 2-3/4".

Sargent Part # 68-0434

Sargent inside/outside spindle

8100 Series rec'g prior to 1/1/1990

includes lever bushings, roll pin and set screws

Sargent part # 578-2, also known as the 81-2946

Sargent 97-2434 Old Style 8700 Top Latch

The Sargent 97-2434 Old Style Top Latch was used on the 8706, 8710, 8713, 8715, 8728, 8740, 8743, 8746,  8762, 8763, 8773, and 8774 Series Surface Vertical Rod Devices before November 11, 2002.  We sometimes fine the casting number of 97-0317 stamped on the back of this latch.  This Top Chassis has 3 mounting holes.

Sargent Part # 97-2434

The Sargent 646 Surface Strike is used on the 20, 30 and 80 Series Surface Vertical Rod Panic Hardware and Fire Rated Hardware.  It is used as a strike for the top latch. The strike measures 1-5/32" x 3-11/16"  with a 3/4" projection.   Strike features a black coated epoxy finish.

Sargent Part #646

The Sargent Door Closer 1331  is a standard template closer with the 3/4” x 12” hole spacing.  This closer is a great replacement for the Norton 8000 Series or Yale 3000 Series Door Closers.  The closer is constructed of a cast aluminum body and has a heat treated steel pinion and rack.  The 1331 has the ability to be mounted on the push, pull or top jamb, and is non handed.  We stock the aluminum finish, but also have the dark bronze finish, it just might take an extra day or so.  We ship the 1331-JUO.

Sargent Door Closer Covers

Replacement Sargent Door Closer Covers, made of impact resistance plastic.  Covers are available for the 281, 350, and 1430 Door Closers.

Sargent 60/80 Push Bar Pins-Long Pin

Also known as the channel axle or pin. This is the pin you see on the exit device channel, the wider of the two pins.

2-3/16" LONG

Sargent part # 68-0230
