Von Duprin 6114 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6114 has a 3/4” latch bolt throw, 7” face plate length, 1-7/8” width, and projects1-9/16”.  The lock retrofits the Folger Adams FD 310-5.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Von Duprin 9927 Bottom Latch 050090 replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050401. Mounting screws and bracket are included.

Von Duprin Part # 050090

The Von Duprin 050335 1654/4954 Top Mullion Fitting and Cover are the replacement top fittings for the 1654 and 4954 removable mullions.

The Von Duprin 55 Hinge Case Spring 090052 is the spring in the inactive case.  This spring does all of the lifting of the cross bar, and is used on the 55 Rim, 5547 Concealed Vertical Rod and 5575 Mortise Device.  It measures 1-5/8" long by 5/8" diameter.

Von Duprin part # 090052

The Von Duprin 22 Rim Center Case Cover 968603 is for use on the 22 rim devices.  The cover comes with mounting screws and is available in aluminum SP-28 or dark brown SP-313.

Von Duprin part # 968603 SP28 or SP313

The Von Duprin 2227 Center Case Cover 968888 comes in an Aluminum SP-28 or Dark Brown SP-313 color.  This piece is for used on the 2227 Surface Vertical Rod Panic Hardware.  Package also included mounting screws.

Von Duprin Part # 968888

Von Duprin Exit Device 88 Axle Package

Von Duprin 88 Axle Package

New style axle snaps together, and replaces the old style which were screwed together with allen wrenches. This style of axle has been around since about 1990. The piece on the right is only used for taking the axle apart.

Von Duprin Part # 090006 or 090082

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

The Von Duprin Tail Piece Guide Lead Kit Package Of 10 - 050156 is used to guide rim cylinder tail piece into the back of the Von Duprin 22, 33A, 98, and 99 exit devices.  We sell these in bags of 10 pieces.

Slot is 5/16" x 3/16" x 1" long
Von Duprin Part # 050156

The Von Duprin 2227 Bottom Vertical Rod 109362 has a length of 33-1/4" to 33-1/2" that is set at the factory.  All the bottom rods are the same length because of ADA standards. The top rods are field adjustable.

Von Duprin part # 109362

The Von Duprin 88 and 55 Wedge Tite Screw 090081 is used on the 55 and 88 panic hardware.  This screw applies pressure to the wedge which then expands the wedge ring to key the Von Duprin 88 and 55's crossbars tite.  The screw is a 5/16-18 x 5/8 hollow set point.

Von Duprin Part # 090081

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Von Duprin Panic Device 210DT Trim is part of there economy series trims.  This trim is just a pull, but will line up with the chassis mounting holes of the 22 and 2227 devices.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

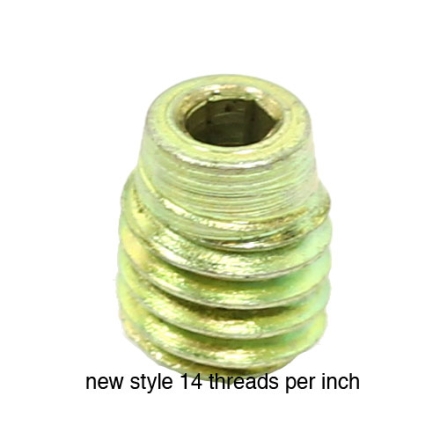

The Von Duprin 55 Dog Screw-090053 is the newer version, meaning less then 25 years old.  It measures 3/8" diameter by 1/2" long with 14 threads per inch.  They did have an old style that was available up to a few years ago that had 15 threads per inch.  If you have any old style I would recommend the D100 Panic Bar Retainer.

Von Duprin part # 090053

The Von Duprin 050400 Top Latch is used on the 2227, 3327A, 3427A, 9827 and 9927 exit devices. It is used the Fire-Rated along with the standard Panic Devices.  The 050400 is sold without the the Mounting Bracket, if you need the Mounting Bracket you can order the 050546, or order the G99VR10 (050091) which will come with the Bracket. This latch is for use on devices shipped after October 1998. This is usually the problem if your bottom rod is dragging on the floor. Includes screws.

Von Duprin Part # 050400

Von Duprin 6112 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6112 has a 3/4” latch bolt throw, 9” face plate length, 1-5/8” width, and an 1-3/4” backbone depth.  The lock retrofits the Folger Adams FA 310-4.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Von Duprin Strike 299F is used on the 22, 88, 98, and 99 Fire Rated Rim Devices (no hex or cylinder dogging). The 299F strike measures 1-1/4" wide by 2-7/8" high with a slotted hole spacing of 2-1/8". The roller projects out 13/16". The non fire rated version would be the Von Duprin Strike 299.  Ships with shim and mounting screws.

Von Duprin Part # 299F

The Von Duprin Panic Device 210K  Knob Trim is for use on the 22 Rim and 2227 Surface Vertical Rod devices.  Key in knob can lock and unlock the knob.  Since the enforcement of local ADA standards, this knob is probably at the end of this life, no one seems to want these anymore.  The mounting plate measures 3" wide by 4-25/32", and is 3-32" thick.  We do have parts on this Knob, but at this point they are not on the website.

This Von Duprin Panic Device 7500 Mortise Body Only is used on the Von Durprin 8875, and Von Duprin 98-9975 panic hardware. The body measures 5-7/8" high by 4-1/2" deep and 1" thick. This is the body that has been used since about 1977.

Call or email for pricing on the SS7500, 7500-IN, and E7500 Mortise Bodies and replacement parts for the Lock.

We ship the 7500 in US32D, brushed stainless steel.

Von Duprin 6111 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices. The model 6111 retrofits model number VD 3031, and measures 1-5/8” wide, 6” high and has a backbox depth of 1-3/4”.    Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Von Duprin Strike 1609 strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.   This Strike is not rated for Fire Doors, which are usually interior corridor doors.

Von Duprin Part # US19-Black finish

The Von Duprin Panic Device 230L Lever Trim will work on the 22 and 2227 series exit devices.  In 2008 this lever was redesigned and went from a key in the lever to the new style which has the key above the lever.  The plate measures 3" wide by 6-3/8" high and is 15/16" thick.  This lever only comes in sprayed aluminum or dark bronze.  We also have replacement parts for this particular trim piece in stock, email  us under the contact tab at the top of the page.

Cylinder not included

Installation Instructions

The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version.   The shorter versions will not have enough reach to get all the way into the shaft.  This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time.  To remove the shaft, just pull it straight out with a part of channel locks.   We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.

The Von Duprin 9927 Top Latch 050091 used on all the Von Duprin 9827 and 9927's. Replaces and updates all 9827 and 9927 bottom latches to the new style, if your device was installed before October 1998. If your device is newer then October 1998, then use the G050400.  This is usually the problem if your bottom rod is dragging on the floor. Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.
