The Von Duprin Panic Device 55 Left Hand Arm 050112 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050112

The Von Duprin 88 Lever Arm Left Hand 050439 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Von Duprin Panic Device 55 Right Hand Arm 050136 includes the wedge, wedge ring, wedge tite screw and dog screw.

Von Duprin Part # 050136

The Von Duprin 88 Lever Arm Right Hand 050438 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

Von Duprin 373L 88 Lever Trim

The Von Duprin 55NL Cam is one of the handed parts in the housing, the other is the Arm.  If you need to change the hand of a housing, you just need to order the other hand Cam.

The Cam shown in the Picture is Right Hand

Von Duprin Part #'s 050355-Right Hand, 050356-Left Hand.

The Von Duprin 99 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 99 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

Von Duprin 9875/9975 mortise lock device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm). The Von Duprin 9875 device has a smooth mechanism case and the Von Duprin 9975 device has a grooved case. The mortise lock device is non-handed

Von Duprin 9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Von Duprin 9827 device has a smooth mechanism case and the Von Duprin 9927 device has a grooved case. The surface vertical rod device is non-handed.

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike.  The device is also non handed.

The Von Duprin 373L Lever Control Spring 090091 and 090092 are used on the 371, 373, 375 and 378 Lever Handles.  The spring is used to return the lever to the horizontal position.  Sold in packages of 4 springs.

Von Duprin Part #
090091 Left Hand Reverse
090092 Right Hand Reverse

The Von Duprin 55 End Case is the housing on the hinge side of the door.   The function of this housing is to lift the cross bar, and support the function of the Active Case.  If your housing is on the right side when standing inside looking out, then you would order the Right Hand Case.  The package includes the housing, springs and back plate, the arm is not included.  The current part number on this part is 050196 and 050197, the old part number is 111931 and 111932.

Other finishes are available upon request.

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

The Von Duprin 9927 Rod Guide Assembly 112063 works on all of the Von Duprin 98 and 9927's. The guide keeps the rods from bowing or getting bent by hand carts, or rowdy patrons.  Replaces the old style which had the cover and springs.

Von Duprin part # 112063

The Von Duprin 050053 5547 Top Rod Kit 6'8"-8' Door is for the 5547 Concealed Vertical Rod.  The kit include the rod, and latch for a door height of 6'8" to 8' tall.

Von Duprin Part # 050053
Old Von Duprin Part # 104759

Von Duprin 386DT Dummy Trim

This Von Duprin 386DT Dummy Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386DT Dummy Trim is non handed.

The Von Duprin Panic Device 996L Lever Trim has an escutcheon plate that measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". The key cylinder, not included, locks and unlocks the lever.  This lever handle is handed, but is field reversible. Key lock and unlocks lever.  We ship the 996L-R&V

Von Duprin 386NL Dummy Trim

This Von Duprin 386NL Night Latch Trim is just a pull handle. The bolt pattern of the trim plate lines up with the Von Duprin 33A on the inside so they are on cohesive unit. The base plate measures 7-15/16" by 1-5/8". The grip measures 8-1/2" by 4-5/16" with a 2-7/16" projection. This 386NL Night Latch Trim is handed. Uses a standard Rim Cylinder.

The Von Duprin 9927 Top Vertical Rod 110573 is the standard top rod for door heights up to 7'1".  The length of this rod is 35", less the fittings.  For larger doors you can order a Rod Extension Kit, which at this point we do not have online.  The rod is field adjustable if your doors are less then 7'1".  The Old Von Duprin part # is 110573, and the Newer Von Duprin part # is 050512.

The Von Duprin 2227 Panic Only surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8". For doors as high as 7'1", if your door is higher than 7'1", please call.  Ships with all mounting screws and the 299, 304L and 248L-4 Strike

The Von Duprin 22 Panic Only 22EO is part of the economy series.   Even though is it the least expensive Von Duprin, it is still a very heavy duty panic device.  It is for all types of single and double doors with mullion, for door stiles as narrow as 3-13/16”.   All 22 Series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, Grade 1.  The Von Duprin 22 ships with the 299 standard strike, dog key, and all of the needed mounting fasteners.  Even though it is the least expensive, they offer all the replacement parts, just like there other models.  We stock all of the replacement parts Von Duprin has to offer on the 22 and 2227 series.
We keep the 36” devices in stock in the SP28 Sprayed Aluminum and SP313 Sprayed Dark Brown in stock.
Von Duprin Part # 22EO

Von Duprin 050574 98/9947 Adjustable Top Rod

Von Duprin 98/9947 Adjustable Top Rod for 6'8" to 8'4" doors.  This rod is used on the 9847, 9847-F, 9947 and 9947-F

Von Dupin Part # 050574
Old Part #110375

The Von Duprin 4954 7' 6" Steel Mullion  is the standard mullion used on most double doors with the Von Duprin Exit Devices.  Mullions are easily removed by loosening bottom set screw and removing top fitting cover.  The steel mullions are 2" wide and 3" deep, with an 1/8" thickness construction.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

Von Duprin 33A Exit Device Only

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. 33A/35A fits door stiles as narrow as 1 3/4". Newly designed device has a one piece center case cover.

The Von Duprin Strike 1609 strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.   This Strike is not rated for Fire Doors, which are usually interior corridor doors.

Von Duprin Part # US19-Black finish

The Von Duprin 2227 Top Vertical Rod 109361 will work on all 2227's up to door heights of 7'1".  The actual length of the rod is 37-3/8", less the fittings.  If your door is taller you will need a rod extension.  Call 1-800-642-2403 for longer top rods or rod extensions.

Von Duprin part # 109361

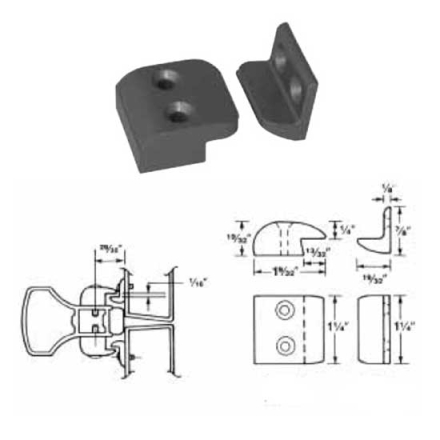

The Von Duprin Mullion Stabilizer Package are used with Von Duprin Mullions to stop any deflection on the mullion, which may cause the exit devices to release.  We run into issues where people are able to shake the door, and the door opens.   The package includes two sets of stabilizers and all the mounting screws.

The EPT-10 Von Duprin Power Transfer is a 10 wire, 24 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-10

The Von Duprin 970323 299 Strike Adjustor is the piece that secures the placement of the Strike to the door frame or mullion.

The Von Duprin 99 Push Bar Retrofit Kit-Pbkit updates your current version touch pad, to the newest version. Used on all the Von Duprin 33A, 35A, 99 and 98's.  For doors 30" to 36" order the 36" size. If your door is 36" to 48" order the 48" size.  The Push Bar is 18" wide on the 36" version.  Please allow 1 week for delivery.

Von Duprin part # PBKIT

The EPT-2 Von Duprin Power Transfer is a 2 wire, 18 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-2

The Von Duprin Strike 1409 Blade Stop is used on just about every Von Duprin Rim Device when door frame protection is needed.  We see this strike on many Narrow Stile door setups.  The strike measures 1-7/8" by 1-3/4" outside dimension. The strike has a projection of 1/2".  The strike is constructed die cast metal and the blade is made of stainless steel.

Von Duprin Part # 1409

The Von Duprin 106222 Racket Release Kit is used on the 3347, 3547, 9847 and 9947 Exit Devices.   The pin that projects from the block releases the top latch when the door closes, and locks the door shut.

Von Duprin Part # 106222

Von Duprin 8827 surface mounted vertical rod devicesfor all types of single and double
doors, UL listed for accident hazard installations.Covers stock hollow metal doors
with 86 or 161 cutouts and fits door stiles as narrow as 3½" (90mm).

• Fully reversible
• Five popular finishes
• Field sizeable
• Hex key dogging
• 5/8"(16mm)throw latch bolt

Ships with all mounting screws and the 299, 304L and 248L-4 Strikes.
