The Full Mortise Medium Duty Hinge are a standard butt hinge.  They are designed for medium weight doors with a high frequency of usage, but usually interior doors with a door closer.  The hinge offers two bearings, to provide easy rotation.  They are constructed of 10 gauge (.134”) steel that is then plated or paint primed.  We sell them in boxes of 3 hinges, and they ship with machine and wood screws.

Shown in brushed chrome

Door Pull 46

12" overall
8" centers
1-1/2" x 1-1/2" base
2-3/8" projection

Von Duprin 6114 24VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6114 has a 3/4” latch bolt throw, 7” face plate length, 1-7/8” width, and projects1-9/16”.  The lock retrofits the Folger Adams FD 310-5.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Sargent Door Closer 351 is the most heavy duty closer made by Sargent.  This closers meets ADA requirements, meets the Buy American Act, and is certified Grade 1, the heaviest rating possible.  The closer has the capability to be mounted on the push, pull or top jamb, and is non handed. It ships with arm, plastic cover, parallel arm bracket and all of the fasteners.  The hole spacing is 2-1/2" x 9"

Push Bar Adjustable 452

Finishes:
US26/625 polished chrome
US26D/626 brushed chrome
US3/605 polished brass
US4/606 brushed brass
US5/609 antique brass
US10/612 brushed bronze
US10B/613 dark bronze

Material: Brass
Material Size: 5/8" round tube adjustable to 36"
Base: 5/8" x 8-1/2"
Clearance: 1/2"
Projection: 1-1/8"

LCN Door Closer 4111 HCUSH Hold Open

Standard 4110 series closer shipped with HOLD OPEN CUSH N STOP arm, standard plastic cover, 4110-201 FIFTH SCREW SPACER and self reaming and tapping screws. Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Closer mounts parallel arm, specify right or left swinging door. 4111 cylinder meets ADA requirements. The cush hold open arm allows for a stop and hold open positions up to 110 degrees. "T" handle on arm will release door for closing, locking pin can be retracted for normal door closing operation.

We ship the 4111 HCUSH

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

International Door Closer T1 Push Pull Mounting Screw is used PH-4000, PB-2000, and PP-2000.  The screw measures 2-9/16 inches long, with a 3/8 inch diameter and 18 threads per inch.

The LCN Door Closer 4041XP-CUSH is the same cylinder as the 4040XP, but with a CUSH arm (4040XP-3077CNS).  This closer can only be mounted in the parallel arm configuration.  With this closer you get the XP heavy duty cylinder with the heavy duty CUSH arm.

We ship the 4041XP-CUSH

The International Door Closer Arm and Track 3010-JO for Offset Top Arm Assembly Mortised Type (9/16" Depth of Top Rail) installations. Track measures 15-1/4" long by 3/4" high by 15/16" wide.  For use with the 2000, 3000, and 5000 series concealed door closers.

The Ives Roller Bumper Straight Arm 4" RB471 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 4-1/2" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB4 or GJRB4.

Corbin Russwin 33L OEM Spindle 499F83-8

This Corbin Russwin Spindle is used on there Mortise Lock Lever Trim.

Corbin Russwin part # 499F83-8

The Corbin Russwin 188F03 Quik-Install Mounting Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is what you mount on the door or door frame and the door closer cylinder mounts to.  Corbin Russwin part # 188F03.

Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)
Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

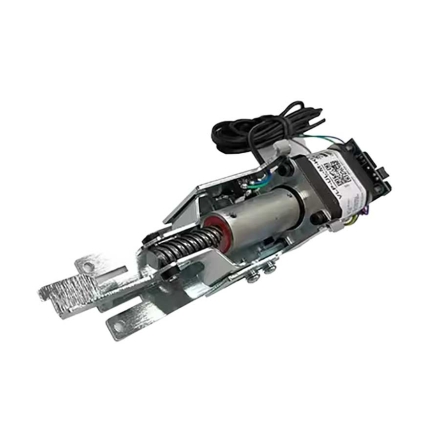

The Command Access MLRK1-VD22 is a motorized electric latch retraction with REX for the Von Duprin 22.  This motor is 24 to 28 volts and has a Standard : 900 mA (Avg Current Peak); 215 mA (Avg Current Hold). This unit requires 18 ga wire.  And ships with (1) Motor Mount with MM5; (2) 40002 - 8/32 x 1/4 inch Phillips Head Screw; (1) 50030 8/Lead with vd Connector; (1) 50944 Molex Pigtail; (1) 40144 Dogging Hole Cap; (1) 50991 Fire Rated Drilling Template; (1) Replacement Dogging Tail Piece.

The MLRK1-VD22 is a cost-effective and straightforward way to upgrade your Von Duprin 22 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

The Door Pull Handle 10 has 5-1/2" center to center screw spacing. The base is 3/4" diameter, the overall lenght is 6-1/4". The projection is 2" and the clearance is 1-1/2". Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

The Barracuda DSI is designed for In Swinging 36" Doors.  The user places the deive on the floor and slides the metal plates under the door.   Then pushing outward on the handles engages the plates to the exterior door jamb.   Then you simply install the locking pin to barracade the door.   The device is manufactured of heavy-duty steel that is then coated in a durable powder coat paint.   It will work on just about any door and comes in 6 different versions depending on your jamb width.   It is lightweight and comes with a storage mounting rack, along with all the the needed hardware for installation.

Barracuda Part Number
4-3/4"  DSI-2
5-3/4"  DSI-1
6-3/4"  DSI-3
7-3/4"  DSI-4
8-1/4"  DSI-5
8-3/4"  DIS-6

Standard duty brass 2-1/4" knob is pinned to swivel spindle for 1-3/4" door.
Outside spindle is 3/8" solid center and inside spindle is 9/32". Inside knob
threaded 3/8-20 with two case hardened set screws.

The WS11 door stop used to be under the Glynn-Johnson product line as the WB11 until they merged with H.B. Ives.  At that point they became the WS11.  This stop only is constructed of cast brass and then plated to your desired finish.  The stop has a 2" diameter base and projects from the wall 3-3/4".  This particular model is the same as the WS11x, except that it is designed for wood or drywall mounting and ships with wood screws and anchors.

The Door Pull Offset 1" Diameter PH-4000 is usually used on aluminum frame glass doors. This handle offers three different mounting options, one is surface mounted, where the handle is mounted over a mounting stud and then you tighten the set screw to hold the handle in place. The second method is thru bolted, the bolt goes all the way thru the door. And the third is back to were you have two handles mounted back to back.  This handle projects 3-1/4", has a 2-1/4" door clearance, comes in 9", 10" and 12" centers.  One of the most popular handles we sell.

Reinforcing Pivot Hinge - For use with 4-1/2" wide butt hinges

3/4" to center line of 4-1/2" hinge pin.
Pin uses large pin and bushing.
Used to dampen vibration and increase
strength to your full mortise butt hinges.
Constructed of heavy duty cold rolled steel.
Made of Zinc Plated Steel
Supports weights up to 300 lbs

Manufacturer part # B1923
Our part # DR1923 for Right Hand, DL1923 for Left Hand

These hinges are no longer handed, you can select right or left, but the hinges will work both ways.

Floor Mounted Door Stop 535

Cast Brass or Bronze construction
2-1/2" diameter base x 3-1/8" high
Fasteners included

Heavy duty knob set. Replaces the Corbin #1419 with #32 spindle.
Outside knob is pinned to spindle and inside knob is held by
two 5/16" case hardened set screws. Spindle is on 3/8" diameter
center on outside half and inside spindle is threaded 3/8-20

Application
Interior Doors
Weight to 250 lbs.*
Door Width up to 3'6"(1067mm)
Includes 180 Top Pivot
Handed

Handing diagram

For Doors Wood or metal. 1-3/4" (44 mm) thick standard.
minimum stile with trim and 3-1/2"
Mounting Supplied standard with wood and machine screws
Chassis Cover Cold drawn brass, bronze or stainless steel
Chassis Nonferrous alloy
Hand Handed. Specify RHRB or LHRB
Dogging Feature Allen-type dogging furnished standard.
Top and Bottom Bolts Brass, stainless steel

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520

The LCN Door Closer 1461 series closer ships with regular arm, a slim line plastic cover, and self reaming and tapping screws. Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors.  The narrow foot print allows this door closer to be mounted on the top jamb and narrow stile doors without a drop plate.

We ship the 1461 Rw/PA

The Corbin Russwin 704F66  ED4000/5000 Series End Cap is their newer impact resistant cover.   The package ships with the End Cap, Bracket and Mounting Screws.  The new bracket my not fit your existing holes, but this end cap is a substantial improvement over the previous versions.  Our image shows the Stainless Steel version.  This end cap is known as the 704F66 for Corbin Russwin, and ECK7 for the Yale version.

The Stainless Steel Engraved Push Plate is newer to our product line, but has been a very good seller.  This plate is constructed of 16 gauge (.050") thick stainless steel, and comes in two different sizes, the 3-1/2" x 15", and the 4" x 16".  The black engraved "PUSH" is 3/4" tall.  We can only get this is stainless steel at this time, and the mounting screws are included.

Floor Door Stop / Holder FS446

The Ives FS446 Door Stop and Holder is a modification of the FS444, which is the non holder version.   It is considered a manual type floor holder, because you have to manually latch the holder for it to hold the door open.  It is constructed of cast bronze or brass, and is no longer available in a cast aluminum.  It is designed for doors with up to 2-1/2" of undercut, meaning the distance between the finished floor and the bottom of the door. It measures 3-3/4" overall height with a 2-1/2" diameter, and the distance from the base to the center line of the rubber non-marring stop is 2-1/2".  This stop is packed with expansion shield and lead shield.

5" Kickdown Door Holder FS452

The H.B. Ives FS452 is another classic kick down door stop.  It features a simple hold and release, activated with a touch of the foot, and is constructed of cast bronze or brass depending on the finish you are ordering.  A simple stainless steel spring clip holds the stop in the up position.  The non-marring rubber shoe is replaceable, and they have a corrugated bottom to prevent sliding on the floor and a secure grip.  This stop is shipped with matching finish sheet metal screws.   The 5" model is for door to floor clearances of 3" or less.  The hole spacing is 19/32" by 1-47/64".

Ives Part # FS452

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

Swivel spindle, 4-3/4" long
Two 3/8" solid centers
20 tpi

Push Bar Adjustable 450

Finishes:
US3/605 Polished brass
US4/606 Brushed brass
US10B/613 Dark bronze
US26/625 polished chrome
US26D/626 brushed chrome

Material: Brass
Material Size: 5/8" Rd Tube Adjustable up to 36"
Clearance: 1/2"
Projection: 1-1/8"
Fasteners: Surface Mount only

Standard duty 2-1/4" knob is factory pinned to swivel spindle
to 1-3/4" door. Spindle has two 3/8" centers. Inside knob has
two case hardened set screws and spindle is threaded 3/8-18

The Von Duprin 4954 7' 6" Steel Mullion  is the standard mullion used on most double doors with the Von Duprin Exit Devices.  Mullions are easily removed by loosening bottom set screw and removing top fitting cover.  The steel mullions are 2" wide and 3" deep, with an 1/8" thickness construction.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

The LCN Door Closer 4011 is known as the Smoothee.  The door closer ships with regular arm, standard plastic cover, and self reaming and tapping screws.  This is considered an application specific closer, meaning you have to specify left and right swing door, and it can only be mounted as a regular armed closer.  A regular armed closer is a closer that is mounted on the pull side of the door.  The non sized clinder will work on doors from 30" to 60" interior doors, or 26" to 48" exterior doors, and can be adjusted to meet ADA specifications.  This door closer is ideal for areas of high traffic and abuse, like schools or any other areas of extreme use.  We ship the 4011 REG.
