LCN 8310-3857TW Actuator Package

Actuator package, 4-3/4" Square, includes:
2 8310-853T Wireless Wall Mount Actuator
2 8310-867S Surface Mount Boxes
2 8310-801  Weather Ring
2 8310-844 Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3857TW

The International FG-1200 Flushbolt Guide is the piece that fits into the top or bottom of the door and acts as a guide for the Flushbolt Rod.  The piece measures 1-3/8" x 1-1/2".  The square hole in the piece is a 1/2" square.  The manufacture part number is FG-1200.

• Ideally suited for use with rose or escutcheon 2-3/4" wide or less.
• For use with Type 86 Mortise and Type 161 Cylindrical Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the
opening between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel.

2-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2"

The Von Duprin 090039 is used in the push bar assembly to return the latch. It is known as the Base Plate Latch Return Spring or Latch Return Spring. It is used on the 22, 33A, 35A, 98 and 99 Devices. The spring is 2-1/4 inch long with a 3/8 inch diameter.

Reinforcing Pivot Hinge - For use with 4-1/2" wide butt hinges

3/4" to center line of 4-1/2" hinge pin.
Pin uses large pin and bushing.
Used to dampen vibration and increase
strength to your full mortise butt hinges.
Constructed of heavy duty cold rolled steel.
Made of Zinc Plated Steel
Supports weights up to 300 lbs

Manufacturer part # B1923
Our part # DR1923 for Right Hand, DL1923 for Left Hand

These hinges are no longer handed, you can select right or left, but the hinges will work both ways.

The LCN 159 Arm Screw is used on all of the LCN Closers to hold the arm on the Spindle of the Cylinder.  This screw goes by the number 4040-159, 4110-159, 4020-159, 1260-159, 1260-159, 4040-159 and 4040SE-159.   This is the screw that holds the arm on to the Door Closer Spindle (Shaft).  The screw has a 3/4" diameter head, 1/2" high with a 1/4" diameter shaft with 20 threads per inch (1/4-20 screw).

The LCN Door Closer 4040SE Track Assy 4040SE-3038 replaces all Sentronic tracks for the 3130SE, 4010SE, 4110SE and 4040SE Closers. Track includes the roller, 4040SE-3034 and new mounting screws. The replacement track measures 21-3/4" on center for the mounting screws, which may be different then the 3130SE, 4010SE, 4110SE and older 4040SE Tracks.  The replacement track is the only way we know of to replace the solenoid.  Specify voltage, and color when ordering.

LCN Part # 4040SE-3038

The Door Pull Offset #39 Handle is constructed of either solid aluminum, brass or stainless steel. The handle is 1" diameter tubing with a 2-3/4" offset and 2-3/4" projection. This is the most common type of handle you use today.  Just about every aluminum framed storefront door has a version of this handle. This handle is available in 8", 10", 12" and 18" centers on the mounting holes. The back to back mounting is for Metal or Wood Doors that are 1-3/4 thick. Included fastener is threaded into one of the handles, and the Stud End has fits into the inside handle and is held in place by a set screw on the handle.

Package includes two offset pull handles and fastening hardware. Shown in Polished Stainless Steel with 12 inch centers.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks.

Sargent 60/80 Push Bar Pins-Long Pin

Also known as the channel axle or pin. This is the pin you see on the exit device channel, the wider of the two pins.

2-3/16" LONG

Sargent part # 68-0230

LCN 4410ME Arm used on the 4410ME Sentronic Closer.   Non stock items, usually ships in 3-5 days from LCN out of Princeton, Il.

The Norton Door Closer 1601BF Barrier Free has been around for about 10 years. With the advent of aluminum framed glass doors, Norton was one of the first manufactures to come up with a narrow stile door closer. Because of this, it is still one of the most popular door closer models out there. It is a Grade 1 closer and has adjustable closing, latching, and back check speeds. The Barrier Free version just means you can turn the spring tension down to a size 1 spring, which will meet the ADA codes (less than 5 pounds of resistance). The model we ship also has adjustable spring tension to work on a wider range of doors. The hole spacing is 3/4” x 9-1/16”.

Norton 1600 Installation Instructions

The SEM7810-514 LCN Ball Pivot Connection Link Coupler Assembly Kit, is required for each door needing extension(s). Kit includes coupler link and ball pivot (alone serves as an 1-1/2" extenison). The threaded end is 3/8-16.

LCN Part # SEM7810-514

Von Duprin NL Drive Screw 090074

The 090074 NL Drive Screw is used on the Von Duprin 22, 98 and 99 Exit Devices to control the rotation of the key cylinder cam. This small set screw, screws into the back of the chassis assembly next to the receptor for the Rim Key Cylinder. The set screw measures 5/16" long by 3/16" diameter. Note: When the NL drive screw is left in back of device, the outside cylinder will function only as a Night Latch. The Night Latch function means the door can only be opened, but not dogged open with the key cylinder.

Von Duprin Part # 090074
Old Von Duprin Part # 970441

The Sargent Lever Return Spring 97-0425 is usually a green color, however we have seen them in blue and red.  The red spring has the same dimensions as the green, but the loop on the coil side of the spring was closed.  Sargent is using this spring as a replacement for all of those springs.  If you have a Sargent Panic Hardware, and the lever is sagging, or just hanging, this is most likely the problem.  The spring measures 2-1/8" long  by roughly 3/8" diameter.

Sargent part # 97-0425

The International Door Closer 44CI Adjustable Spring Power is one of there heaver duty closers.   It is designed to line up with the LCN 4040 hole spacing at more than half the price.  It features a rugged cast iron body with a forged steel arm.  It also uses all weather fluid, is non handed and is non sized, meaning you can adjust the door for any size door.  The door closer we are selling here come with a regular arm and parallel arm bracket, so the closer can be mounted on the left or right, push, pull or top jamp.  The closer has 4 adjustments, closing, latching, and back check valves, a long with a spring power adjustment.

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

For Doors Wood or metal. 1 3/4" (44.5mm) thick standard. 2 1/4"(57mm) thick on order.
4 1/8" (105mm) miminum stile
Mounting Supplied standard with wood and machine screws.
Chassis Cover Brass, bronze or stainless steel
Chassis Nonferrous alloy
Crossbar 1" brass, bronze and stainless steel tubing.
Hand Reversible
Dogging Standard Allen key dogging

The Norton Apollo Door Closer 7500 has been around for quite a long time, and was designed to replace the older 7700, which are still made. The beauty of the 7500 is that is can be mounted left or right, push, pull or top jamb, were as the 7700 you had to specify all those attributes, which made stocking them a head ache. This is a Grade 1 closer, and is extremely durable. If you are looking for a 7500BF, the barrier free version, the new 7500 is barrier free, and will do the trick. This closer has a 2-3/8" x 6-3/4" hole spacing.

Intermediate Hinge IP-1901 and IP-1902

Cast aluminum construction with steel bearings. The hinge measures 5" high by 2-1/2" wide. This hinge has a 3/4" offset. We find this hinge in the middle section of the door between the top and bottom hinges. Available in the Aluminum color and Dark Brown. See the dimensional information under more views.

Manufacture Part # IP-1901 and IP-1902
IP-1901 is for Left Hand Doors
IP-1902 is for Right Hand Doors

The Von Duprin 99 Rim Center Case Cover 050071 replaces your old 1 or 3 piece covers.  Included in the package is the cover and the mounting screws.

Von Duprin part # 050071

• Narrow design unit for use on rose or escutcheon 3-1/2" or less.
• For use with Type 86 Mortise and Type 161 Cylinder Locks
(ANSI 156.13 Series 1000 and ANSI 156.2 Series 4000).
• No exposed fasteners on face of unit.
• Unique design provides maximum security, virtually eliminating the opening
between door and frame at the latch point.
• Available in 13 Gauge Stainless Steel or 12 Gauge Steel

1-1/2" Wide x 9-1/2" High
Stud center to center: 8-1/2”

The SEM7830 LCN Electro Magnetic Door Holder features a die cast metal housing that is surface wall mounted. Tri-voltage design works with 12, 24 or 120 volts, with 35 lbs. of holding force. The magnet housing measures 2-13/16" wide by 4-5/8" high. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". The total projection of both pieces is 4-1/8". Available in an aluminum or dark bronze color.  Armature extensions are available, along with replacement covers, magnets, and armatures.

The Dor-o-Matic 1990/2090 Cross Bar CBAR is used on the 990, 1090, 1990 and 2090 Dor-o-Matic and Falcon panic hardware.  The bar is 41" and 48" long and is easily cut in the field with a chop or hack saw.  The bar is constructed of extruded aluminum and then anodized to the correct finish.  The slot where the screw threads in is not threaded, but the screws, sold separately, are thread forming screws. The 41" bars are in stock, the 48" bars have a 3 week lead time

The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.

Doromatic part # CBAR/  47285197 for the 41" bars, and 47286482 for the 48" bars.

Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts Breakdown

All PR80 Closers are UL listed and warranted for ten years. Parallel Arm Brackets and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. The closer is supplied with a standard plastic slim style cover.

The closer is sized for 2 to 5 spring tension and will work on doors 24" to 54" Wide and 33 to 264 Lbs. This closer has a hole spacing of 3/4 x 9-1/16 inches.

The Von Duprin 990DT Trim is known as a Dummy Trim.  This plate mounts on the exterior of the door, and the welded on mounting studs line up with the 99 device on the interior of the building.  If you have a different manufacture or a different Von Duprin series on the interior, it will not line up.  On the back of this plate we usually find the number 990 stamped on it.  The plate shown here is for the Rim and Surface Vertical Rod 99 and 98 devices.  If you have a Mortise or Concealed Vertical Rod, call us and we will order that model.  The plate measures 3" wide by 14-3/16" tall.  Order here for the 990DT-R&V.

Von Duprin 6113 24 VDC Electric Strike

Von Duprin 6100 Series electric strikes are designed for use with Rim devices.  The 6113 has a 3/4” latch bolt throw, 6” face plate length, 1-5/8” width, and an 1-15/16” backbone depth.  The lock retrofits the VD 3011 and VD 3021.  Other voltages and replacement parts are available.

FSE - Fail-secure.  Requires power to be applied to unlock the strike lip.  On loss of power, the strike lip is locked-Fire Rated

FS - Fail-safe.  Requires power to be applied to lock the strike lip.  On loss of power, the strike lip is unlocked.  Non Fire-Rated.

The Lock Guard with Security Pin is ideal to cover the latchbolt area of the door, lock and frame, with the added protection of a security pin to prevent separation of the door and door frame.  The plate is through bolted with carriage bolts and nuts, which are included with the guard.  The plate is constructed of 13 gauge stainless steel.  The plate measures 3" wide and 11-1/2" high, with a center to center on the mounting bolts of 10-1/2".

Ives Part Number LG1-US32D

Floor Door Stop / Holder 536

The Stop and Holder 536 is considered a manual door holder.   It is a manual door holder because you have to physically bend over and hook and unhook the holder.  This holder is constructed cast brass or cast bronze and then plated to your desired finish.  The stop measures 2-1/2" in diameter and 3-7/8" overall height, with a center line height of 2-1/2" from the base to the center of the rubber stop.  It ships with all of the fasteners.

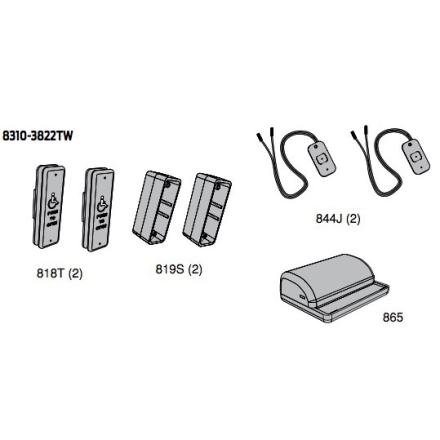

LCN 8310-3822TW Wireless Actuator Package

This package is recommended for interior use only!   Actuator package, 1-1/2" x 4-3/4", includes:
2 8310-818T Wireless Jamb Mount Actuator
2 8310-819S Surface Mount Boxes
2 8310-844J Jamb Mount Transmitter
1 8310-865 Receiver

LCN Part # 8310-3822TW

The Von Duprin Strike 1609 strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the Von Duprin 22/2227, 88/8827, 98/9827 and 99/9927 combinations. The strike base measures 1-1/16" wide by 3-1/4" high, the lip projects out 7/8". The three slots are 1-1/4" on center. This strike ships with the mounting screws.   This Strike is not rated for Fire Doors, which are usually interior corridor doors.

Von Duprin Part # US19-Black finish

LCN Sentronic Door Closer 4310ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a three prong plug, the white plug is a two prong plug.  Specify voltage, 24 or 120 volts.

LCN Part # 4310ME-3351

The 855 has been discontinued.  If you order it the 885 will be sent, it is the same door closer, but features back check.

The International Door Closer 855P Series is a common closer we see on a lot of storefront aluminum framed doors.  This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   The closer features two adjustment valves for closing and latching speeds.  The cylinder is constructed of precision cast aluminum.  If you have an exterior door I would recommend the 880 Series, which is the same door closer, but has a back check valve.  The back check valves will slow the door down if it is caught by a gust of wind.  It ships with a regular arm and parallel arm bracket.  This door closer is for use on doors up to 48” interior or 42” exterior doors.

3/4" x 9-1/16" mounting holes

Adams Rite New Style end cap for the 8700 and 8800.
The black cap measures 2-3/8" high x 1-1/2" wide x 1-1/4" projection. We some times find the number 25-0674-01 cast in the black plastic.

Adams Rite Part # 41-0901-03-IP

Hager 5300 Series Door Closer

Hager 5300 Series Grade 1 door closer is ideal for schools, hospitals, and other high abuse and high traffic environments. It is constructed of an aluminum alloy and provides smooth door control. The 5300 Series door closer is easy to install and maintain­­ keeping your building safe and secure.

The Hager 5300 Series Door Closer body has a hole spacing of 3/4" x 9-1/6".

The SEM-7800-825 Armature for LCN Electro Magnetic Door Holder is the door mounted piece for th LCN SEM7820-825 / SEM7830-825 / SEM7840-825 / SEM7870-825 series.  It features a metal die cast construction armature. The armature (door mount part) is 1-11/16" wide by 2-3/8" high with a 1-7/8" diameter. The armature projects out 1-5/8". Available in an aluminum or dark bronze color.  LCN Part # SEM7820-825, SEM7830-825, SEM7840-825, and SEM7870-825

Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.

Fits 36" to 48" doors.
Uses 9 volt battery
Ships with all mounting hardware and strike.
