The LCN Door Closer 1461 series closer ships with regular arm, a slim line plastic cover, and self reaming and tapping screws. Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”. Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors.  The narrow foot print allows this door closer to be mounted on the top jamb and narrow stile doors without a drop plate.

We ship the 1461 Rw/PA

The Corbin Russwin 704F66  ED4000/5000 Series End Cap is their newer impact resistant cover.   The package ships with the End Cap, Bracket and Mounting Screws.  The new bracket my not fit your existing holes, but this end cap is a substantial improvement over the previous versions.  Our image shows the Stainless Steel version.  This end cap is known as the 704F66 for Corbin Russwin, and ECK7 for the Yale version.

The Stainless Steel Engraved Push Plate is newer to our product line, but has been a very good seller.  This plate is constructed of 16 gauge (.050") thick stainless steel, and comes in two different sizes, the 3-1/2" x 15", and the 4" x 16".  The black engraved "PUSH" is 3/4" tall.  We can only get this is stainless steel at this time, and the mounting screws are included.

Floor Door Stop / Holder FS446

The Ives FS446 Door Stop and Holder is a modification of the FS444, which is the non holder version.   It is considered a manual type floor holder, because you have to manually latch the holder for it to hold the door open.  It is constructed of cast bronze or brass, and is no longer available in a cast aluminum.  It is designed for doors with up to 2-1/2" of undercut, meaning the distance between the finished floor and the bottom of the door. It measures 3-3/4" overall height with a 2-1/2" diameter, and the distance from the base to the center line of the rubber non-marring stop is 2-1/2".  This stop is packed with expansion shield and lead shield.

5" Kickdown Door Holder FS452

The H.B. Ives FS452 is another classic kick down door stop.  It features a simple hold and release, activated with a touch of the foot, and is constructed of cast bronze or brass depending on the finish you are ordering.  A simple stainless steel spring clip holds the stop in the up position.  The non-marring rubber shoe is replaceable, and they have a corrugated bottom to prevent sliding on the floor and a secure grip.  This stop is shipped with matching finish sheet metal screws.   The 5" model is for door to floor clearances of 3" or less.  The hole spacing is 19/32" by 1-47/64".

Ives Part # FS452

Sargent 1130 Door Closer

The Sargent 1130 door closer is a non handed universal door closer. It can be mounted on the left, right, push, pull or top jamb. The hole spacing on this door closer is 3/4" x 9-1/16". We ship the Sargent 1131-RU model.

Swivel spindle, 4-3/4" long
Two 3/8" solid centers
20 tpi

Push Bar Adjustable 450

Finishes:
US3/605 Polished brass
US4/606 Brushed brass
US10B/613 Dark bronze
US26/625 polished chrome
US26D/626 brushed chrome

Material: Brass
Material Size: 5/8" Rd Tube Adjustable up to 36"
Clearance: 1/2"
Projection: 1-1/8"
Fasteners: Surface Mount only

Standard duty 2-1/4" knob is factory pinned to swivel spindle
to 1-3/4" door. Spindle has two 3/8" centers. Inside knob has
two case hardened set screws and spindle is threaded 3/8-18

The Von Duprin 4954 7' 6" Steel Mullion  is the standard mullion used on most double doors with the Von Duprin Exit Devices.  Mullions are easily removed by loosening bottom set screw and removing top fitting cover.  The steel mullions are 2" wide and 3" deep, with an 1/8" thickness construction.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

The LCN Door Closer 4011 is known as the Smoothee.  The door closer ships with regular arm, standard plastic cover, and self reaming and tapping screws.  This is considered an application specific closer, meaning you have to specify left and right swing door, and it can only be mounted as a regular armed closer.  A regular armed closer is a closer that is mounted on the pull side of the door.  The non sized clinder will work on doors from 30" to 60" interior doors, or 26" to 48" exterior doors, and can be adjusted to meet ADA specifications.  This door closer is ideal for areas of high traffic and abuse, like schools or any other areas of extreme use.  We ship the 4011 REG.

Corbin Russwin Top Latch 650F55-8

The Corbin Russwin ED5400 / ED4400 Top Latch is used on the Non Fire Rated ED5400 and ED4400 Exit Devices.

Corbin Russwin Part # 650F55-8

The LCN Door Closer 4011FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull. Closer mounts hinge side, specify right or left swinging door. 4011 cylinder meets ADA requirements.

We ship the 4011 FL

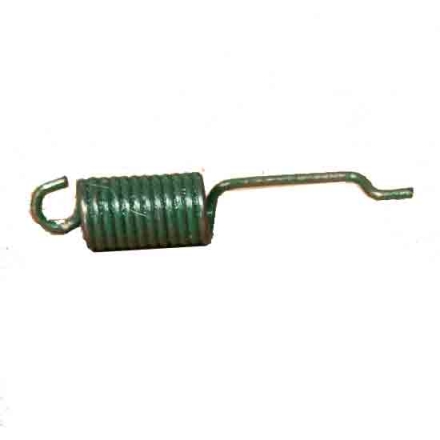

The Sargent Lever Return Spring 97-0425 is usually a green color, however we have seen them in blue and red.  The red spring has the same dimensions as the green, but the loop on the coil side of the spring was closed.  Sargent is using this spring as a replacement for all of those springs.  If you have a Sargent Panic Hardware, and the lever is sagging, or just hanging, this is most likely the problem.  The spring measures 2-1/8" long  by roughly 3/8" diameter.

Sargent part # 97-0425

The Ives Plunger Door Holder / Stop FS1154 has been around for about 50 years.  Before the 1990's is was known as the Glynn-Johnson 1154, and when they were merged in the H.B. Ives line, the part number was changed to FS1154.  This product is constructed of cast brass or bronze that is then plated to the desired finish.  Plunger and internal parts are plated steel and provide a 1-1/4" throw for all types of doors.  Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever.  The shoe is non-marring rubber that is securely fastened with a screw in flanged cup to prevent movement or loss, and when worn, shoes are easily replaced and are kept in stock as the GJ1154.  These are sometimes called pop-up or push down stops.  Ships with matching finish mounting screws.

The LCN Door Closer 4021 FL is shipped with fusible link arm, standard plastic cover, and self reaming and tapping screws. This closer is designed to hold open fire doors, when the fusible link melts, it releases the hold open arm, so the door will close.  Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”. Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”. Included arm has a fusible link that melts at 120 degrees, allowing to door to close. Door can be closed any time with a gentle pull.  Closer mounts top jamb (push side), specify right or left swinging door. 4021 cylinder meets ADA requirements.

Jack Nut 1/4-20

The Jack Nut is used on hollow metal doors to fasten door closers, door closer arms, exit devices and continuous hinges.

The International Door Closer Arm and Track 3020-VO is for offset top arm assemblies, with the track mortised in the top of the door.  This track and arm are for the 7/8" depth of top rail application.  Track measures 12-5/8" long by 1/2" high by 1-1/4" wide.  For use with the 2000, 3000 and 5000 series concealed closers.

Dorma 8616 Door Closer

The Dorma 8616 door closer series is a non-handed surface applied door closer with adjustable spring power and back check positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

Door closer certified for ANSI Grade 1.

we ship the Dorma Model # 8616-AF89P

3/4" x 12" hole spacing

Grade 1 exit device
Device is non handed
Standard widths are 30", 36", 42" or 48"
3-3/4" minimum stile width

Replacement parts are also available

The Detex DN Trim is built like their exit devices, extreme durable. Designed with a break-away lever to prevent permanent damage from vandalism or abuse. Escutcheon plate measures 1-7/8 by 8-1/4 inches, the plate is 7/8 inch thick. We ship the classroom function, key locks and unlocks the lever. The levers are field reversible.

The LCN Door Closer 4041XP-Hw/PA is the 4040XP, eXtra Protection closer with the 4040XP-3049 Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the friction hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, push, pull or top jamb mount.  The hold open point is adjustable by loosening or tightening the hold open nut on the arm.

Dorma 7414 Door Closer

The Dorma 7414 Series door closer features back check and adjustable spring sizing and is the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install. The 7414 Series offers a compact design and is available in a variety of sprayed finishes to complement any opening’s decor.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

LCN 4630 replacement arm, LCN part # 4630-3077T

Reinforcing Pivot Hinge 4" - for use with a 4" wide butt hinge

1/2" to center line of 4" hinge.
Used to strengthen and reduce vibration
to your current full mortise butt hinges.
Made of Zinc Plated Steel

These hinges are not longer handed. Please select hand when checking out, until our system is updated.

LCN Sentronic Door Closer 4410ME-3351 On/Off Switch Assy

Board measures 1-1/8" x 3".   Red plug is a 3 prong plug, white plug is a 2 prong plug.  Specify voltage, 24 or 120 volts

LCN Part # 4410ME-3351

The Door Pull Handle 15 features 7-1/2" centers on the mounting screws. With 2" diameter bases. The Grip has a 2-1/4" projection with a 1-5/8" clearance. Also known as a Door Handle or Door Grip. This handle ships with thru bolts and finish washers.

CG-20 Vinyl Corner Guard 2” x 2”

90 degree 2” x 2” vinyl corner guard with aluminum retainer.  Vinyl flex action absorbs impact, and is .085” thick, the aluminum retainer is .062 thick.  Each corner guard includes the end caps.  Available in 4, 8 and 9 foot lengths.  The CG-20 includes the top and bottom end caps.

Trim Protector Bar

A great product for applications were your door knobs and levers are getting damaged due to hand carts and other items hitting door trim. Mount this product above or below existing items on walls and doors to protect and sheild them from damage.

Material: Brass, Bronze, Stainless Steel
Material Size: 3/8" x 1-1/2"
Base: 1-3/4" x 3-1/2"
Projection: 3-1/4"

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

The reinforcing pivot hinge is a good way to solve door sag issues. And also be a preventative solutions for future isses with extra heavy or wide doors. The hinges comes in two sizes 4 or 4.5 inches, and two finishes, prime coat and satin chrome. The hinge uses a heavy duty ball-bearing to add extra life.  The base metal is steel.

The Anodized Aluminum Neoprene Door Shoe is an aluminum U channel to mount on the bottom of doors.  The channel is 1 inch deep with a 1/2 inch neoprene seal on the bottom.  Fits over the bottom of 1-3/4 inch thick doors.  Ships in 36 or 48 inch lengths and comes with #6 x 3/4 inch stainless steel screws.

The LCN Door Closer 4041XP-HCUSH is the 4040XP, eXtra Protection closer with the 4040XP-3049HCUSH Hold Open Arm.  You get the same performance of one of the most revered closers with the functionality of the CUSH hold open arm.   The cylinder features cast iron construction, forged steel arm, double heat treated steel pinion, non-handed, LCN® “Green Dial” spring force indicator, Peel-n-Stick templates, UL and cUL Listed, 3⁄4″ journal diameter pinion, full compliment bearing, and tested and certified under ANSI standard A156.4, Grade 1.  With this package you have the flexibility to mount the closer on a left, right, but it has to be mounted in the push side of the door is a parallel arm type application.

Von Duprin 050531 EL Dogging Rod 3'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 3' designates the model it is used on. The 3' model is used on doors 36" or under. The Rod measures roughly 11" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices

Von Duprin Part # 050531, Old Part # 110007

No longer manufactured

Standard 4040 LCN series closer shipped with regular arm, standard plastic cover, and self reaming and tapping screws.  Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”.  Closer mounts hinge side, top jamb, and parallel arm w/PA Shoe on either right or left swinging doors.  Closers to meet ADA requirements.

No longer made, the 4040XP will be shipped in its place.

The Von Duprin 22 Center Case 109012 has been around for almost 40 years.  This case will replace all of the non fire rated center cases, meaning all of the devices that have a hex key dogging assembly on the hinge side cover plate.

Von Duprin Part # 109012
