The LCN Door Closer Regular Arm 3077 ships with 95 percent of there door closers.   This is the standard regular.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.  The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077,  and  4040-3077.  If your model is not here, call us and we will quote you a price.

The International Door Closer 8730S is designed for narrow stiles. The minimum stile width is 2-19/32 inches. It will not work on a true narrow stile door witch is usually 1-3/4 inch. The 36 inch version is 33-15/32 inches and the 48 inch version is 44-3/4 inches. The device is rated Grade 1, which is the highest rating. Rods are 1/2 inch diameter tubular with rod guides. The exit ships will all screws and strikes need for instillation.

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

The Yale Door Closer 4400 has been around for quite a long time, and was designed to replace the older 400, which are still made. The beauty of the 4400 is that is can be mounted left or right, push, pull or top jamb, were as the 4200 you had to specify all those attributes, which made stocking them a head ache. This is a Grade 1 closer, and is extremely durable. If you are looking for a 4400BF, the barrier free version, the new 4400 is barrier free, and will do the trick. This closer has a 2-3/8" x 6-3/4" hole spacing.

The Von Duprin 050130 Fitting Set is for the 5654 / 5754 Mullions.  Set includes top and bottom fittings, all of the mounting screws.  The Fitting measures approximately 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8".

Von Duprin Part # 050130

The Door Push Plate 89 is drop forged plate that is .125" thick, and is made of Aluminum, Stainless Steel, Bronze or Brass, depending on the finish.  The plate measures 3-1/2" wide by 15-3/4" long with a 1" projection.  This plate is considered a combination push pull plate.    Package ships with matching mounting screws.

Finishes

The LCN Door Closer Cover is the standard plastic cover that ships with LCN Door Closers.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape cover on the door closer cylinder.  The part number is the Series Number followed by -72.   So, the part number would be 1460-72, 4010-72, 4020-742, 4030-72, 4040-72 and 4110-72.   We have access to all the covers, if yours is not here call us and we will quote you a price.

The Jackson Door Closer Center hung Arm - 20-400B is used with the 20-330 door closer.  This arm is for use with double acting, center hung doors.  The arm measures 10" long by a 1-1/2" wide and 1/2" thick.

Jackson Part # 20-400B

The Jackson 20330 Concealed Door Closer has been around since the late 1960's early 1970's.  They are used on aluminum framed storefront doors, that have a narrow stile (frame) around the glass.  The closer is tucked up in the header of the door frame.  Jackson has been a leader in this style of door closer for almost 50 years.   The closer is manufactured in the U.S.A. under strict ISO 9001 guidelines and is designed to give long lasting, maintenance-free performance. One basic closer mechanism allows for single or double acting, center-hung, or offset applications and is non-handed. The adjustable spring power makes this closer suitable for aluminum, wood or steel doors.

Mechanism only, Spindle Length is 1/2"
See Jackson arms for replacement arms.

The EPT-10 Von Duprin Power Transfer is a 10 wire, 24 gauge, means to transfer power from the door frame to the door.   The kit includes everything that is need to complete the installation.

Von Duprin Part # EPT-10

LCN 4810 Door Closer Pneumatically Operated

LCN 4820 Door Closer Pneumatically Operated

The Jackson Door Closer Center Hung Arm - 20-2010 is used with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide at the hub by 13/16" thick at the hub.

Jackson part # 20-2010

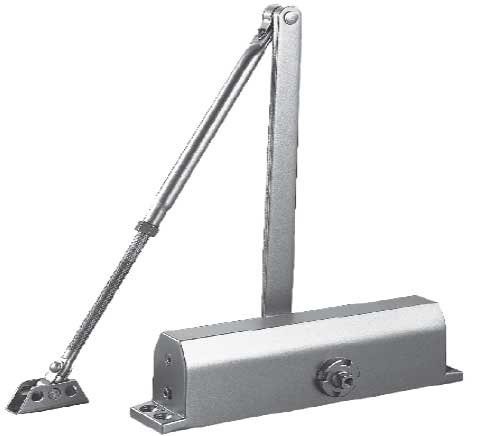

The International Door Closer 1803BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 42” interior or 36” exterior doors.

3/4" X 9-1/16" Hole Spacing

The International Door Closer 1805BC-P - Fixed Spring Closer is one of the heaviest duty closers in the International product line.   It offers a 10 year warranty, and is Grade 1 rated, which is the highest rating you can have.  The closer features three adjustment valves for closing,latching speeds and one for back check.  The cylinder is constructed of precision cast aluminum.   It ships with a regular arm and parallel arm bracket.   This is one of the last closers out there to still have sizing.  By sizing I mean each door closer has a spring size of different tension so the closer is selected depending on door size and wether it is interior or exterior.  These days we usually use this door closer as a replacement of existing doors.   This door closer is for use on doors up to 54” interior or 48” exterior doors.

3/4" X 9-1/16" Hole Spacing

The Norton Door Closer 8501 is sometimes called the Omni Door Closer.  This door closer features a cast aluminum body, is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  This closer is a non sized closer, meaning you adjust the spring tension to meet closing requirement for a ADA Barrier Free application all the way up to a 48” exterior door.  You cover might have 8501/8501BF 3501/3501BF, but the new version will cover the BF and non BF closers.  The difference between this closer and the 8301 is the size of the plastic cover.  The 8301 has a slim cover, and the 8501 has full cover.  The hole spacing on this door closer is 3/4” x 12”.

The LCN 1370 was a door closer made in the late 1990's to 2006 or so. The closer had a special mounting plate that made installation very quick. Many people have this door closer in use and now they are starting to fail. The LCN 1370-18QF Quick Fix Plate converts the mounting holes of the 1370 to a standard template closer, which is 3/4" x 9-1/16". By using this plate you will not have to redrill holes in your door. The plate measures 2 by 10-1/4 inches with tapped holes that measure 3/4 x 9-1/16 inch.

The Norton Door Closer Regular Arm is the standard arm that is shipped with the 9300, 1600, 8301, 8501 and 7500 door closers.  It will also work with the Yale 2300, 50, 3301, 3501 and 4400 series door closers.  This arm has had a bunch of different factory numbers over the years, including 1620-1, 7701-1 and 400-1.

The Panic Hex Key 7/32" is used on Dor-O-Matic Falcon and Sargent Panic Hardware to name a few.  The key measures 7/32" hex by 3-1/4" long.   Also known as a Hex Key, Dog Key, Allen Key or Dogging Key.

The Dorma Rim Device Strike 463 is used on the 8300, 8300F, 9300 and 9300F exit devices. Mounting screws included.

The Norton Door Closer 1601 has been around for the past 40 years.  With the advent of aluminum framed glass doors, Norton was on for the first manufactures to come up with a narrow stile door closer.  Because of this, it is still one of the most popular door closer model out there.  It is a Grade 1 closer and has adjustable closing, latching, and back check speeds.  The model we ship also has adjustable spring tension to work on a wider range of doors.  The hole spacing is 3/4” x 9-1/16”.

Older models may be stamped with Scoville or Eaton, which are the companies that used to own Norton.  We sometimes find 20-1624-4001, or 20-1604-4001 stamped on the back of the closer. If your door closer is stamped 20-1603-4001 or 20-1623-4001, you might want to double check the hole spacing. The 20-1603-4001 usually has a hole spacing of 3/4" x 8-3/16", you could use the International Door Closer 853 as a replacement.

LCN Door Closer Fusible Link Arm

Adjustable nut allows door closer arm to lock when the preselect position is reached. Fusible Link will hold door until heat melts the "Link" and then the door will shut. Used on Fire Doors to control a spreading fire.

Specify your current closers model number when ordering.
Not all of the LCN closers have the same shape spindle on the door closer
cylinder. The LCN Part #'s on this Fusible Link Arm is: 4010-3049FL, 4020-3049FL, 4110-3049FL

International 8052-TP Delayed Action Door Closer

The International 8052-TP Delayed Action Door Closer is same  as the 8050 Series or 8051-TP, but with Delayed Action. Delayed Action is a function of the Door Closer hydraulic cylinder. The hydraulic cylinder will hold the door open for up to 30 seconds to allow physically challenged individuals time to get through the door way. Adjustable spring power with separate valves for closing, latching and delay

International Door Closer model # 8052-TP DU or 8052-TP AL

The International Door Closer 526 Parallel Arm Bracket is one of two they offer.  This bracket us usually used with the Hold Open Arm 522, and is stronger than the 525 Parallel Arm bracket that ships with the closers.

The Von Duprin Panic Device 210NL Trim is part of there economy series trims.  This trim iis a pull with a key cylinder hole, it will line up with the chassis mounting holes of the 22 and 2227 devices.  The key locks and unlocks the exit device.  The plate measures 5-3/8" x 4-25/32" x 3/32", with a projection of 1-31/32".

The Jackson Door Closer Center Hung Arm 20-2085 is for double acting center hung doors for use with the 20-330 concealed closer.  The arm measures 9-1/2" long by 1-3/8" wide by 19/32" thick.

Jackson Part # 20-2085

Our Dark Bronze Oil Rubbed Bronze Door Kick Plates (US10B) are a baked on powder coat on brass base metal. We switched to this finish 5 years ago due to color variations in the US10B Oil Rubbed Bronze finishes. The US version was much lighter than the Asian version, which is where most the door hardware is made these days. The cost of Oil Rubbing was going through the roof and many platers were having issue with the environmental impact and EPA regulations in the United States. Our Oil Rubbed Kick Plates are 16 gauge (.050″) thick.

Kick Plates can be mounted by screws, two way tape, and they can be glued to the door. Our plates come standard with screw mounting. The manufacture sends #6 x 5/8″ Oval Phillips Undercut dark brown screw. The number of holes on the screw mounted plates is determined by an industry wide standardize template. A height between 6-10″ will have 10 holes for plates up to 33″ and 12 holes for plates between 33 and 40″.

You can order these plates with tape mounting, but on larger plates, it is not recommended. Large plates are too heavy and they most likely will not stick. We can also ship them with no holes, if you want to drill your own holes. You can glue them on, I would recommend liquid nails, and some C Clamps with the door on saw horses.

Custom sizes available starting around $0.49 per square inch depending quantity

Please allow 2 week shipping time

The Dor-o-Matic Falcon Actuator Arm Bracket Assembly is used on the 1690 and 2390 devices.

Doromatic part # BRKTASY.107 or PB338

Dor-o-Matic 1690 Repair Parts Breakdown

Von Duprin 050532 EL Dogging Rod 4'

The EL Dogging Rod connects the Solenoid to the Push Bar Bracket. The 4' designates the model it is used on. The 4' model is used on doors 48" down to 36". The Rod measures roughly 17" long. This rod is used on the 33A, 35A, 98 and 99 Exit Devices. Use part # G050531 if your door is equal or under 36".

Von Duprin Part # 050532, Old Part # 110008

The Detex V40 ValueSeries Rim Device is their economical exit device.  The device only comes in powder coated aluminum or black. The standard 36 inch model measures 32-7/8 inches wide.  The unit ships with strike all the mounting screws and a hex dog key.

Dor-o-Matic Lock stile Push Bar End Cap

The Dor-o-Matic -Falcon 1690/1790 Lock Stile Push Bar End Cap PB318 is used on the 1690 concealed vertical rod and 1790 rim device.This is the end cap for the push bar and is located closest to the active housing.  Doromatic part # ECAP.129 or PB318

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

Von Duprin 3327A Exit Device Only

3327A and 3527A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. 3327A/3527A fits door stiles as narrow as 1-3/4". Newly designed device has a one piece center case cover.

Norton Unitrol Non Hold Open Arm

Used on the Norton 1600, 8000 and 7500 door closers. Parallel Arm mounting only.

Norton # Door Size
6100-11 28-32"
6100-13 33-41"
6100-14 42-48"

Corbin Russwin ED4200S Latch Assembly

The Corbin Russwin ED4200S 681F618 Latch Assembly is used on the Narrow Stile SecureBolt Exit Device.  The difference between the ED5200S and ED4200S Latch Assembly is the location of the Hub.  Hub on the ED4200S Latch Assembly is located on the center line of the Assembly Mounting Screws.

Corbin Russwin Part # 651F618

The Hub Position on this Latch is the ED4200

The Door Push Plate 59 has the classic half round design.  The plate measure 7-1/2" wide and 15" tall, and is constructed of 16 gauge metal, which is .050" thick.  This plate is similar to the GPH60 (Push Plate 59), but is a 1/2" more narrow and 1" shorter.  This plate ships with the matching finish screws.

Finishes

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

The LCN Door Closer Cush-n-Stop Arm 3077CNS is a Non-handed parallel arm that features solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077CNS, 1460-3077CNS, 4040-3077CNS, 4110-3077CNS.
